DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank

Büyük resim : DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CLW9522xc
Model numarası:	ASME,CCC,SGS,BV

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak Paket, Toplu Gemi, Rulo-Rulo
Teslim süresi:	Mevduat aldıktan sonra 20 ~ 30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Boyut Seçeneği:	10mt,15mt,20mt,30mt,40mt,50mt,60mt,	Malzeme:	Karbon Çelik Q345R
Doldurma Aracı:	Propan, bütan	Tank Çapı:	DN2700mm
Tasarım Basıncı::	1.71Mpa	Seviye göstergesi:	Rotogage veya Megnatik Tip
Tank Vanaları:	Kesme Vanası, İğne Vana, Emniyet Ventili, Geri Dönüş Vanası vb.	Logo:	istek başına
Garanti:	Bir yıl	Şekil:	Evet
Kabuk kalınlığı:	14 mm	Uç Kalınlığı:	16 mm
Korozyon ödeneği:	1 mm	Kullanım:	LPG Gaz Depolama, İstasyon Tankı
Yaşam süresi:	20 yıl	Hidrolik test basıncı:	2,21 MPa 22,1 bar
Vurgulamak:	50000 Liters LPG Storage Tank , Q345R LPG Storage Tank , DN2700mm lpg gas tank

50m3 25tons LPG Cooking Gas Storage Tank 50000Liters LPG Storage Tank for Cambodia

Product Description
1. Storage medium of storage tanks : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of storage tanks : 5m³~200m³,2ton~100tons
3. Manufacturing standards of storage tanks : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for storage tanks equipments as follows,
lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

Specification of 25tons cooking gas tank

Parameter of 25tons storage tanks
ITEM		PARAMETER	ITEM		PARAMETER
Volume		50000liters	Thickness of Shell		14mm
Tank Material		Q345R	Thickness of End plate		16mm
Overall Size		918227283318mm	Tank Net Weight		10640kg
Tank Diameter		2700mm	Loading Capacity		19950kg
Design Pressure		1.77Mpa	Gas Density		420kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20ºC~60ºC	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Life time		15 years
Accessories
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-80	Stop Valve DN80			1		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-80	Safety Valve DN80			1		RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40ºC~60ºC

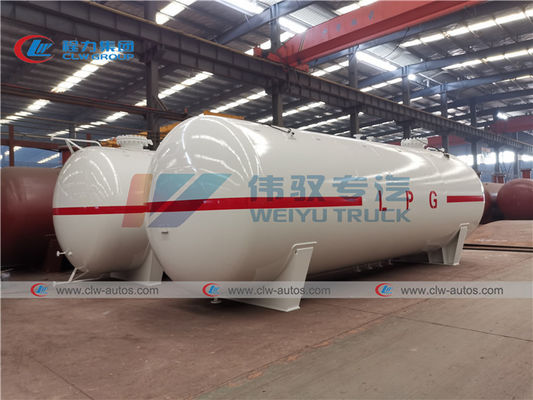

Production in Factory:

DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank 0

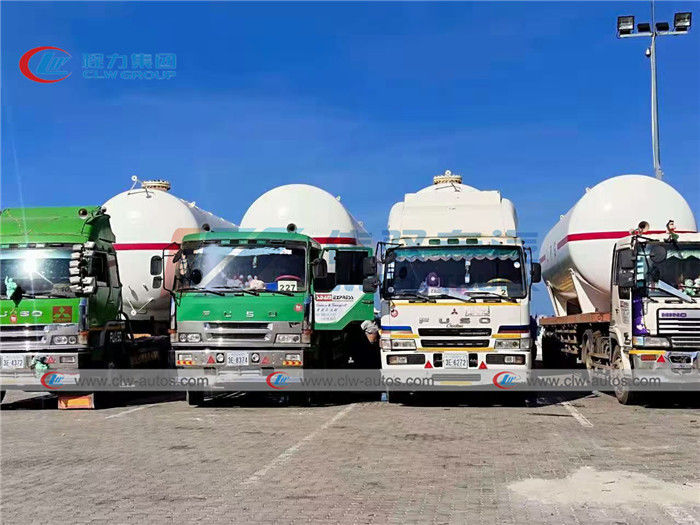

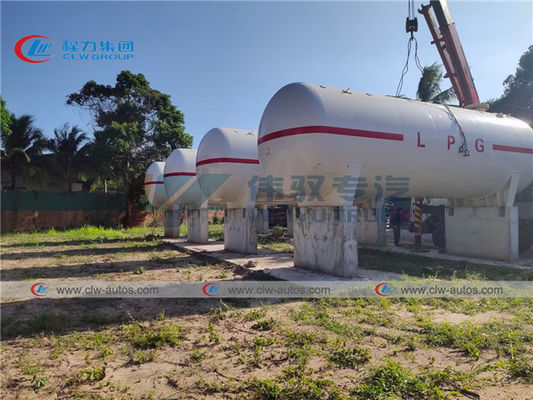

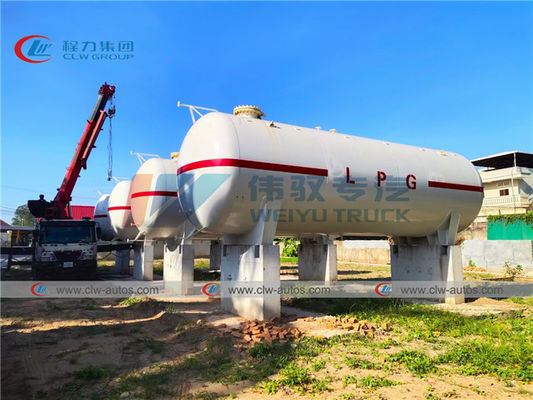

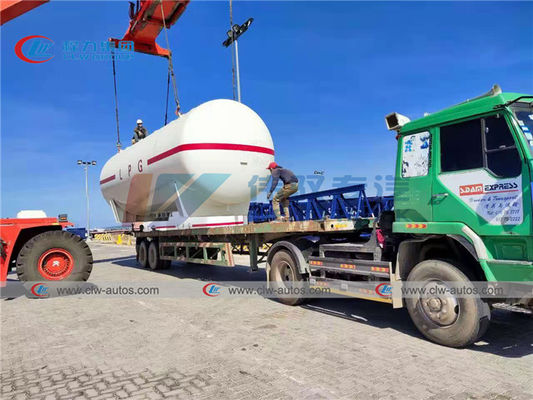

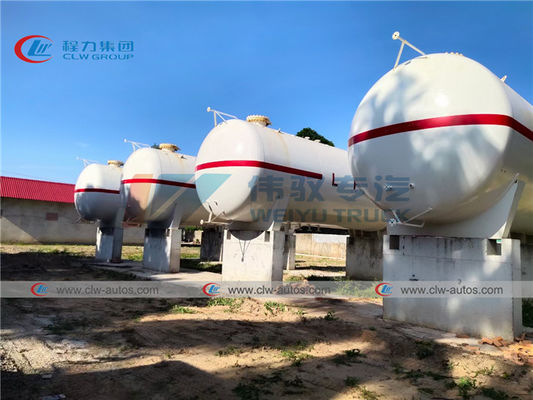

Arrived in Cambodia

FAQ
Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
