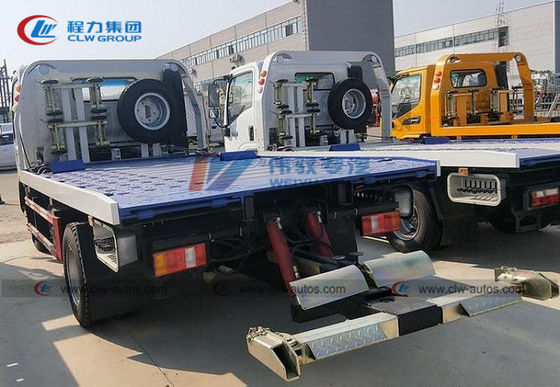

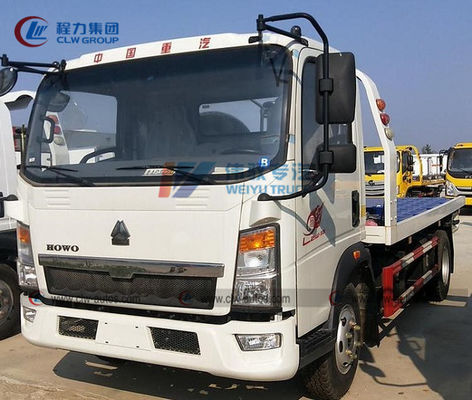

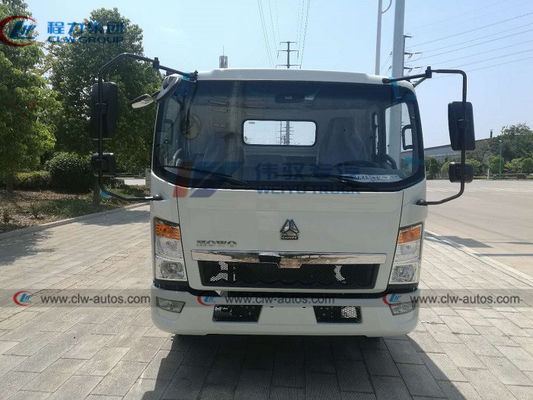

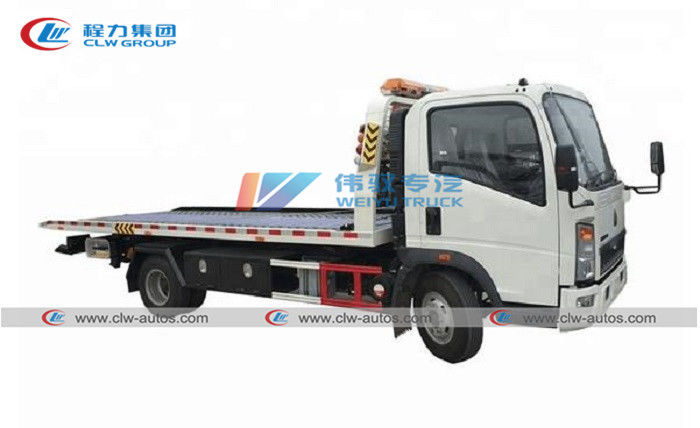

Popular Chinese Sinotruk HOWO 4X2 Platform Towing Truck 4t Flatbed Road Rescue Wrecker Truck
Product Description
1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.
Product Specification
| General Technical Parameters |
| Overall Dimension |
8490x2350x2410 (mm) |
| Gross Vehicle Weight |
9410kg |
| Curb Weight |
56700kg |
| Chassis Specification |
| Chassis Parameters |
Chassis Brand |
Howo |
| Cabin |
Single, Right or Left Hand Driving |
| Engine |
Model |
4 Cylinders |
| Emission Standard |
EURO 3 |
| Displacement |
5.19L |
| Fuel Type |
Diesel |
| Gearbox |
6 Forward & 1 Reverse Gear |
| Front and Rear Axle Load |
4T/7T |
| Wheel Base |
3800(mm) |
| Overhang( Front/Rear) |
1015/2450(mm) |
| Angle(Approach/departure) |
24/9(°) |
| Brake System |
Air Brake |
| Steering Gear |
Power Assistant |
| Tire |
8.25-16, 6 Pieces with 1 Spare Tire |
| Maximum Speed |
110(km/h) |
| Superstructure |
| Flatbed |
Dimensions |
5600x2350 (mm) |
| Max. Loading Weight |
4000(kg) |
| Operating Stroke |
2700 (mm) |
| Min. Angle of Slope |
8(°) |
| Platform Height from the Ground |
1070(mm) |
| Winch |
Quantity |
1pc |
| Winch Rating Pulling Capacity |
4000 (kg) |
| Length of Steel Cable |
25 (m) |
| Hoisting Organ |
Rating Under-Pulling Capacity |
6000 (kg) |
| Rating Under-Hoisting Capacity |
2000 (kg) |
| Fully Extended Max Under-Hoisting Capacity |
1600 (kg) |
| Max Under-Hoist Useful Length |
1640 (mm) |
| Remarks |
1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars |
Reference Photos
| Item No. |
Name |
| 1 |
chassis |
| 2 |
Warning lamp |
| 3 |
Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 |
Winch and steel rope |
| 5 |
Loading plate |
| 6 |
Side signal lamp |
| 7 |
Chain hook |
| 8 |
Wheel lift |
| 9 |
“L” bracket |
| 10 |
Operation and hydraulic system |
| 11 |
Auxiliary wheel |
| 12 |
Side guard rail |
| 13 |
Tool box and accessories |
| 14 |
PTO and oil pump |
| 15 |
Witch and operation handle of PTO |
FAQ
Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
