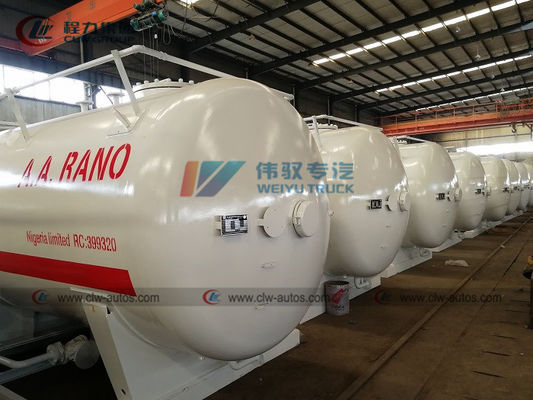

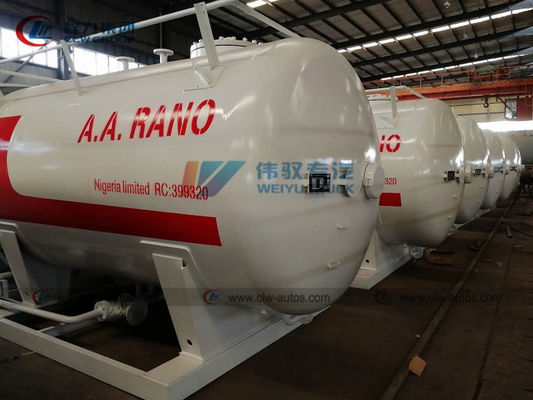

10000L SA516 Liquefied Petroleum Gas Storage Tank

Büyük resim : 10000L SA516 Liquefied Petroleum Gas Storage Tank

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, ASME
Model numarası:	CLW1020

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	çıplak paket
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	200 Adet/Ay

İletişim

Detaylı ürün tanımı

Tanker hacmi:	10CBM/10000Litre	Tank malzemesi:	Q345R/SA516
Tasarım baskısı:	1,71MPa 1,77MPa 17,1bar, 17,7bar	Yükleme malzemesi:	Propan/sıvılaştırılmış petrol gazı/LPG
Orta Yoğunluk:	420Kg/m³, 450Kg/m³, 460Kg/m³, 480Kg/m³, 500Kg/m³, 520Kg/m³, 540Kg/m.	Mekanik özellik testi:	Çekme, Mukavemet, Darbe testi
Kabuk ve Kafa Kalınlığı:	10mm, 12mm	Satış Sonrası Hizmet:	Yedek parça temini ve mühendis desteği
Renk ve logo:	Müşteri isteği olarak	Garanti:	1 yıl
Vurgulamak:	10000L Gas Storage Tank , SA516 Gas Storage Tank , 10000l lpg skid station

LPG 10, 000L/10cbm 5mt Dispenser Tanker Cooking Auto Gas Skid Station for Africa

Product Description

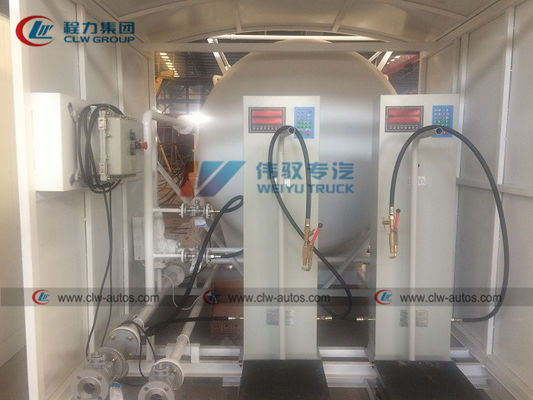

Cylinder Car Refilling Tanker 10Ton 20Ton LPG Skid Filling Station
1. LPG Skid Station for cooking gas refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector.

Product Specifications

Accessories list of lpg tank
Parts No	Size	Parts Name	Model No.
a	DN50	Cut-off Valve for Drain Outlet	J41N-2.5-50
b	DN50	Cut-off Valve for Liquid Phase Outlet	J41N-2.5-80
c1	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50
c2	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50
d	DN50	Cut-off Valve for Liquid Inlet	J41N-2.5-50
i	DN50	Cut-off Valve for Air Drain Outlet	J41N-2.5-50
f1 / f2	DN25	Magnetic Level Gauge	J41N-2.5-25
e	M33*2	Thermometer	WTQ-280
g	M20*1.5	Pressure Meter	Y-100T
/	/	Ball floating Level Meter	HG21584-95
h	DN80	Safety Valve	A42F-25
j	DN450	Manhole	HG20592-WN
Remark	The f1, f2 is the Magnetic Level Gauge. But the Ball Floating Level Meter is recommended for you.

Accessories list of skid station
Item name	Model Number	Quantity
CORKEN pump and ABB motor	Z2000EGAEE	1 Piece
Digital filing scale	/	4 Pieces
Safety Reverse Valve	AH42F-25DN25	1 Piece
Check Valve	H42N-40DN50	2 Pieces
Pipe Safety Valve	A21F-25 DN15	1 Piece
Discharging pipe	L=4M DN50/DN25	1 Piece
Shock-absorbing Tube	L=500mm DN50	2 Pieces
Filling Gun pipe	L=2M	3 Pieces
Elbow Cap	DN65	2 Pieces
Elbow Cap	DN50	10 Pieces
Alarm system	QJ-D-99F	2 Pieces
Flange	2.5MPaDN65	1 Piece
Flange	2.5MPaDN50	50 Pieces
Flange	2.5MPaDN32	1 Piece
Flange	2.5MPaDN25	8 Pieces
Flange	2.5MPaDN15	20 Pieces
Metal gasket	DN65	5 Pieces
Metal gasket	DN50	80 Pieces
Metal gasket	DN32	2 Pieces
Metal gasket	DN25	10 Pieces
Metal gasket	DN20	2 Pieces
Metal gasket	DN15	30 Pieces
8.8 degree Bolt	16*70	300 Pieces
8.8 degree Bolt	12*55	100 Pieces
Bottom Base	/	1 Piece

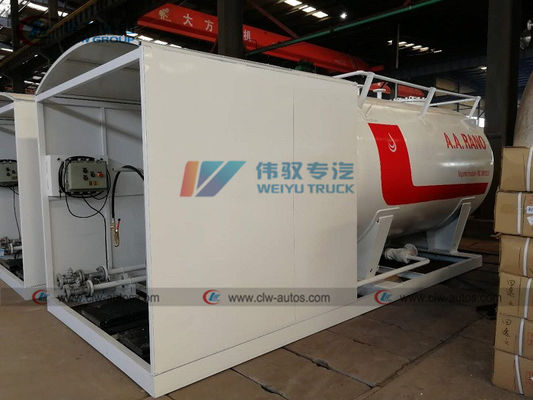

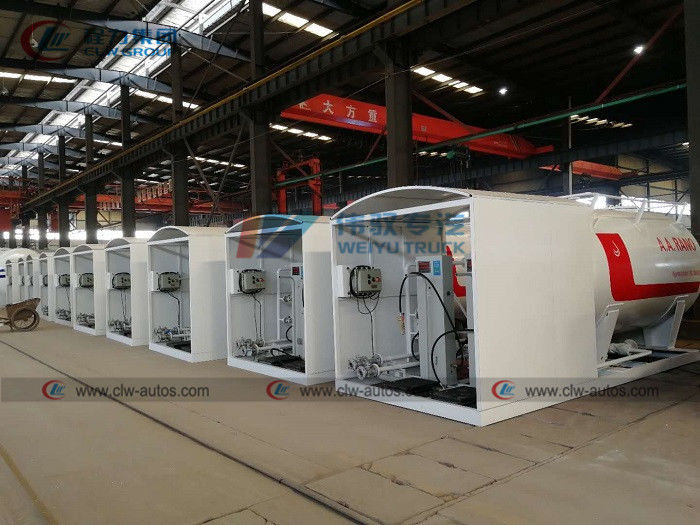

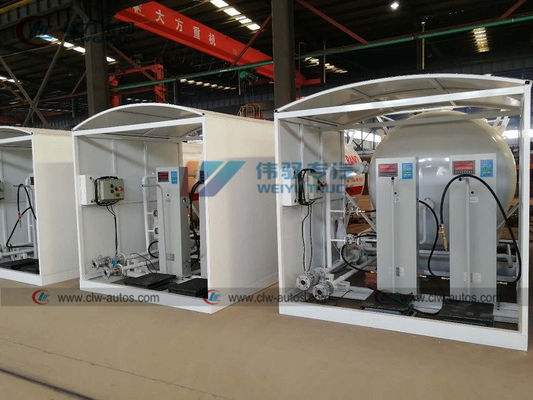

Reference Photos

Our Service

1)Quick feedback to solve your questions;
2)Professional engineering and production team;
3)Related Accessories and spare parts offered,no future worries;
4)Regular customer after-sale visiting;
5)Free technical staff training and guidance;
6)Reasonable price and good quality;
7)Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
