Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat

Büyük resim : Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC, SGS, BV, ASME
Model numarası:	CLW5056A

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

kamyonet malzemesi:	İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük	Van Dış Kalınlığı:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
Van Ara Yatak Kalınlığı:	80mm 100mm 120mm	Van İç Kalınlığı:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
yükleme ağırlığı:	6-8 Ton	Buzdolabı Modeli:	Thermo King, Taşıyıcı, Hanxue, Huatai, Hana
Şasi markası:	Isuzu, Dongfeng, Foton, Howo vb.	Sürücü modeli:	4x2/6x4/8x4; Üst yapı büyüklüğüne göre
Tekerlek tabanı:	3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm	Logo ve Resim:	Müşterinin isteğine göre
Garanti:	1 yıl
Vurgulamak:	6T Refrigerated Transport Trucks , 8T Refrigerated Transport Trucks , Foton 4×2 Refrigerated Box Truck

Foton 6t-8tons Refrigerated Refrigerator with America Thermo King or Carrier Freezer Cooling Truck

Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

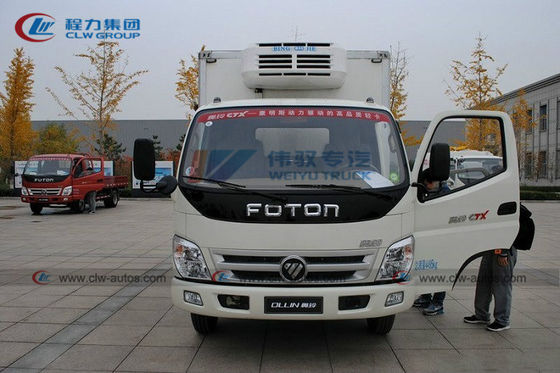

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 0

Reference Photos

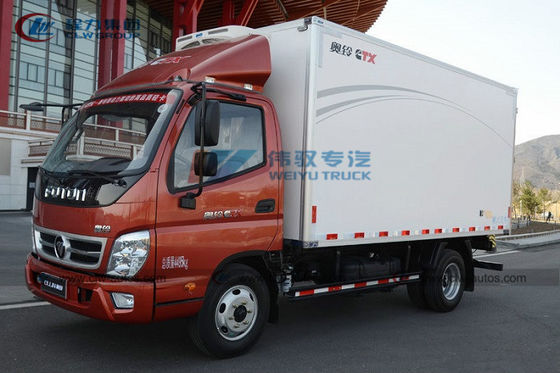

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 1

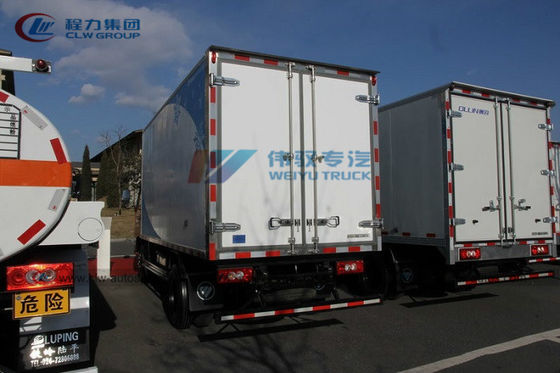

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 2

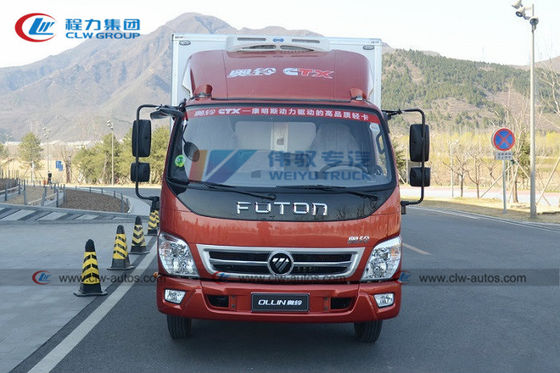

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 3

Product Specification

Vehicle
Chassis	FOTON
Cabin	2 Passengers
Drive	4 × 2 Left-hand driving or Right-hand driving
Wheelbase	3360 mm
Gross vehicle weight	8900 kg
Tyre	Size	8.25-16
	Quantity	6+1 Spare
Brake	Service	Front disc/Rear drum hydraulic brake
	Parking	Central drum brake
	Auxiliary	Exhaust brake
	System	ABS (anti-lock brake system)
Transmission	Gear	6-Speed (manual)
	Steering	Power-assisted
	Auxiliary	Clutch booster
Engine	Fuel	Diesel
	Intake	Turbocharged
	Form	Water cooling
	Cylinder	4 (In-line)
	Displacement	3922 ml (EURO IV)
	Max. Power	130 hp (95 kw)
Bodywork
Refrigerated Van	Dimension (internal)	507019701920 mm (LWH)
	Thickness	Roof	80 mm
		Wall	80 mm
		Floor	80 mm
	Material	Inner	Glass fiber reinforced plastics (GFRP)
		Outer
	Insulation	Material	Polyurethane foam (PUF)
		Thickness	8 mm
	Assembly	Floor	Non-slip checkered plate
		Door/lock	Stainless steel
	Seal	Industrial-purpose rubber
Refrigerator unit	Brand	KAILI
	Model	KL-780
	Temperature	-18~0ºC
	Refrigerants	Model	R404-A
		Charge	1.3 kg
	Refrigeration capacity
	Driven by Truck engine	0ºC	-18ºC
		3430 w	1920 w
	Compressor
	Air volume	1500 m³/h
	Weight (Approximation)
	Evaporator	16.5 kg
	Condenser	26.9 kg
	Dimension
	Evaporator	985585180 mm (LWH)
	Condenser	925430300 mm (LWH)
	Accessories
	Defrosting	Hot gas defrost (Automatically)
	Adjustment device	Electronic digital display
	Safety protect	High and low pressure switch

Optional Parts

Different Capacities of Refrigerator Truck

Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
