HOWO 5000L Self Compressed Garbage Compactor Truck

Büyük resim : HOWO 5000L Self Compressed Garbage Compactor Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO, BV, SGS
Model numarası:	CLW5107CZ

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	1000 birim/ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Isuzu, Dongfeng, Foton, Sinotruk Howo, JAC vb.	Kamp Etki Oranı:	0,6-0,8 Ton/m3
Sıkıştırma oranı:	3-4	Depo Kalınlığı:	4 mm
Sıkıştırma Döngüsü Süresi:	≤15S	Çöpü Boşaltma Süresi:	≤23 sn
Hidrolik basınç:	16MPA	Çöp Kutusu Kalınlığı:	Yan 3mm, Alt 4mm, Karbon Çelik-Q345A
Çöp kutusu Hacmi:	5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, vb.	Çöp Kutusu Kapasitesi:	3ton, 4ton, 5ton, 6ton, 7ton, 8ton, 9ton vb.
Kirli Su Tankı Hacmi:	0.2 metreküp	Hoper hacmi:	0.8CBM
Kontrol yolu:	Manuel ve elektrik kontrolü	Logo ve Resim:	Müşterinin talebine göre
Teslim süresi:	30-35 iş günü	Garanti:	1 yıl
Vurgulamak:	Self Compressed Garbage Compactor Truck , HOWO Garbage Compactor Truck , 5000L Waste Compactor Truck

HOWO 5cbm 5000L Sanitation Self- Compressed 3tons Garbage Compactor Truck

Product Description

1. Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
2. Easy Full Automatic Operation: Computer control system for loading and unloading operations.
3. One Person Operation: Reducing sanitation working, greatly improves the working environment.
4. Double Operation System: Computer control system and manual operation greatly improves the vehicle usage rate.

Product Specifications

Howo 5CBM Garbage Compactor Truck
Overall Dimension	622020502570 mm	Gross Vehicle Weight		7360 kg
Curb Weight	5400 kg	Loading Weight		1830 kg
Wheel Base	3308 mm	Front / Rear Axle		5000 kg / 10000kg
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine
Engine horsepower	102HP, EURO II
Max Driving Speed	90 km/h
Gear Box	5 Forward Gear, 1 Reverse Gear,
Tire	7.00R16 (6 pieces with one spare)
Garbage Bin	Capacity		6CBM
	Material		4mm Carbon Steel for Garbage Bin Body
	Design		Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

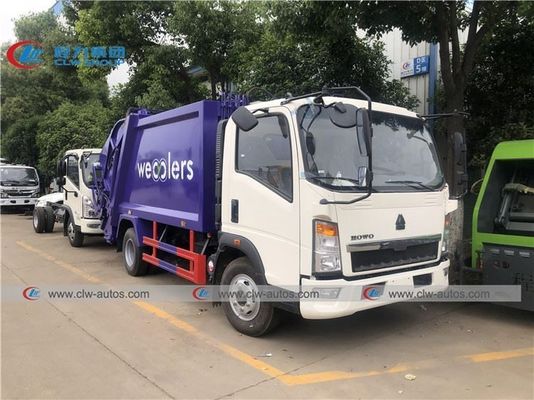

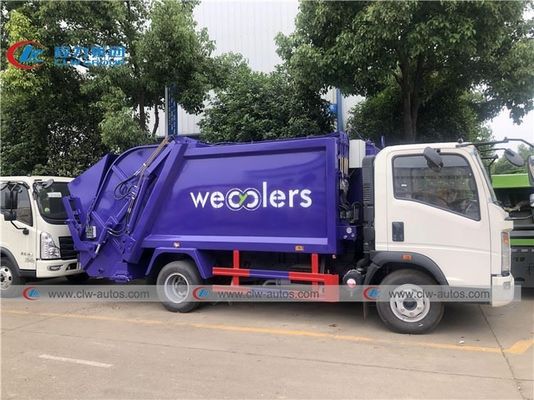

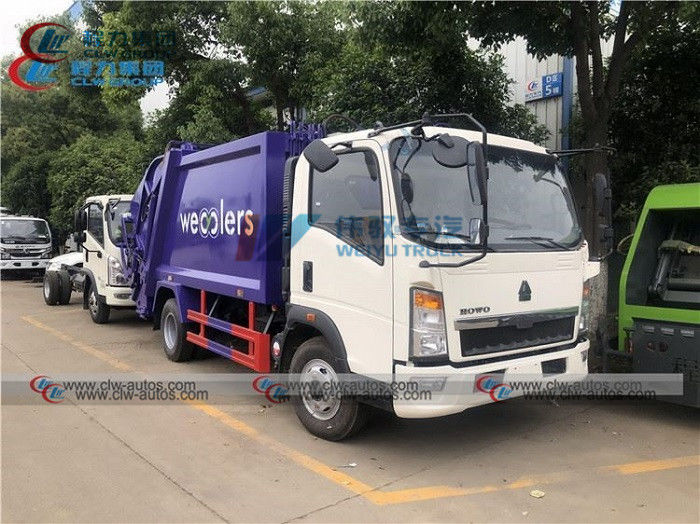

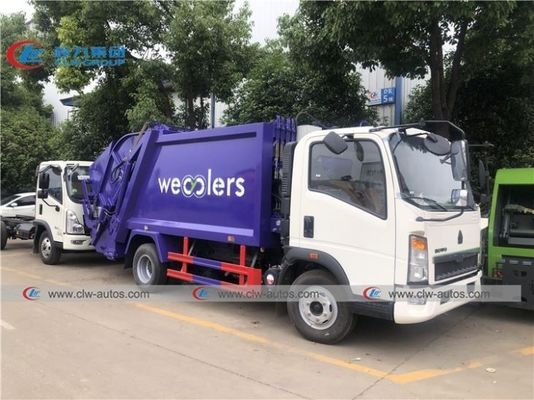

Reference Photos

HOWO 5000L Self Compressed Garbage Compactor Truck 0

HOWO 5000L Self Compressed Garbage Compactor Truck 1

HOWO 5000L Self Compressed Garbage Compactor Truck 2

Structure Diagram

HOWO 5000L Self Compressed Garbage Compactor Truck 3

HOWO 5000L Self Compressed Garbage Compactor Truck 4

Main Details

HOWO 5000L Self Compressed Garbage Compactor Truck 5

HOWO 5000L Self Compressed Garbage Compactor Truck 6

HOWO 5000L Self Compressed Garbage Compactor Truck 7

Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for garbage truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
