JAC 4X2 Flatbed Tow Truck With Q235A Carbon Steel Body

Büyük resim : JAC 4X2 Flatbed Tow Truck With Q235A Carbon Steel Body

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC SGS BV
Model numarası:	CLW5032

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Hesapta depozito alındıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Aylık 500 Adet

İletişim

Detaylı ürün tanımı

Şasi markası:	DONGFENG,ISUZU,FAW,HOWO,JAC,JMC	Çekme kapasitesi:	4ton,5ton,5ton,,4t,5t,6ton,6t,6ton
Renk:	Beyaz, sarı, mavi özelleştirilmiş olarak	Direksiyon:	LHD, RHD, sağdan direksiyonlu, soldan direksiyonlu
MOTOR:	115hp,130hp	Tamirci Tipi:	Bir-iki-bir-bir-bir-çekiyor
Vurgulamak:	4X2 Flatbed Tow Truck , JAC Flatbed Tow Truck , Q235A Carbon Steel Wrecker Tow Truck

Hot sale JAC 4x2 small wrecker truck flatbed tow truck for sale

Description

1) Purpose of flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of flatbed tow truck:Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of flatbed tow truck:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of flatbed tow truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton

Specification

Item No.	Parameters
Overall Dimension	7370X2300X2300 mm
Driving ModelL	LHD or RHD
Cabin	2~3 persons
Gross Vehicle Weight	8280 kg
Curb Weight	4850 kg
Loading Weight	4000Kg
Wheel Base	3815,3365,4150 mm
Front/rear Tread	1210/2470 mm
Approach/Departure Angle	24/12 degree
Front Axle	2980 kg
Rear Axle	5300 kg
Engine	CY4102-CE4C
Engine horsepower	91kw/125hp
Displacement	3856mL (Diesel)
Max Driving Speed	95 km/h
Tire	7.50R16 14PR( 7 pieces)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	4000kg
Loading Plate Dimensions	5200*2300mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	4000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
“L” bracket no.	1
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

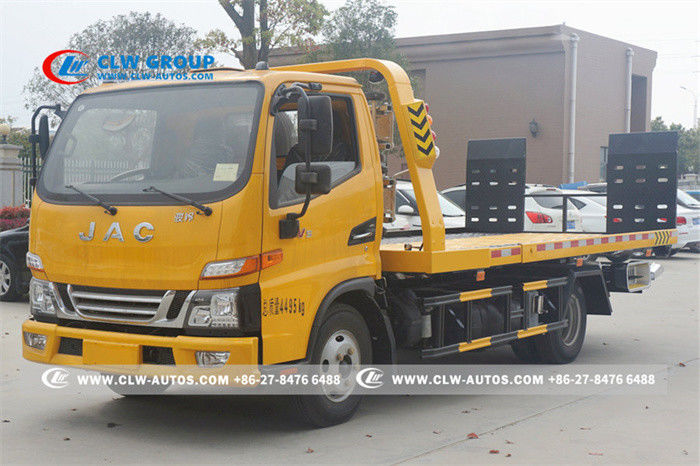

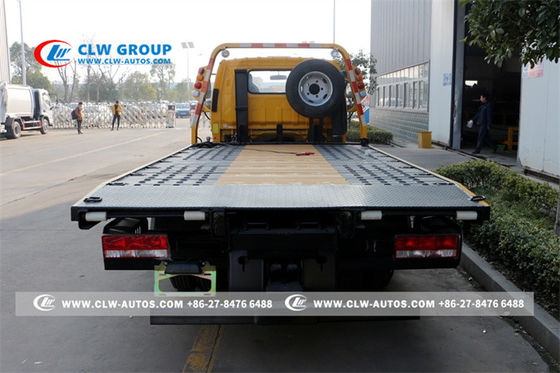

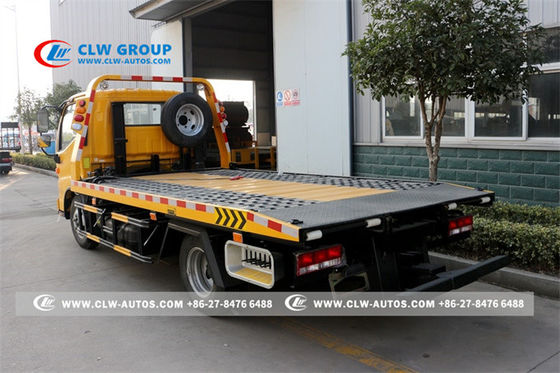

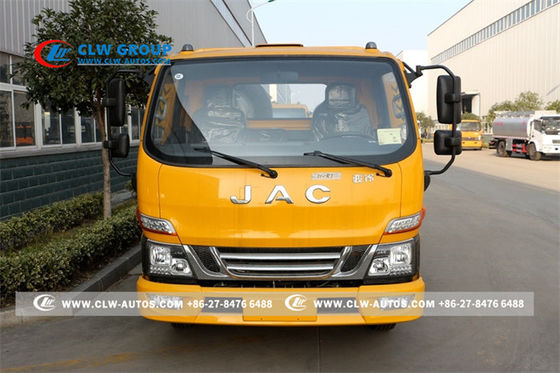

Reference photos

Parts diagram

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Factory overview

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
