3 Axle 55000liters 40tons Fuel Transport Tank Semi-Trailer oil tanker trailer
Description:
Fuel tank semi-trailer(also called oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, semi tanker trailer, stainless steel oil tanker striler, carbon steel trailer tank fuel) is used to transport oil,diesel,gasoline,kerosene,etc.
Fuel tank can be divided into many compartments to load and transport different types of fuels, lubricant, crude oil, alcohol ...
Advantages:
1. Nice shap, rational structure
2. High class skeleton and tank material
3. High-intensity kingpin and landing gears
4. Axles are of top chinese brand FUWA or German brand BPW
5. Massive, durable, long serivce life.
Specifications
| 55,000Liters 3-axle fuel Tank Semi-trailer |
| Feature: |
Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid |
| Dimension(L*W*H): |
12700*2500*3750mm(55000Liters) |
| Material: |
Carbon Steel |
Stainless Steel |
Aluminum Alloy |
| Compartment: |
3-6 |
| Capacity(kgs): |
40-45tons |
| Tare weight(kgs): |
10,000-11,000kgs |
10,000-11,000kgs |
6,000-7,000kgs |
| Kingpin |
The world-famous JOST brand bolt-in/welded type 3.5"/2" |
| Landing gear |
JOST brand two-speed manual operation 19" |
| Tire size |
11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size |
8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle |
Original BPW-12T/ FUWA-13T |
| Leafs spring |
Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system |
One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. |
| Manhole: |
Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; |
| Discharge Valve |
Aluminum alloy discharge valve with cover |
| Foot Valve |
Pneumatic control DN80 aluminum alloy foot valves |
| Pneumatic Control system |
1set Pneumatic Control combined switch
1unit emergency switch
|
| Discharge Hose |
2 units 3"×6M factory PVC hose with quick coupling on both ends |
| Vapor Recovery & Overfill system |
Optional |
| Fire Extinguisher Carrier |
2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside |
| Electric system: |
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Prime & Topcoat painting |
S.A.2.5standard sandblasting; Zinc-rich & Polyurethane painting |
| We can build the trailers according to customer's design and requirement |

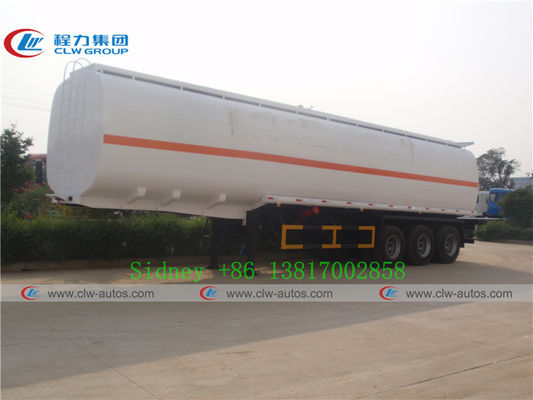

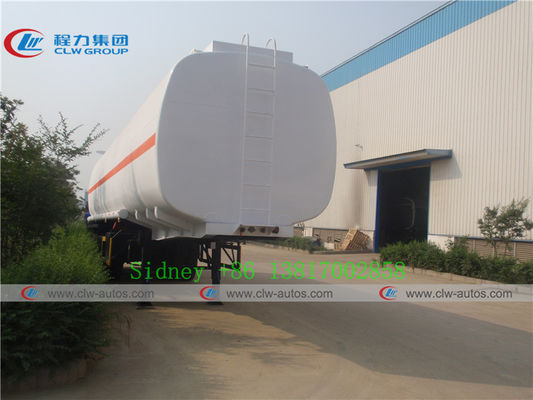

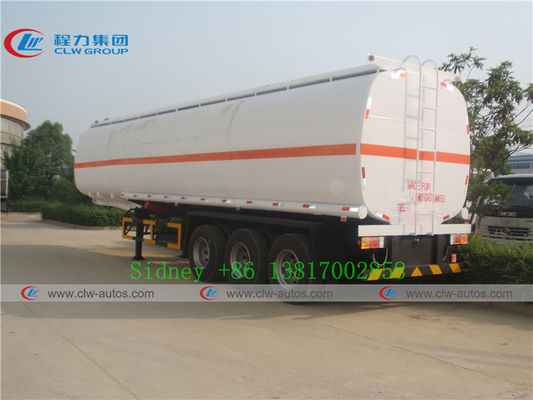

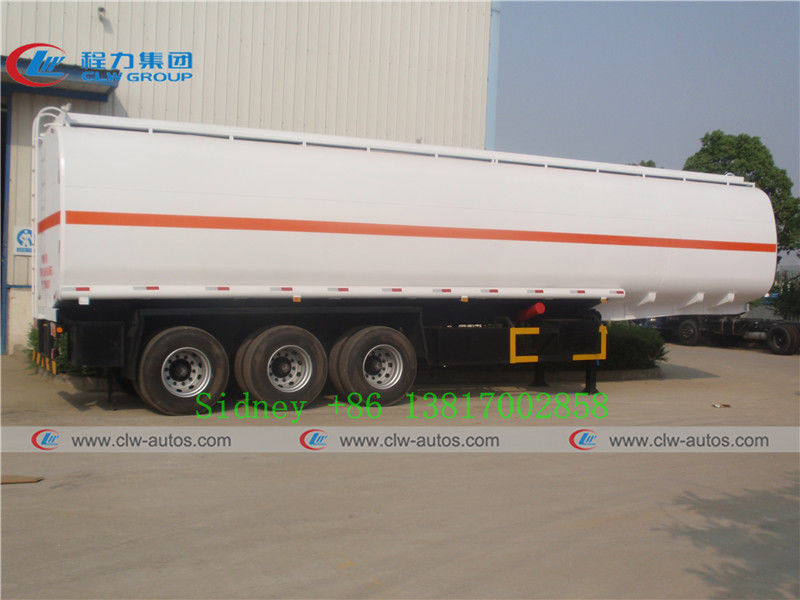

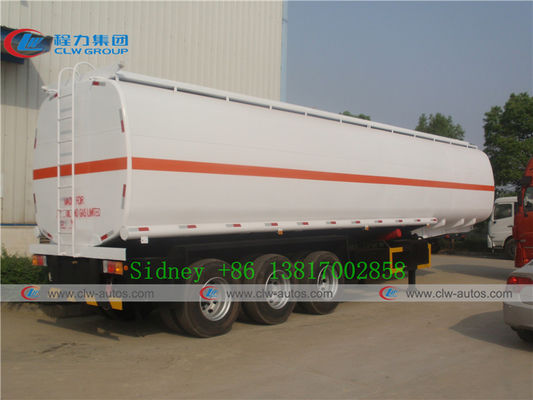

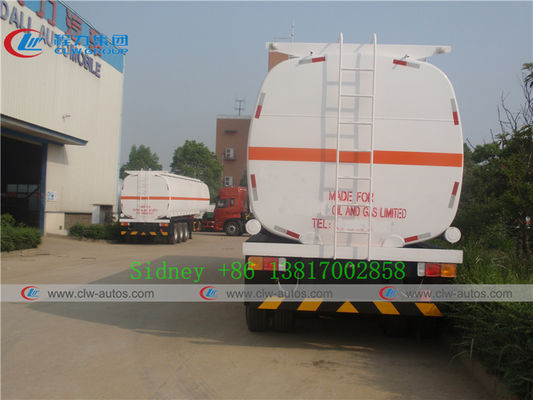

Reference Photos
Main Structure Diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
