40000Liters LPG Storage Tank Gas Tanker Bulk 40CBM 40m3 40000L 20tons LPG Gas Filling Tank for LPG Gas Plant
Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
LPG storage tanks are specialized products for the storage of liquefied petroleum gas, belonging to special equipment. The material includes Q345R & Q370R, and AS-ME standard material SA516M & SA517M. The shape is cylindrical with 2 end plates. Usually, the Shell is always thicker than the end plate according to the volume of the tank. Liquefied petroleum gas is a flammable and explosive medium, so the storage tank of this medium should be strictly required during installation and use. Operators must comply with operating specifications. The production flow includes computer controlled cutting, computer controlled rolling, submerged arc welding, assembly, nondestructive testing, heat treatment, hydraulic test pressure, blasting, and paint. Perfect raw material with certificates.
Product Specification;
Parameter of 40000liters 20 tons LPG Stationary Storage Tank
ITEM
PARAMETER
ITEM
PARAMETER
Volume
40cbm
Thickness of Shell
12mm
Tank Material
Q345R
Thickness of End plate
14mm
Overall Size
10040*2324*2914mm
Tank Net Weight
8630kg
Tank Diameter
2300mm
Loading Capacity
20000kg
Design Pressure
1.77Mpa
Gas Density
420kg/M3
Hydraulic Test Pressure
2.22Mpa
Corrosion Allowance
1mm
Design Temperature
-20ºC~60ºC
Heat Treatment
Bulk
Vapor Outlet
DN50
Gas Outlet
DN50
Life time
15 years
Accessories
Model
Item
Qty
Junction surface
J41N-2.5-50
Stop Valve DN50
6
RF
J41N-2.5-25
Stop Valve DN25
2
RF
J41N-2.5-100
Stop Valve DN100
1
RF
J24W-320-DN6
J24W Needle Valve M20*1.5
1
HG21584-95
Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5
1
RF
A42F-25-100
Safety Valve DN100
1
RF
Y-100T
Pressure Gauge M20*1.5 1.5degree 0~4Mpa
1
WTQ-280
Thermometer M33*2 2.5 degree
1
-40ºC~60ºC

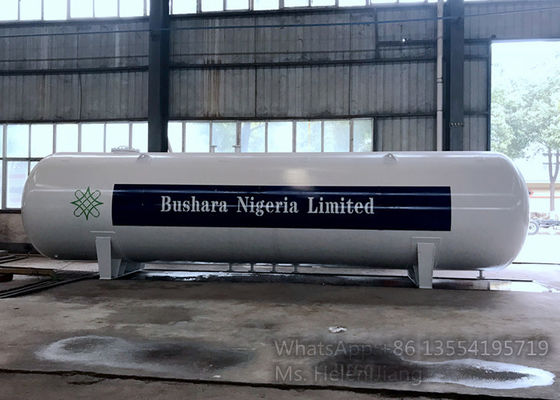

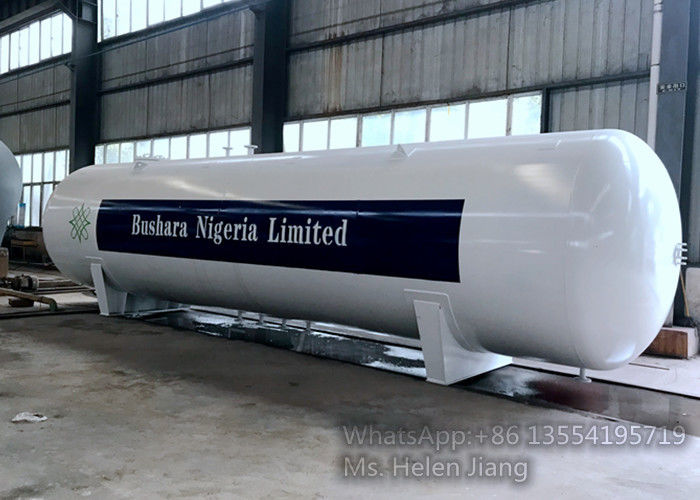

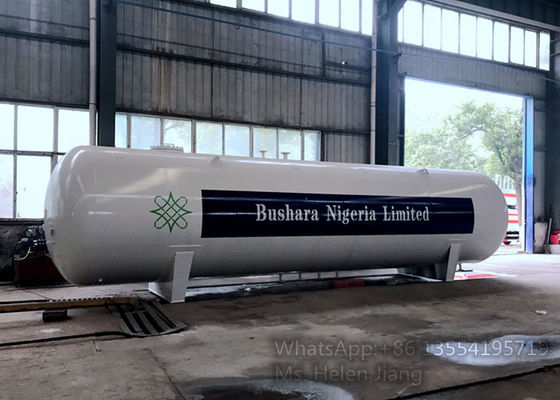

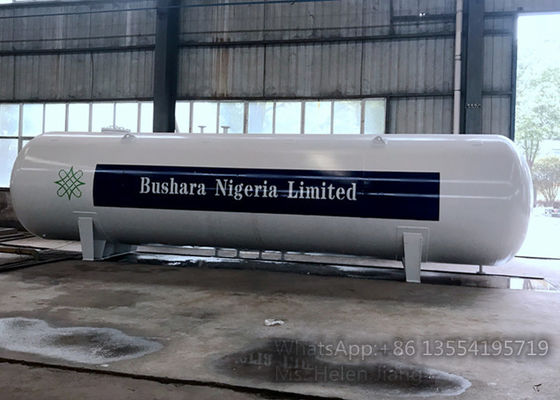

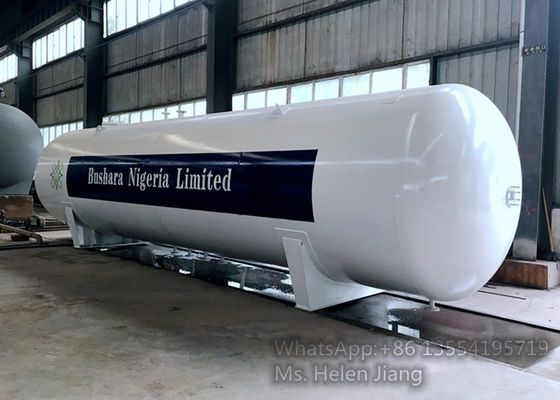

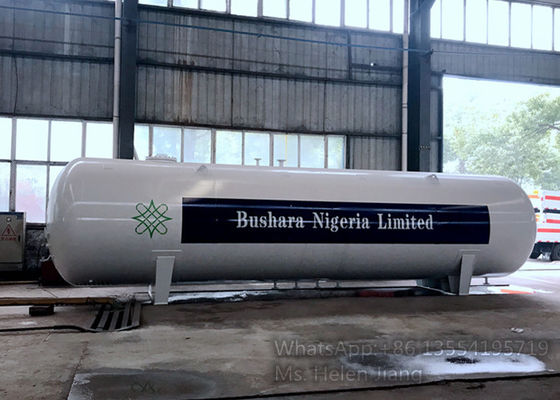

Product 40000Liters LPG storage tank's pictures:
More pictures of different sizes of LPG storage tank we produced:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
