HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa ÜrünlerSoğutmalı Kasalı Kamyon

Dongfeng model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Dongfeng model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck

Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck
Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck

Büyük resim :  Dongfeng model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: ISO, CCC, SGS, BV, ASME
Model numarası: CLW5421

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Howo, Foton, Isuzu, JMC, vb. kamyonet malzemesi: İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük
Van Dış Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm Van Ara Yatak Kalınlığı: 80mm 100mm 120mm
Van İç Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm yükleme ağırlığı: 3-5 ton
Buzdolabı Modeli: Thermo King, Taşıyıcı, Hanxue, Huatai, Bingli Şasi markası: Isuzu, Dongfeng, Foton, Howo vb.
Sürücü modeli: 4x2/6x4/8x4; Üst yapı büyüklüğüne göre Tekerlek tabanı: 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm
Teslim süresi: 30-35 iş günü Logo ve Resim: Müşterinin isteği olarak.
Garanti: 1 yıl
Vurgulamak:

Seafood Refrigerated Delivery Truck

,

Dongfeng 4X2 Refrigerated Delivery Truck

,

Dongfeng 4X2 Refrigerated Transport Trucks

Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck


Product Description
1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Refrigeration unit brand can be choosen, Thermo king (USA brand)Carrier (USA brand)Han Xue (Chinese brand) Han Ya (Chinese brand)...
4. Features: International chassis brand and International refrigerating unit brand for optional,
truck chassis available Dongfeng, Foton, Howo, JAC, JMC, ISUZU, FAW...

5. Refrigerated Truck payload available 1.5T, 2T, 3T, 5T, 7T, 10T, 12T, 20T...

Specification

Main parameters 4*2 dongfeng 5 ton small seafood refrigerated truck freezer truck
Product Dongfeng 4x2 refrigerated truck
Gross weight (kg) 6495 Overall dimensions(mm) 6995*2285*3250
Loading weight(kg) 2800 Cargo Dimension(mm) 5000*2050*2100
Curb weight(kg) 3500 Allowable passengers in cab 2,3
Approach/Departure Angle(°) 19/10 Front / rear suspension(mm) 1032/1663
Number of axles 2 Wheelbase (mm) 3,800
Axle-load(Kg) 2385/4110 Max speed(km/h) 90
Chassis parameters
Chassis model EQ1060TJ20D3
Brand Dongfeng Manufacturer Dongfeng Motors Co.Ltd
Overall dimensions 5820×1940×2080 Tire number 6
Approach/Departure Angle(°) 19/15 Tire specification 8.25-16
Number of Spring leafs 8/9+5,6/8+4 Front tread(mm) 1,506
Fuel type diesel Rear tread(mm) 1,466
Emission standard EuroIII
Engine model Manufacturer Displacement(ml) Power
CY4102-C3F Dongfeng Chaoyang Diesel Engine Co.,Ltd 3856 90KW/120HP
Others with air conditioner
Refrigerated Truck Body Specification
Refrigerated truck bodies adopt FRP sheet in two sides and Polyurethane foam
in the core. The truck bodies equipped with double rear door in back. Without side door.

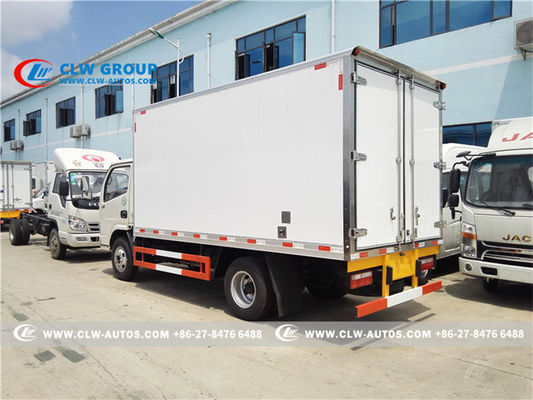

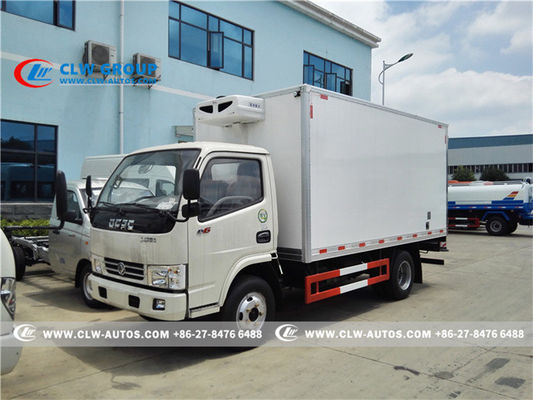

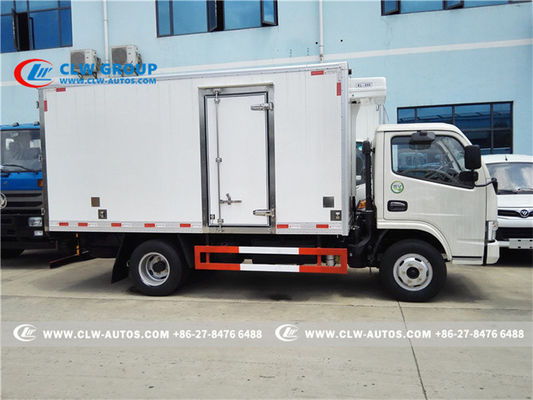

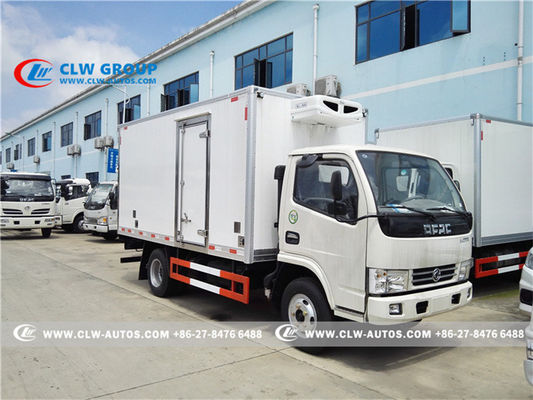

Product Show

Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck 0Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck 1





Dongfeng  model 5tons Small seafood refrigerated Transport Delivery and Cooler Freezer Refrigerator Van Truck 2



Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
