Dongfeng 6 Wheeler 190HP 8cbm Street Sweeper Vacuum Truck

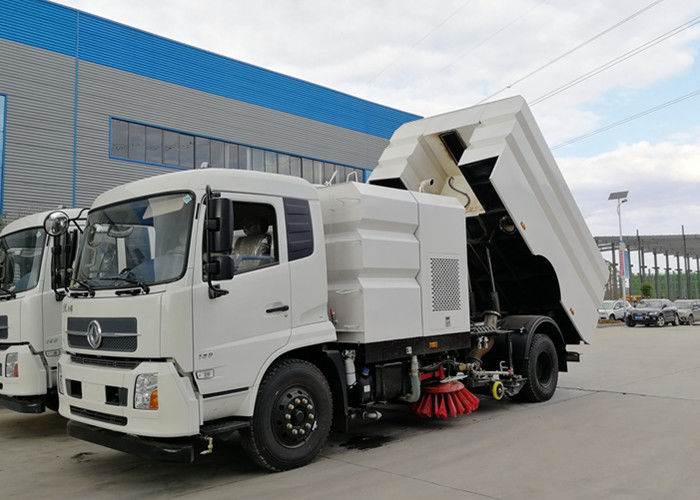

Büyük resim : Dongfeng 6 Wheeler 190HP 8cbm Street Sweeper Vacuum Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO9001
Model numarası:	CLW20210707

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 birim
Fiyat:	Negotiated
Ambalaj bilgileri:	Teslimattan önce çıplak mumlu
Teslim süresi:	35-40 İş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Ürün adı:	Yol Süpürme Aracı, Vakumlu Sokak temizliği	Kamyon Şasi Markası:	JMC, DONGFENG, HOWO, diğer Çin markası
Çöp Kovası Kapasitesi:	3m3, 5m3, 7m3, 8m3, 12m3	Gövde tipi:	Vakumlu Süpürücü Süpürme Süpürme Emme
Su Kabı:	4000 litre 4000L 4 metreküp 4 m3	Kamyon Tipi:	Su Dua Süpürgesi Tankı
Sürücü tipi:	Sağdan Direksiyon, Soldan Direksiyon	Sürücü modeli:	4X2, 6 Tekerlekli. 6X4, 10 Tekerlekli
toz haznesi:	5 metreküp 5m3 5000L	Şartname:	3000L, 4000L, 5000L, küçük boyutlar
Konteyner malzemesi:	Paslanmaz Çelik	Fırçalamak:	4 Fırça, Her Tarafta 1'er Adet
Vurgulamak:	8cbm Street Sweeper Vacuum Truck , 190HP Street Sweeper Vacuum Truck , Dongfeng 6 Wheeler Vacuum Sweeper Truck

Dongfeng 6-Wheel 190HP Vacuum Suction Street Cleaning 8cbm Road Washing Sweeper Truck

Goods Description:

1. Street Cleaner Truck for sale adopts Dongfeng chassis,adding auxiliary engine, fan, high pressure water pump, clean water tank, garbage bin, left and right vertical sweeper brusher, wide nozzle with spray rod, low pressure flushing system , sweeping dust reduction system, hydraulic system, special equipment electronic control system and sub-frame and others.
2. The Street Cleaner Truck for sale has the functions of road cleaning, road sweeping,road edge and curb stone surface cleaning, low pressure washing, spray dust removal and so on. There are various operation modes such as "full wash", "left wash", "right wash", "full sweeping", "left sweeping" and "right sweeping". Select "Full Wash" mode to clean the square and pavement, the cleaning efficiency is high, and the washing rate is over 90%. Select the "Left Wash" or "Right Wash" mode to clean the pavement and curb and scrub the curbstone facade. The sweep mode can be selected when road cleaning or road cleaning is required. When spray dust removal is required, the spray device can be turned on for spray dust removal. Low-pressure flushing of the road surface like a sprinkler.
3. Street Cleaner Truck for sale is the best choice for road, factory, residential area sweeping & Cleaning.
4. All function contained in 1 control panel in cabin, Easily for 1 man contorl.
5. Stainless Water Tank & Garbage Tank for long time use.
6. Hydraulic Controlled Brush with automatic retreating system to avoid collosion.
7. Floating Suction Pan to adjust as per road height.

Specification for Road Sweeper ttruck:

Vehicle name	Road washing sweeper truck		Chassis model	EQ1185LJ9CDE
Cab	One and half rows,luxury configuration, 3 passengers allowable		Overall dimension (mm)	9400×2500×3120
Curb weight (kg)	7045		Wheel base (mm)	3950
Engine	Model	CY4SK761	Description of engine	4 cylinders,in line,turbocharged, water-cooled, intercooled,diesel
	Max.output power (KW/HP)	145/197	Displacement(ml)	4087
Performance	Max. vehicle speed (km/h)	105	Running angle(°)	Approach angle	19
	F/R overhang(mm)	1260/2540		Departure angle	14
	Emission standard	Euro 6	Drive type	4X2
Description of gearbox	Manual, 7 forward &1 reverse gears		Steering type	LHD,power steering
Clutch	Diaphragm spring clutch		Brake system	Air brake system
Specification of tyre	10.00R20		Number of tires	6+1
Frame	Stamping riveted structure		Number of leaf spring	8/10+7
Max.grade ability	30%		Min. turning diameter	18m
Brake distance	≤10m		Min.ground clearance	250mm
Auxiliary engine model	B140 33		Power of auxiliary engine	140HP
Water tank	Capacity 5000L,made of 3mm stainless steel		Dust tank	Capacity 5000L,made of 3mm stainless steel
High pressure washing	Washing speed		3~20 km/h
	Washing width		3.5m
	Water pressure		12 MPa
	Water pump flux		115 L/min
Suction and sweeping	Cleaning efficiency		≥95%
	Max. inhalation size		Ø110mm
	Suction and sweeping width		3.5m
	Max.cleaning capacity		60000m2/h
	Dish brush extension		≥400mm
	Running speed		3~20 km/h
Hydraulic system	Hydraulic pressure		16 MPa
	Hydraulic oil capacity		60 L
Electrical system	Type		DC12V
	Voltage		12V
	Battery		12V
High pressure water system	Type		Ram pump
	Model		PT36
	Pressure		10 MPa
	Revolution		1150 r/min
	Water valve type		Hydraulic high pressure ball valve
	Water valve pressure		7 MPa
	Nozzle type		High pressure washing type
	Water filter		Strainer mesh
	High pressure washing reel		20m
Low pressure water system	Model		65QZ-40/50
	Flux		40 m³/h
	Raising capacity		50 m
Dish brushes	Type		2 pcs at middle,driven by hydraulic motor,revolution is adjustable,controlled individually,automatic avoidance
	Diameter		850 mm
	Speed		High 110r/min, middle 80r/min,low 50r/min
	Angle		Forth tilt:4-6°, outward tilt:4-7°
Sucking dish	Type		Double inhalers,hydraulic control, spring suspension
	Inhaler diameter		180 mm
	Width		1800 mm

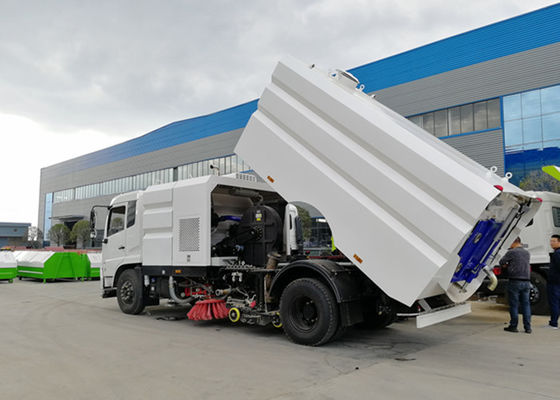

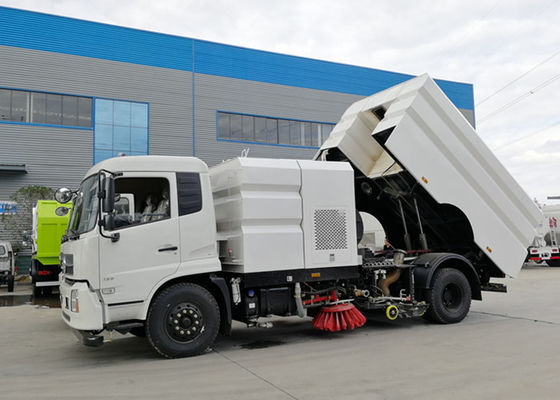

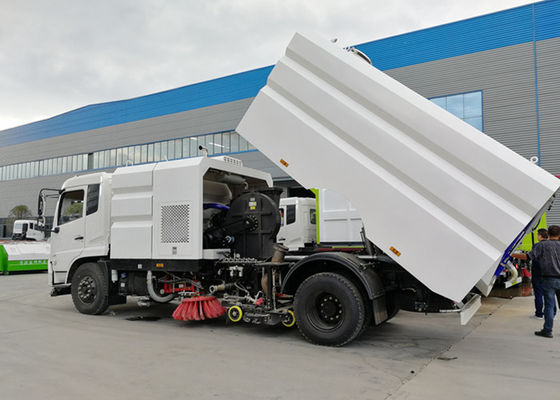

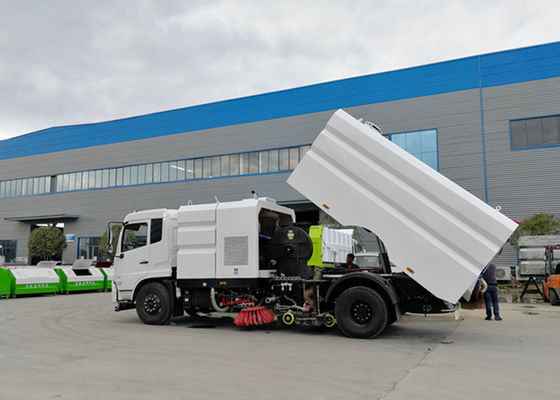

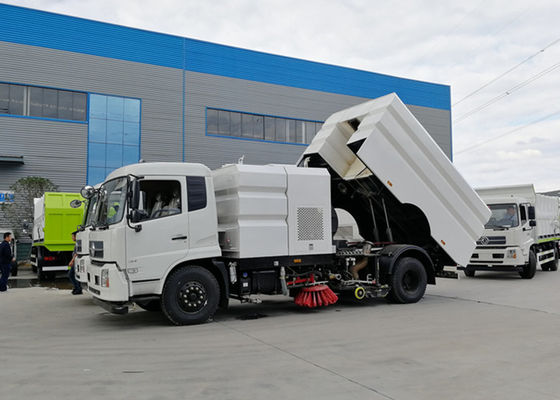

More pictures for Road Sweeper Truck:

Dongfeng 6 Wheeler 190HP 8cbm Street Sweeper Vacuum Truck 0
