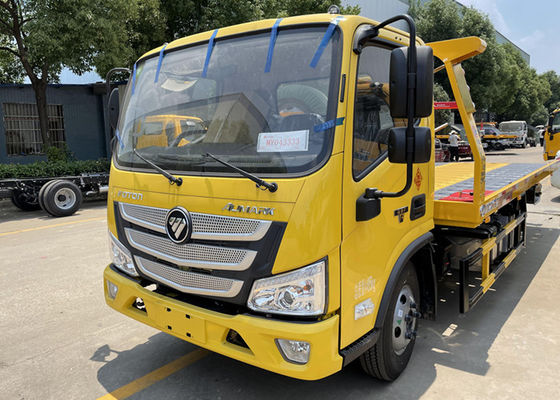

FOTON AUMARK 4x2 5T Hydraulic Platform Flatbed Tow Truck

Büyük resim : FOTON AUMARK 4x2 5T Hydraulic Platform Flatbed Tow Truck

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU. HUBEI, ÇİN.
Marka adı:	CLW
Sertifika:	CCC, ISO9001, SGS, BV
Model numarası:	CLW2020708

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Negotiated
Teslim süresi:	40 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 50 adet.

İletişim

Detaylı ürün tanımı

Ürün adı:	FOTON tamirci kurtarma kurtarma çekici kamyon	Kamyon markası:	Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC vb.
Sürücü modeli:	4X2, 6 Tekerlekli, 6 tekerlekli	Sürücü tipi:	Sağdan Direksiyonlu veya Soldan Direksiyonlu.
Max. Maks. Loading weight yükleme ağırlığı:	4000KG, 5000KG, 4 TON, 5 TON,	Teçhizat:	Hidrolik pompa, Yağ Silindiri
Ana bölümler:	Bom, Kaldırma, Vinçler, İniş Ayağı	Tel halat:	25 metre
Vurgulamak:	5T Flatbed Tow Truck , 4x2 Hydraulic Platform Flatbed Tow Truck , FOTON AUMARK Flatbed Wrecker Truck

FOTON AUMARK 4x2 5T Hydraulic Platform Small Road Wrecker Flatbed Tow Truck

Product Description:

1. Purpose of 4ton flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.

Specification:

General Technical Parameters
Overall Dimension			5995x2300x2350(mm)
Gross Vehicle Weight			4495kg
Curb Weight			4100kg
Chassis Specification
Chassis Parameters	Chassis Brand		FOTON
	Cabin		Single, Left Hand Driving
	Engine	Model	4 Cylinders
		Power	95KW/130HP
		Emission Standard	EURO II
		Displacement	2780ml
		Fuel Type	Diesel
	Gearbox		5 Forward & 1 Reverse Gear
	Front and Rear Axle Load		3T/6T
	Wheel Base		3360(mm)
	Overhang( Front/Rear)		1015/2450(mm)
	Angle(Approach/departure)		22/16(°)
	Brake System		oil brake
	Steering Gear		Power Assistant
	Tire		7.00R16, 6 Pieces with 1 Spare Tire
	Maximum Speed		90 (km/h)
Superstructure
Flatbed	Dimensions		4200x2320 (mm)
	Max. Loading Weight		4000(kg)
	Operating Stroke		2700 (mm)
	Min. Angle of Slope		8(°)
	Platform Height from the Ground		1070(mm)
Winch	Quantity		1pc
	Winch Rating Pulling Capacity		4000 (kg)
	Length of Steel Cable		25 (m)
Hoisting Organ	Rating Under-Pulling Capacity		6000 (kg)
	Rating Under-Hoisting Capacity		2000 (kg)
	Fully Extended Max Under-Hoisting Capacity		1600 (kg)
	Max Under-Hoist Useful Length		1640 (mm)
Remarks	1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars

CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.

Certificate: ASME, ISO, BV, SGS, CCC etc.
More than 30 independents workshops.
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians. About 8000 workers.
800kinds of LPG, trucks and semi-trailers.
20 years wholesale experience
Turnover 250 million and Export 20million annually
Turnover 2 billion trucks and semi-trailers annually.
Trucks and trailers Sold to 90 countries
Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
