HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck

Büyük resim : HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC BV SGS
Model numarası:	CLW5871

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, ro-ro, toplu gemi
Teslim süresi:	Depozito aldıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Kapasite:	8t,8ton,8ton10t,10ton,10ton,12t,12ton,12ton	Tank malzemesi:	paslanmaz çelik Q304-2B
Yalıtım katmanı:	üç katman	püskürtme genişliği:	4600+1350mm
asfalt püskürtme hacmi:	0,25~3,5L/m2	Çalışma hızı:	1,5~7km/saat
Püskürtme nozullarının sayısı:	38	Tank hacmi:	12 metreküp, 12000 litre
Vurgulamak:	Q304-2B Stainless Steel Asphalt Paving Truck , HOWO Asphalt Paving Truck , 6x4 Asphalt Distributor Truck

HOWO 6X4 Stainless Steel Q304-2B Asphalt Paving Truck

Description

1. It can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.

Specifications

Item	Specification	Remark
Dimension(mm)	1053025003400	LWH
Maximum Capacity (m3)	12
Curb Weight (kg)	7990
Payload (kg)	15000
Gross Mass(kg)	23000
Wheel base(mm)	4600+1350
Working Temperature (°C)	230
Working Pressure (Mpa)	0.09
Temperature Lapse Rate (°C/h)	2	Feeding Temperature≥160°C
Asphalt Pump Displacement (L/min)	500
Application Width (mm)	0~6000	38 pcs Jet Nozzle
Ground Clearance of Distributing Bar (mm)	200~450
Application Ration(L/ m2)	0.3 ~3
Burner	40G20
Hydraulic Pump	CBN-F450-ALPL
Radial Plunger Motor	1NM05-60
Model of the Chassis	ZZ1167G4	HOWO
Model of the Engine	YC4E160-33
Maximum Power of the Engine (Kw)	247
Passengers Capacity (person)	3
Approach Angle (º)	22
Departure Angle(º)	13
Maximum Running Speed (Km/h)	95

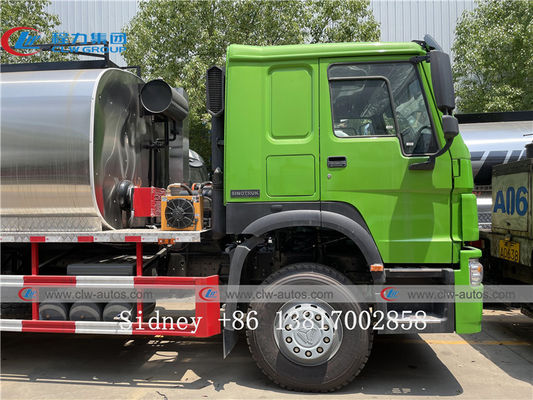

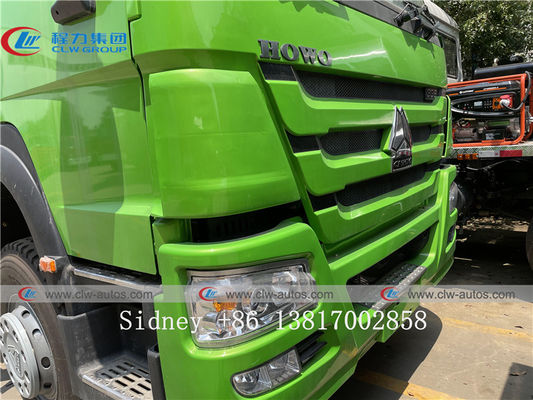

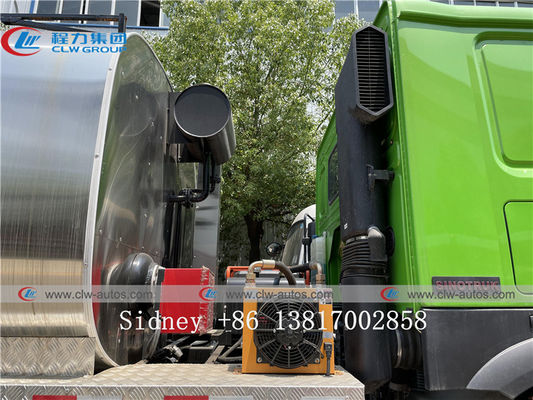

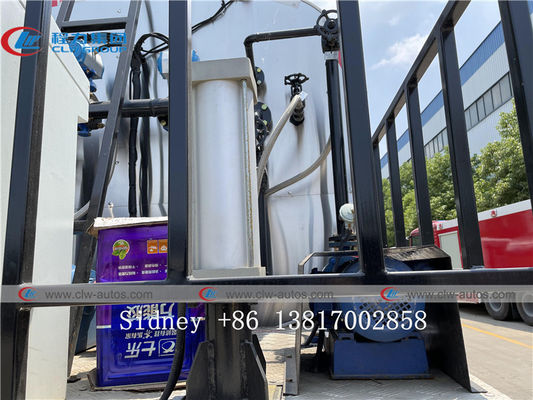

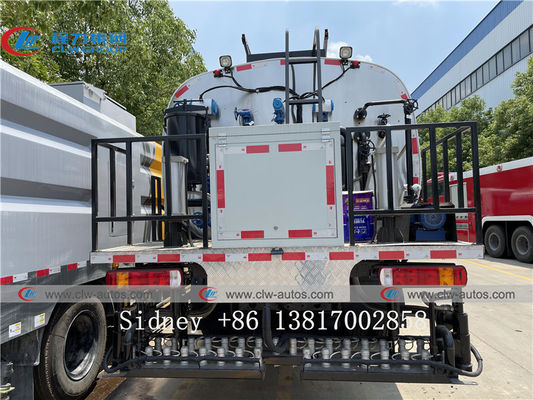

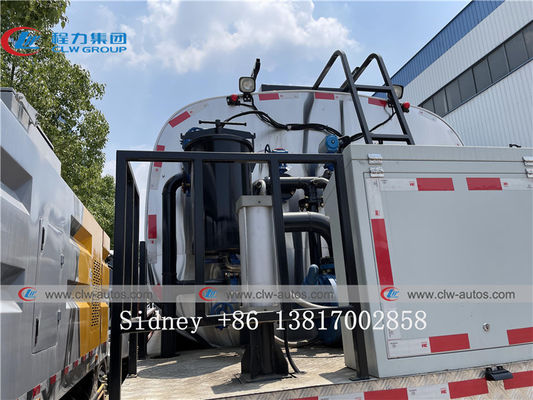

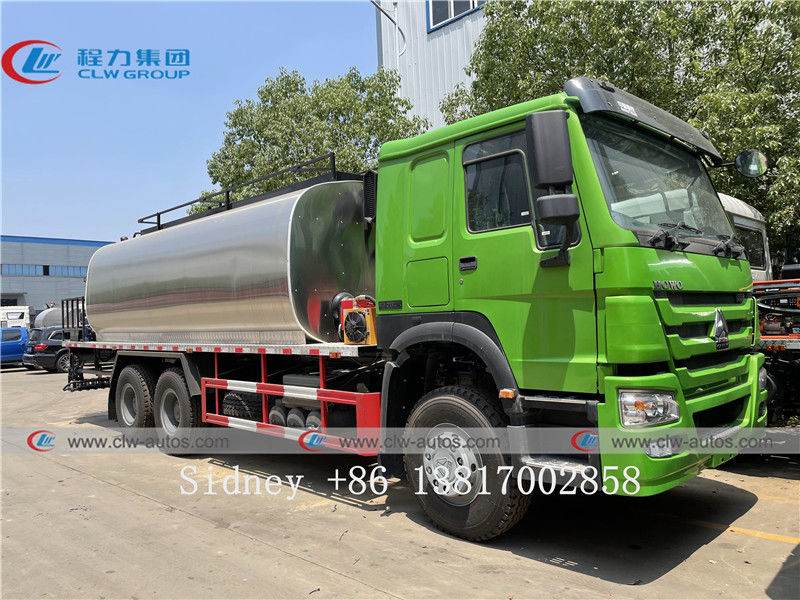

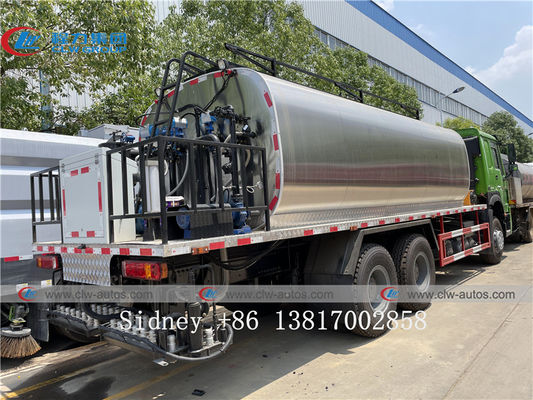

Reference Pictures

HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck 0

HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck 2

Main Structure Diagram

Working Scene

HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck 5

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
