Hotsale 3 - 5tons small refrigerated truck Refrigerator Van Box Freezer Truck
Product Description
1. Purpose: It is used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Refrigeration unit brand can be choosen, Thermo king (USA brand)Carrier (USA brand)Han Xue (Chinese brand) Han Ya (Chinese brand)...
4. Features: International chassis brand and International refrigerating unit brand for optional,truck chassis available Dongfeng, Foton, Howo, JAC, JMC, ISUZU, FAW...
5. Refrigerated Truck payload available 1.5T, 2T, 3T, 5T, 7T, 10T, 12T, 20T...
Feature and Application
The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation,
the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
Specification
| Complete Vehicle |
| Vehicle name |
ISUZU ELF 4x2 3-5tons refrigerated van truck |
| Overall dimension (mm) |
5995 × 1910 × 2890 |
| Refrigerator body (mm) |
4100 × 1740 × 1750 |
| Gross vehicle weight (kg) |
Appro × 7360 |
| Net weight (kg) |
Appro × 2900 |
| Loading (kg) |
Appro × 4330 |
| Wheel base (mm) |
3360 |
| Max speed |
95 |
| ISUZU Truck Chassis |
| Condition |
New |
| Cabin |
Single row cabin, power steering, air conditioner, 2 passengers, left hand drive |
| Traction system |
4×2 |
| Engine |
Brand : ISUZU
Model : 4JB1CN
Engine power: 98hp
Type : diesel, 4 cylinder, turbocharged, inter-cooled.
Displacement : 2771ml
Emission standard : Euro 4/5
|
| Transmission |
5 forward, 1 rear, manual operated |
| Tire model |
7.00-16 |
| No.of tires |
6pcs, with a spare tire |
| Refrigerated Van Body |
| Condition |
New |
| Standard configuration |
1. Refrigerated box inside and outside wall material are FRP.
2. Intermediate insulation material is polyurethane, thickness 80mm.
3. Equipped with China brand refrigeration unit, the lowest temperature -15ºC.
4. Door frame material are stainless steel.
5. The door lock material is galvanized.
6. The box body is aluminum profile hemming.
7. Refrigerator box roof is sealed, rear open double doors.
|

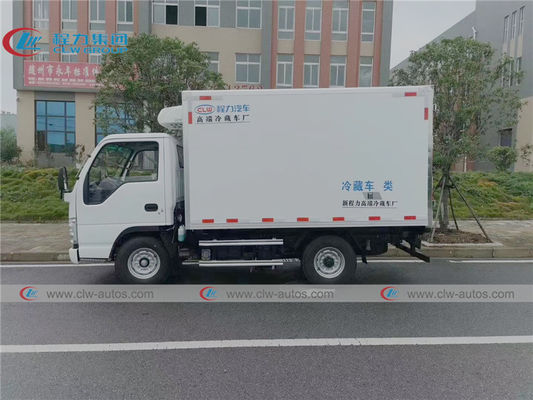

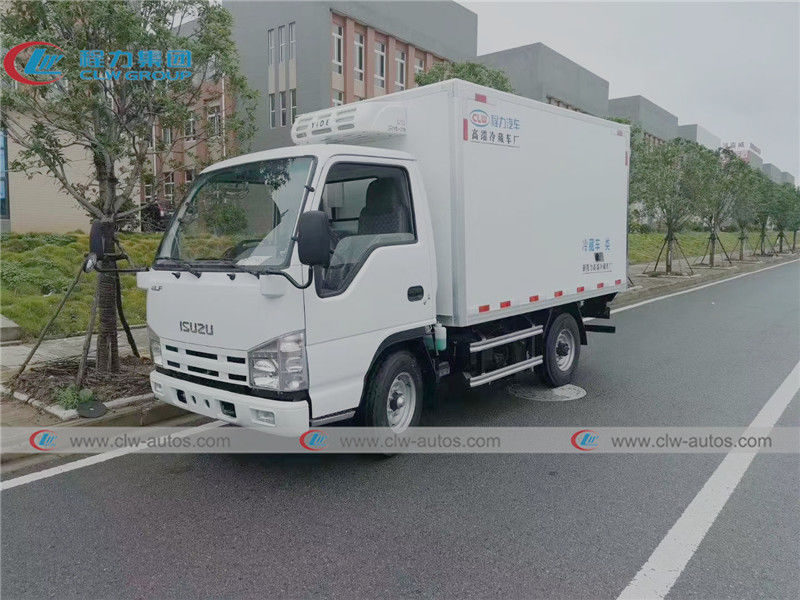

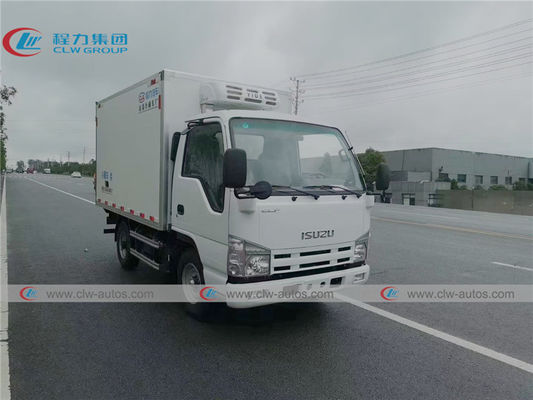

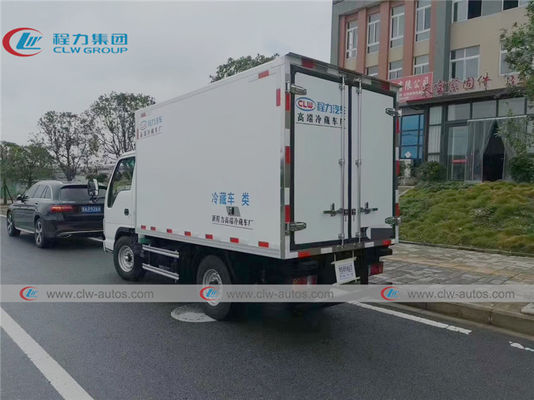

Product Show
Factory overview
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
