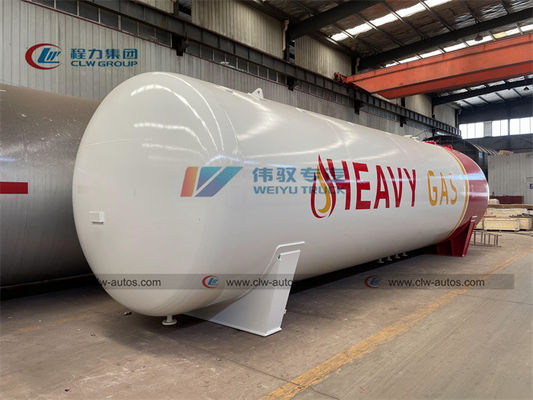

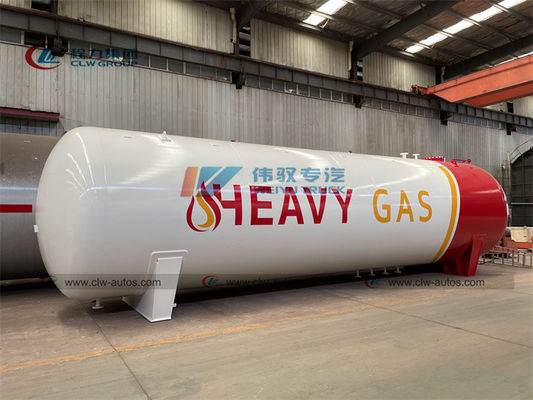

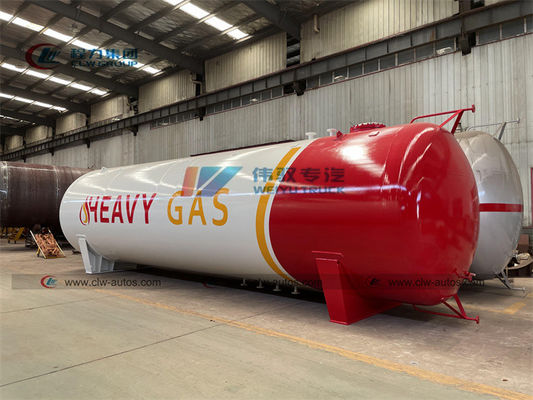

30tons LPG Storage Tank LPG Cooking Gas Cylinder Plant for Zimbabwe
Product Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.
5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
6. Maintenance-free operation with simple calibration and proof testing.
7. 20 years guarantee against manufacturing defects.
| Parameter of 60000liters 30tons filling station gas tank |
| ITEM |
PARAMETER |
ITEM |
PARAMETER |
| Volume |
60cbm |
Thickness of Shell |
14mm |
| Tank Material |
Q345R |
Thickness of End plate |
16mm |
| Overall Size |
10962*2728*3318mm |
Tank Net Weight |
12750kg |
| Tank Diameter |
2700mm |
Loading Capacity |
23940kg |
| Design Pressure |
1.77Mpa |
Gas Density |
420kg/M3 |
| Hydraulic Test Pressure |
2.22Mpa |
Corrosion Allowance |
1mm |
| Design Temperature |
-20ºC~60ºC |
Heat Treatment |
Bulk |
| Vapor Outlet |
DN50 |
Gas Outlet |
DN50 |
| Life time |
15 years |
|
|
| Accessories |
| Model |
Item |
Qty |
Junction surface |
| J41N-2.5-50 |
Stop Valve DN50 |
6 |
RF |
| J41N-2.5-25 |
Stop Valve DN25 |
2 |
RF |
| J41N-2.5-100 |
Stop Valve DN100 |
1 |
RF |
| J24W-320-DN6 |
J24W Needle Valve M20*1.5 |
1 |
|
| HG21584-95 |
Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 |
1 |
RF |
| A42F-25-100 |
Safety Valve DN100 |
1 |
RF |
| Y-100T |
Pressure Gauge M20*1.5 1.5degree 0~4Mpa |
1 |
|
| WTQ-280 |
Thermometer M33*2 2.5 degree |
1 |
-40ºC~60ºC |
LPG filling station design
Key words: 30tons LPG storage tank, LPG Tank,Cooking gas plant
