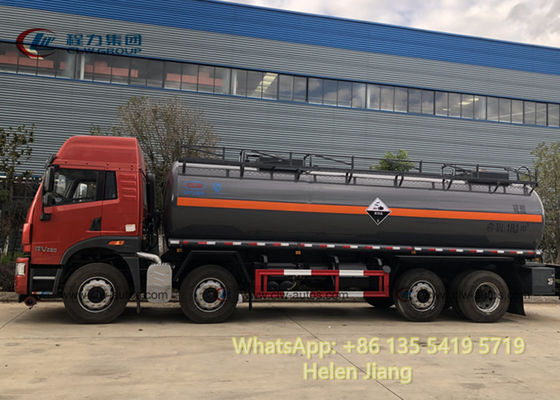

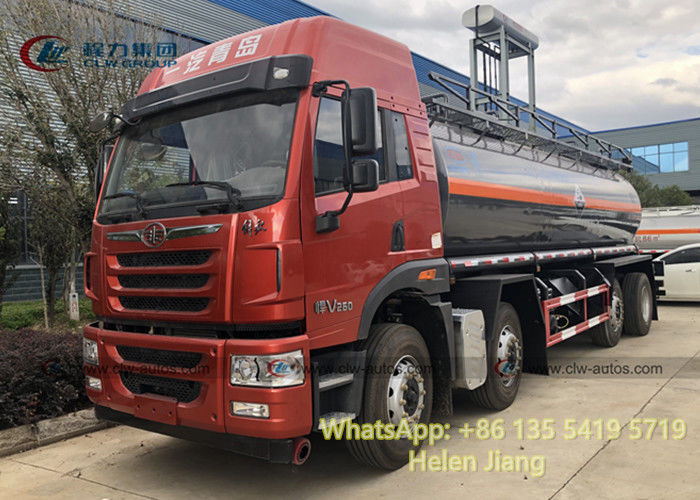

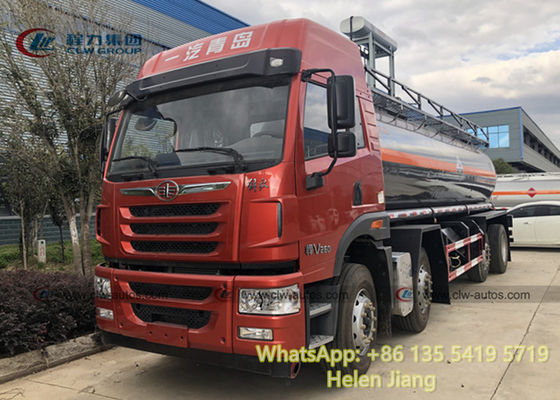

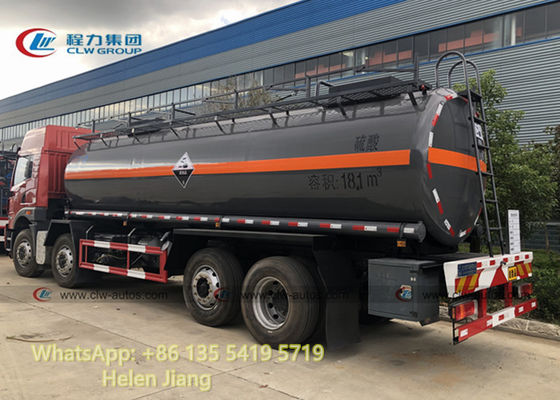

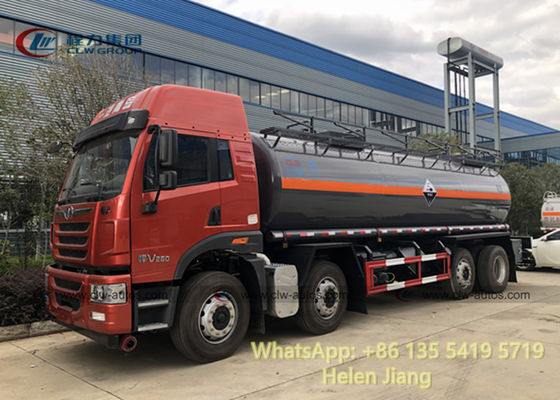

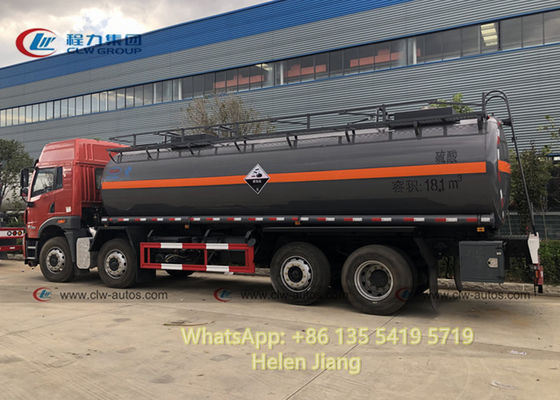

FAW 8*4 20000L 20CBM RHD Liquid Chemical Transport Tanker Dilute Sulfuric Acid Tank Truck
Product Description
1. Purpose: It used for transporting all kinds of acid solution and alkaline solution such as 98% sulfuric acid, dilute sulphuric acid and sodium chloride solution
2. Main parts: Bottom valve, pipeline and liquid line.
3. Truck Brand: FAW, optional for SINOTRUK HOWO, Dongfeng, ISUZU, SHACMAN, North Benz and other brands
4. Available tank capacity: 15m³ , 16m³ ,18m³ ,20m³ , 22m³
Acid Tank Trailer 30T -60T Solusion Hydrogen Chlorate, Sodium Hydroxide,Acrylic ,Acetic Acid,Glacial Acetic Acid, Hydrogen Peroxide ,Propionic acid,
Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
| Technical Parameter |
| Product Name |
Chemical liquid tank truck |
| Overall Dimension(L*W*H) (mm) |
9600×2500×3350 |
| Tank size(mm) |
6800×2400×1700 |
| GVW(kg) |
24700 |
| Curb weight(kg) |
11505 |
| Rated loading capacity(kg) |
13000 |
| Approaching/Departure Angle(°) |
27/13 |
| Front/Rear suspension(mm) |
1245/2705 |
| Front/Rear tread(mm) |
1940/1860 |
| Fuel type |
Diesel |
| Chassis Technical Parameter |
| Chassis brand name |
FAW |
| Control System |
Electrically hydraulic system |
| Electric System |
24v |
| Traction system |
6×4 |
| Transmission |
6 forward gear, 1 backward gear |
| Tyre specifications |
10.00-20 |
| Tire number |
10 (1 spare tire) |
| Wheelbase(mm) |
4350+1300 |
| Axle number |
3 |
| Axle loading(kg) |
6800/17900 |
| Passengers in cab |
3 |
| Maximum speed(km/h) |
85 |
| Engine Parameter |
| Engine manufacturer |
WEICHAI |
| Engine model |
380HP |
| Displacement (ml) |
5900 |
| Power (kw/hp) |
155/210 |
| Number of cylinders |
6 |
| Cylinder spread pattern |
In-line |
| Intake type |
Supercharged and mid-cooling |
| Cylinder bore× route(mm) |
102×120 |
| Maximum torque speed(rpm) |
1500 |
| Emission standard |
Euro 3 |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
