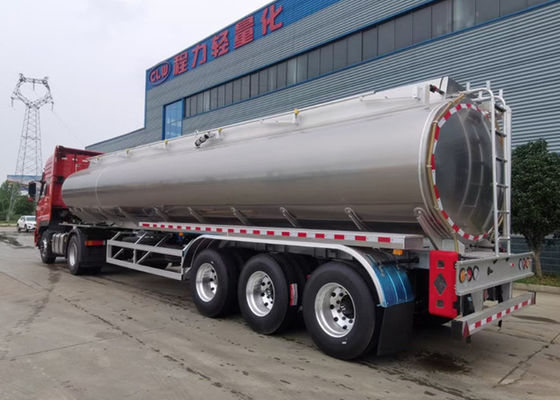

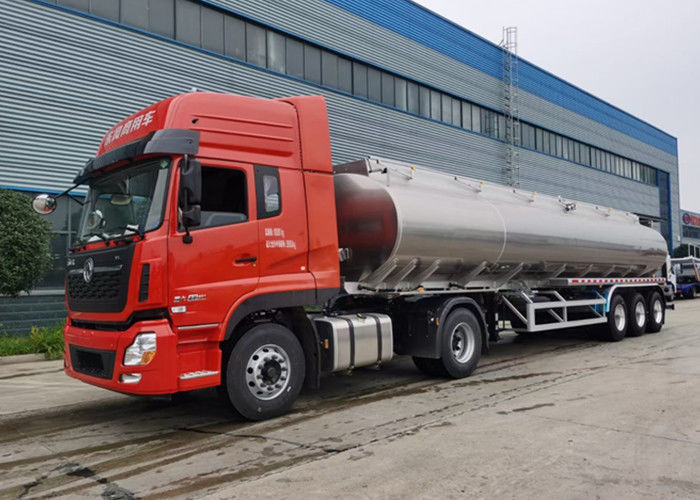

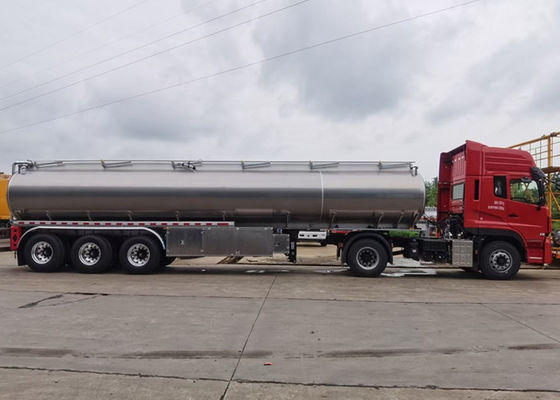

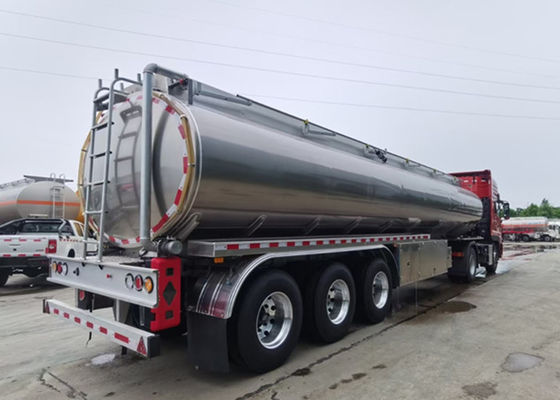

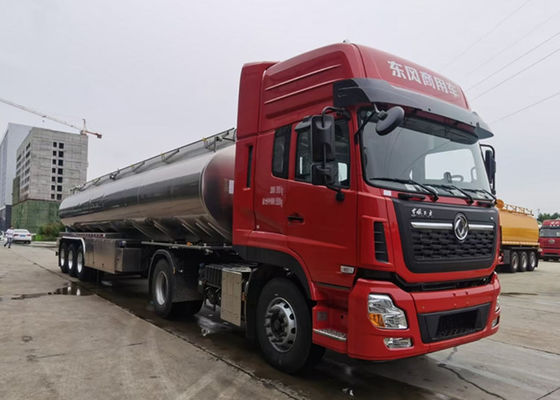

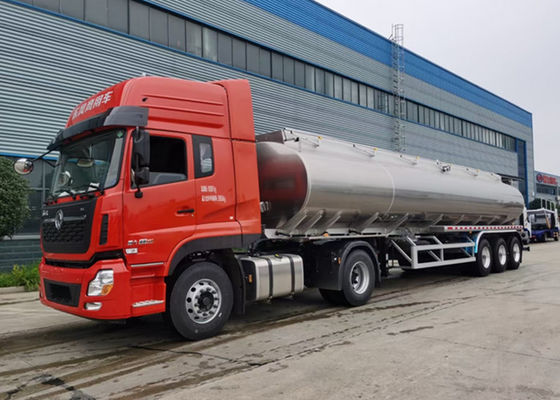

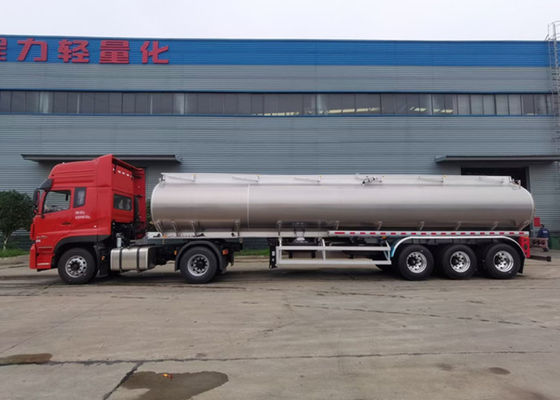

3 Axle 36000 Liters 36CBM 36000L Fuel tanker Stainless Steel Oil Transport Tank Trailer
Description:
1, Fuel tank applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy.
2, BPW, FUWA or L1 axle
3, Fuel tank trailer with the famous pump .
4, Factory direct sale. Very competitive price with high quality.
5, The main parts for fuel tank trailer implements automatic welding.
6, Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
7, Fire extinguisher replaced on the back of the truck for the emergency.
8, Painting held more tolerance and coherence, can make sure the tank in good situation more than 10 years.
9, According to customer's needs.
3 Axle Aluminum 45m3 Fuel Tank Semi Trailer
1. Purpose: It used for transporting all kinds of chemical liquid such as diesel and gasoline etc.
2. Main parts: Axle, Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304, Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
5. Axle brand: China famous brand FUWA/China brand L1/Germany brand BPW.
product Specification
| Main Dimensions |
| Overall Length |
11800mm |
| Overall Height |
3700mm |
| Tare Weight |
11500KGS |
| Loading Capacity |
45 m3 |
| Photo only for reference, final product can be made according to exact requirements |
| Tank Body |
| Shape |
Mono block Cylinder |
| Total Volume(m3) |
45CBM |
| Tanker Body Material |
5mm stainless steel |
| End plate |
6mm stainless steel |
| Lifting Ladder |
Including Top walkway and backside Aluminum material |
| Manhole cover |
Aluminum alloy API manhole cover, ∮500mm ,4 sets with 4 breather valves |
| Bottom Valve |
1 sets of Aluminum API Pneumatic Bottom Valve |
| Discharging valve |
1 set ∮100mm discharging valves |
| No.of Compartment |
1 |
| Discharging Pipe |
4”rubber hose, 2 pcs, 6m long |
| Chassis |
| Main Beams |
Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
| Axle |
3 axles |
| FUWA 13 Ton |
| Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
| King Pin |
JOST brand 2” bolt-in king pin |
| Suspension |
German design heavy duty mechanical suspension |
| Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Wheel rim |
9.00-22.5 wheel rim, 12 pieces with one extra |
| Tire |
12R22.5 tubeless tire with one spare tire, 13 pieces |
| Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories |
One standard tool box, |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
