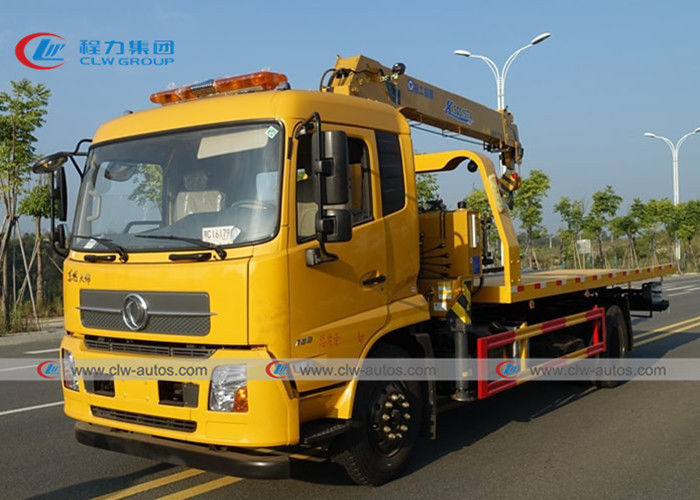

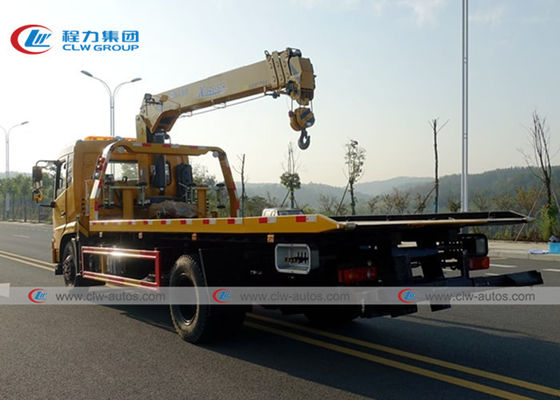

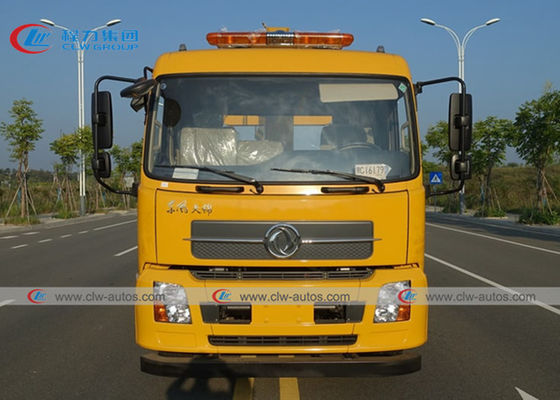

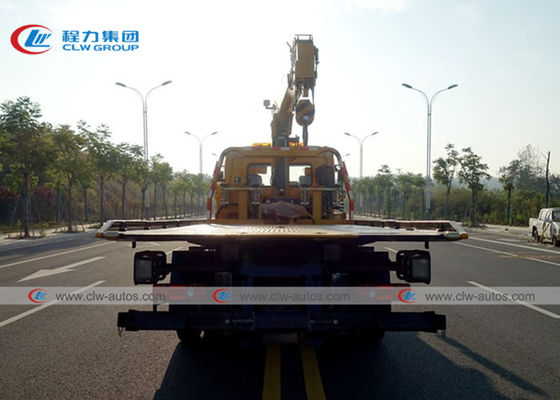

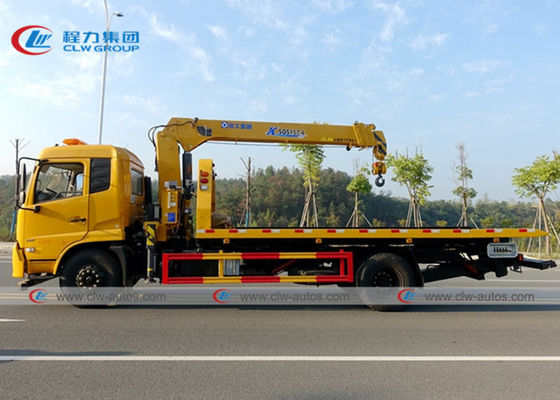

Dongfeng Tianjin 4x2 8T Flatbed Tow Truck With XCMG Crane

Büyük resim : Dongfeng Tianjin 4x2 8T Flatbed Tow Truck With XCMG Crane

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU. HUBEI, ÇİN.
Marka adı:	CLW
Sertifika:	CCC, ISO9001, SGS, BV
Model numarası:	CLW20210811

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Negotiated
Ambalaj bilgileri:	Teslimattan önce çıplak veya mumlu
Teslim süresi:	40 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 50 adet.

İletişim

Detaylı ürün tanımı

Ürün adı:	tamirci kurtarma kurtarma düz yataklı çekici kamyon	Kamyon markası:	Sinotruk HOWO, Dongfeng, FAW, FOTON, JAC vb.
Sürücü modeli:	4X2, 6 Tekerlekli, 6 tekerlekli	Sürücü tipi:	Sağdan Direksiyonlu veya Soldan Direksiyonlu.
Max. Maks. Loading weight yükleme ağırlığı:	6000KG, 8000KG, 6 TON, 8 TON,	Teçhizat:	Hidrolik Yağ pompası, Yağ Silindiri, Yardımcı tekerlek
Ana bölümler:	Bom, Kaldırma, Vinçler, İniş Ayağı	Tel halat:	25 metre

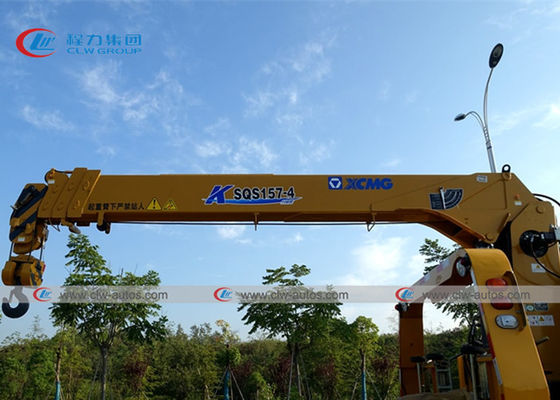

Diğer:	XCMG marka Düz kollu vinç ile
Vurgulamak:	Dongfeng Tianjin Flatbed Tow Truck , Flatbed Tow Truck With XCMG Crane , 4x2 Wrecker Tow Truck

Dongfeng Tianjin 4x2 8Tons Road rescue vehicle Flatbed Towing Rescue Truck With XCMG crane

Product Description:

Application: Vehicle rescue and road clearance etc.

Chassis Brand: DFAC, HOWO, Foton or other high quality brand chassis

Equipments: Hydraulic winch, rear towing device, warning light, tow wheel etc.

Tilted angle flatbed and full sit-ground flatbed optional.

Towing Types: Boom type / Wheel-lift type / Integrated type of boom and wheel-lift / Flatbed / Lift flatbed are optionals. Please specify when inquiring or placing order.

Main Market: our wrecker tow trucks are widely sold in Africa, S. America, Middle East and Asian countries.

Below photo includes our tow trucks with different chassis and capacities.The spec is 8 ton model for reference.

Specification:

4 ton DONGFENG Wrecker Truck with Crane Parameter
Vehicle		DONGFENG wrecker truck with crane
Overall dimension	mm	8000×2350×3300
Flatbed dimension		5550×2300
Curb weight	kg	Appro×6600
Flatbed loading weight		Appro×4000
Carriage arm loading weight		Appro×3000
Wheel base	mm	4400
Front/Rear overhang		1180/2420
Approach/departure angle	°	25.5/11
Standard configuration	1) With 2-4 ton crane
	2) 4 tons winch 1 set
	3) Auxiliary wheel 2pcs
	4) Rear towing arm assembly 1 set
	5) Steel wire rope 25m
	6) Bunding belt 4pcs
	7) Rear tail lights LED,both sides electronic lights.
	8) Tool box
Working Performance	1. It can tow two cars. 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. 3. Winch speed : 8m/min. 4. Flatbed working stroke: 2680mm 5. Flatbed minimum tilt angle: 10° 6. Carriage arm telescopic stroke: 1180mm 7. The max effective length of the carriage arm: 1300mm. 8. Crane max working radius 5.1m, max lifting height 6.8m.
Chassis Parameter
Cabin	Single row cabin,air conditioner, cabin roof warning light, 2 passangers
Drive type	4×2
Engine	Brand : DONFGENG CHAOCHAI Model : CY4102-E3C, 120hp Type : diesel, 4 cylinder, turbocharged, intercooled. Displacement : 3856ml Emission standard : Euro III
Transmission	5-speed, manual
Tire model	8.25R16
No.of tires	6 pcs

Dongfeng Tianjin 4x2 8T Flatbed Tow Truck With XCMG Crane 0

CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.

Certificate: ASME, ISO, BV, SGS, CCC etc.
More than 30 independents workshops.
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians. About 8000 workers.
800kinds of LPG, trucks and semi-trailers.
20 years wholesale experience
Turnover 250 million and Export 20million annually
Turnover 2 billion trucks and semi-trailers annually.
Trucks and trailers Sold to 90 countries
Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
