Manyetik Plaka Seviye Göstergesi, Şamandıralı Bilyalı Rochestor
Çap:
1600MM
Diğer Aksesuarlar:
LPG Pompası ve Motoru, LPG kompresörü,
Dolum Parçaları:
LPG dolum tartısı, Tek veya Çift nozullu LPG dispenseri
Üretim adı:
LPG Kızak İstasyonu, Dolum Tüpü Dolum
Pompa markası:
Corken, Blackmer, Çin Markası
Diğerleri:
Gaz kaçağı dedektörü, su soğutma sistemi. Acil kapatma
Vurgulamak:
5T LPG Gas Filling Station
,
10000L LPG Gas Filling Station
,
Mobile LPG Skid Station
5Tons Mobile LPG Cylinder Filling Skid 10,000Liters LPG Gas tank station with 2 sets Pumps & Motors
Product Description
LPG refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.
Feature
1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp
5-10Tons LPG Filling Skid 10,000-20,000Liters LP Gas tank station
is mainly used for cooking gas storage and LPG Cylinders refilling. our tank is designed for 30 years life. the skid plant is using China top quality pump, compressor, valves, meters and filling scales. The filling scales is digital. The filling speed is 1minite for 25kg cylinder. one scales can fill 100-200pcs cylinders. So one plant can use to refill 200-400cylinders every day. We sold hundreds of LPG Skid Plants to Nigeria, Kenya, Zimbabwe, Bangladesh, Cambodia etc every year.
Product Specification for 10000Liters 5 tons LPG skid station;
Item No.
Parameters
Volume of Tank (cbm)
10
Tare Weight (kg)
2950 kg
Filling Capacity (kg)
5000 kg
Thickness of Shell (mm)
10
Thickness of Endplate (mm)
10
tank cylinder diameter (mm)
1600
External Dimensions (mm)
(length × width × height)
5260*1620*2210
Material of Tank and Main Pressure Parts
Carbon Steel Q345R
Filling Medium
Liquefied Petroleum Gas
Design Pressure
1.77MPa ( 256.65 Psi)
Corrosion Allowance
1 mm
Medium Density
550kg/cm3
Main Specification for filling system:
Item
Product
Description
1
Dispenser x 1 , Or LPG filling weighter x2
one gun, with total print function, liter Unit or Gallon Unit
2
Pump for liquid output x1 ( pump out )
Installing Vibration-proof pipe, filter net for pump in,ball valve for input and output, pressure gauge with valve x 1. Safety valve x1 Air gas valve x2, liquid gas valve x2, metal soft pipe 3.5 m x 2 Unit ( DN50, DN 25)
3
Pump with one Compressor
4
Urgent cutt off valve with ball valve x 1
5
liquid level gauge
with valve x 2
6
Safety valve x1
Between tank and dispenser
7
Valve for wasted and unusefull liquid x2
8
Urgent cutt off valve x 2 Unit
Tank liquid gas output point,
9
Temperaturer gauge x1,pressure gauge x1
In stalling on tank
10
Safety electric system
Safety Switch x 3 set with safety electric box.
11
Alarm system
Around pipe, to checking whether leaking gas.

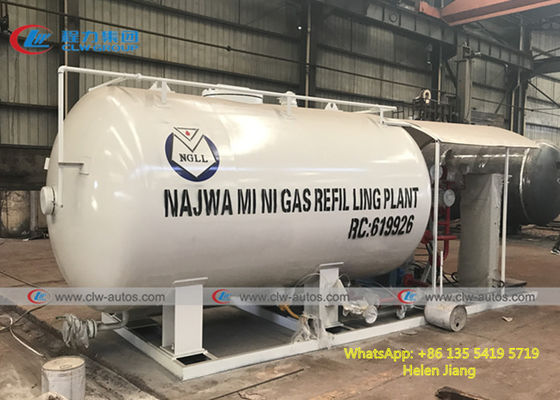

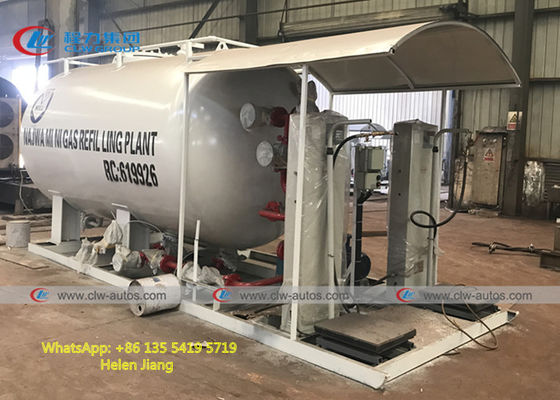

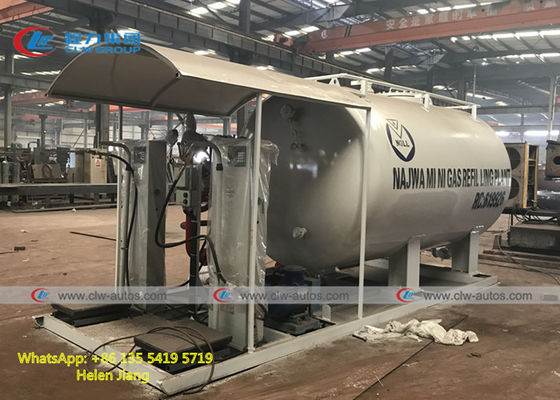

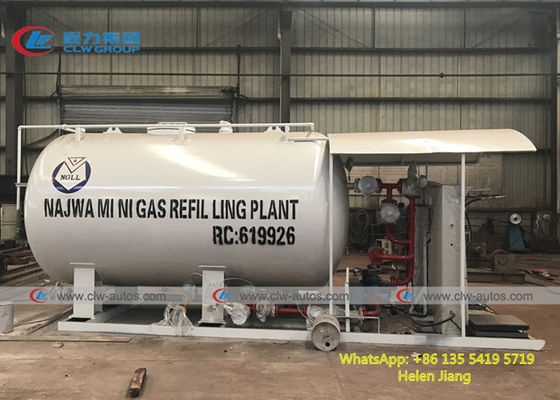

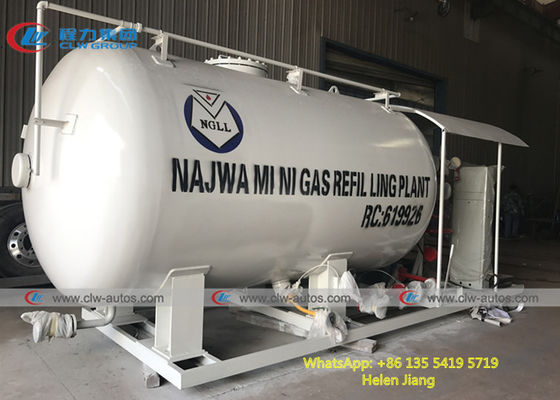

LPG filling Plant , Some more OEM product photo showing.
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
