Dongfeng Tianjin 4x2 8 Ton Road Washing Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Dongfeng Tianjin 4x2 8 Ton Road Washing Truck

Dongfeng Tianjin 4x2 8 Ton Road Washing Truck
Dongfeng Tianjin 4x2 8 Ton Road Washing Truck Dongfeng Tianjin 4x2 8 Ton Road Washing Truck Dongfeng Tianjin 4x2 8 Ton Road Washing Truck Dongfeng Tianjin 4x2 8 Ton Road Washing Truck Dongfeng Tianjin 4x2 8 Ton Road Washing Truck Dongfeng Tianjin 4x2 8 Ton Road Washing Truck Dongfeng Tianjin 4x2 8 Ton Road Washing Truck

Büyük resim :  Dongfeng Tianjin 4x2 8 Ton Road Washing Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Hubei, Çin
Marka adı: CLW
Sertifika: CCC, ISO9001, BV, SGS
Model numarası: CLW20210812

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 birim
Fiyat: Negotiated
Ambalaj bilgileri: Teslimattan önce çıplak mumlu
Teslim süresi: 35-40 İş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 500 adet
Detaylı ürün tanımı
Ürün adı: Yol Süpürme Aracı, Yüksek Basınçlı Yol Yıkama Kamyon Şasi Markası: JMC, DONGFENG, HOWO, FAW diğer Çin markası
Çöp Kovası Kapasitesi: 3m3, 5m3, 7m3, 8m3, 12m3 Gövde tipi: Vakumlu Süpürücü Süpürme Süpürme Emme
Yol Süpürme Tankı Şekli: Yuvarlak, kare Kamyon Tipi: Su Dua Süpürgesi Tankı, Sokak Temizliği
Sürücü tipi: Sağdan Direksiyon, Soldan Direksiyon Sürücü modeli: 4X2, 6 Tekerlekli. 6X4, 10 Tekerlekli
Temiz Su Deposu: 8m3, 9m3, 8000 litre. 8 metreküp Şartname: 6000L, 8000L, 10000L, küçük boyutlar
Satış sonrası servis sağlandı: Video teknik desteği,Yurtdışında hizmet verecek mühendisler mevcut,Çevrimiçi destek,Saha bakım ve on Garanti: 1 Yıl, 12 Ay
Anahtar kelime: Yol Süpürme Aracı, yol/elektrikli süpürücü, yol temizleme aracı Uygulama: Sokak Temizliği, Havaalanı, Dış Mekan, Yolu Süpürme
Güç: 125 kw/170 bg Temizleme Genişliği: 3.4M,1600mm
Vurgulamak:

4x2 Road Washing Truck

,

Dongfeng Tianjin Road Washing Truck

,

Dongfeng Tianjin Road Sweeper Truck

Dongfeng Tianjin 4X2 8Tons Road Spraying Washing Sweeper Truck





Features
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.

Road Sweeper (sweeper truck) is one of the sanitation equipments. It is a new type of high-efficiency sweeping equipment integrating road sweeping, garbage recycling and transportation. It can be widely used in road highways, municipal and airport roads, urban residential areas, parks and other roads. Pavement sweepers not only clean trash, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, but also maintains the good working conditions of the road surface, and reduces and prevents traffic accidents. The occurrence and further extend the life of the road. It has become a trend to use pavement sweepers for road maintenance in China.

The road sweeper is a special sanitation vehicle equipped with a sweeping brush and other cleaning systems. It is mainly used for sweeping operations in large and medium-sized urban sanitation departments. Road sweepers have greatly liberated the work intensity of sanitation workers, increased work efficiency, and reduced secondary pollution such as dust.



Specification for Road Sweeper ttruck:

Description Specification
Automotive chassis Model,categoryand manufacturer of chassis DFL1160BX4
Model and manufacturer of engine CUMMINS 190HP
Rated power of engine 141kW/2600r/min
Tire Front wheel 9.00R20 steel wire tire
Rear wheel 9.00R20 steel wire tire
Fuel type

Diesel meeting the discharge requirements in the fifth stage,

select an appropriate diesel grade according to the temperature

Auxiliary engine Standard configuration Model and manufacturer

EQ6BT5.9 or

QSB5.9-C160-30(Standard China)

Power 118kw/2500r/min;120kw/2200r/min
Clutch Single plate, dry type and diaphragm spring
Fan Type Special high-pressure centrifugal fan
Mode of transmission Narrow V belt drive
Hydraulic system Type Open type, EHC and centralized control
Main elements Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, integrated package, etc.
Overflow pressure 14MPa
Hydraulic oil capacity 60L
Electrical system Control mode PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc.
Chassis system voltage 24V
Working device system voltage 12V
Model of storage battery Chassis: 12V-70A.H (2 pieces connected in parallel)
High-pressure cleaning system High-pressure water pump Type Plunger type
Model Italian Pratissoli KEB36R
Rated pressure 10MPa
System working pressure 9MPa
Rated flow 80L/min
Rated speed 1150r/min
Water valve and control Type of water valve High-pressure stainless steel ball valve, 10MPa
Control mode Oil cylinder drive, electrical control
Type of nozzle of water spray rod High-pressure washing type
Dust falling system of sweeping plate Electric water pump and watering nozzle; water filter and water tank shared with the high-pressure cleaning system

Sweeping system
Type Two vertical sweeping plates are symmetrically arranged between the front shaft and the rear shaft of the chassis and on both sides of the frame, which are driven by a hydraulic motor. The revolving speed of sweeping plate is adjustable. The left and right vertical sweepers can be independently lifted.
Diameter of sweeper Φ850mm
Speed of sweeping plate High gear (normal operation gear): 110r/min; intermediate gear: 80r/min; low gear: 60r/min
Adjustment to dip angle of sweeping plate Front inclination: 4°-6°; outward inclination: 2°-4°
Suction nozzle Type Double suction ports, built-in long spray lance with a high-pressure nozzle, the body of suction nozzle moves with the pavement. Lifting of the suction nozzle is controlled by the oil cylinder. A spring is used for floating suspension.
Diameter of sucker Φ180mm
Ground clearance of suction nozzle during working 5~10mm
Left & right spray lance Pendulum angle of spray lance 65°
Nozzle ground clearance 340mm
Total number of nozzles 8pcs
Detailed Images

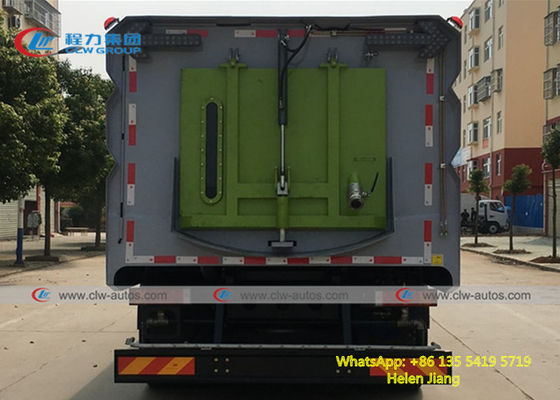

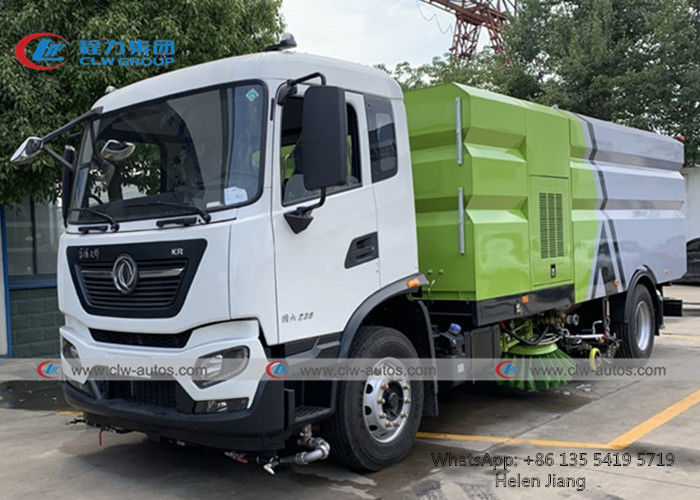

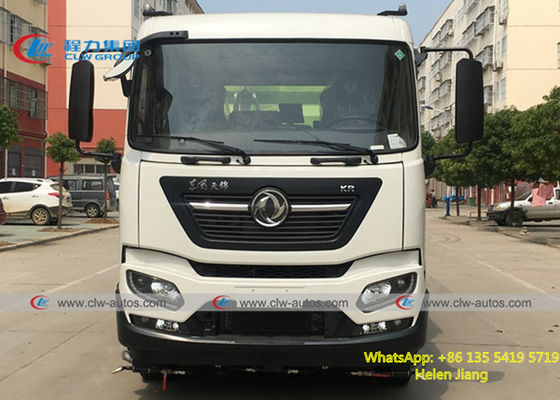

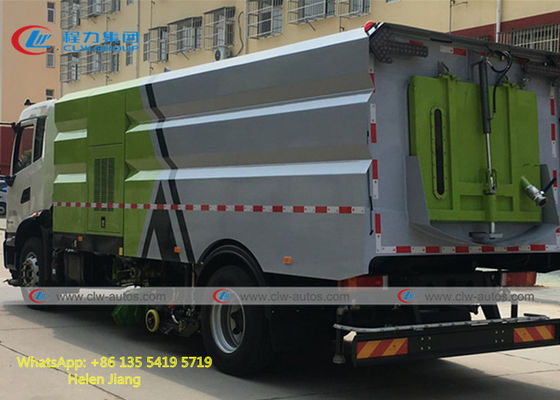

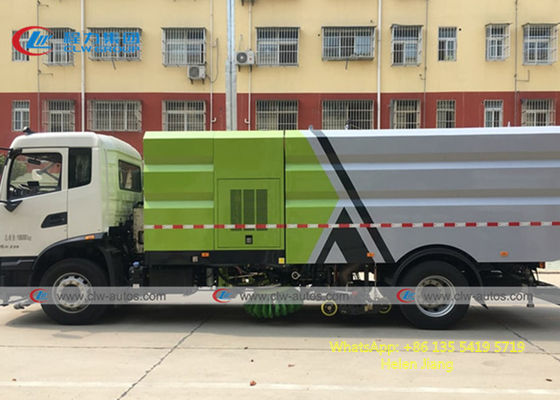

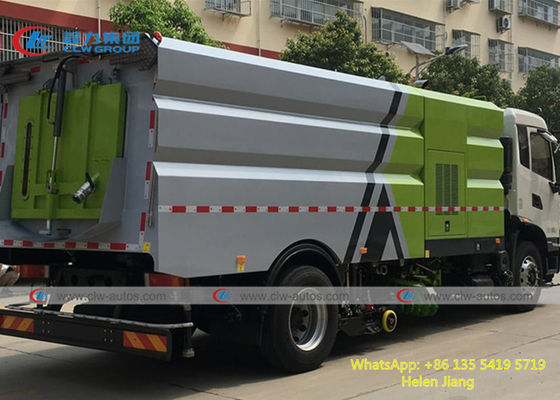

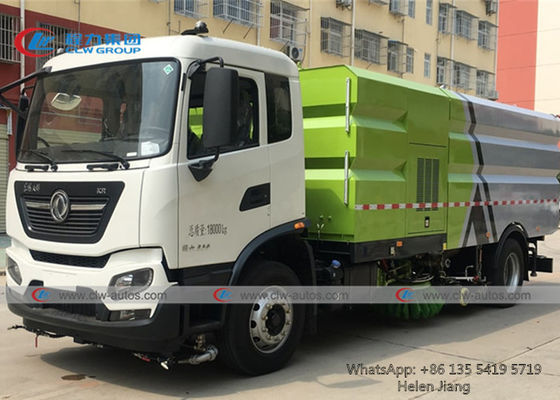

More pictures for Road Washing Street Cleaning Sweeper:

Dongfeng Tianjin 4x2 8 Ton Road Washing Truck 0Dongfeng Tianjin 4x2 8 Ton Road Washing Truck 1Dongfeng Tianjin 4x2 8 Ton Road Washing Truck 2Dongfeng Tianjin 4x2 8 Ton Road Washing Truck 3Dongfeng Tianjin 4x2 8 Ton Road Washing Truck 4Dongfeng Tianjin 4x2 8 Ton Road Washing Truck 5



ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • 12 independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • LPG/Truck Sold to 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
