SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck

Büyük resim : SINOTRUK HOWO 4x2 Heavy Duty 8T Flatbed Wrecker Towing Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC SGS BV
Model numarası:	CLW5136

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Hesapta depozito alındıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Aylık 500 Adet

İletişim

Detaylı ürün tanımı

Şasi markası:	Foton, DONGFENG,ISUZU,FAW,HOWO,JAC,JMC	Çekme kapasitesi:	5ton,5ton,5t,8ton,8t,8ton
Renk:	Beyaz, sarı, mavi özelleştirilmiş olarak	Direksiyon:	LHD, RHD, sağdan direksiyonlu, soldan direksiyonlu
MOTOR:	245hp	Tamirci Tipi:	Bir-iki-bir-bir-bir-çekiyor
Vurgulamak:	8T Flatbed Wrecker Towing Truck , SINOTRUK HOWO Wrecker Towing Truck , SINOTRUK HOWO 4x2 Wrecker Tow Truck

SINOTRUK HOWO 4X2 heavy duty 8tons Flatbed Wrecker Towing Trucks emergency recovery trucks

Product Description

Wrecker truck, full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck.
It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.
Wrecker truck basically is refitted from the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.
Customerized is acceptable ,pls kindly advise details as below:

1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.

2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.

3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.

4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.

5. We have different brands of truck chassis to make the wrecker tow truck.

6. The tow truck chassis are Foton, SINOTRUK HOWO, Dongfeng, FAW, ISUZU, JAC etc.

Product Specification

CHASSIS PARAMETER
Chassis model				SINOTRUK HOWO
Specification	Dimension	LxWxH		8400x2480x3050 mm
	GVW			18000kg
	Engine brand and model			Yuchai
	Engine power			180kw/245HP
	Emission standard			Euro VI
	Tyre			10.00R20
	Max speed			95 km/h
	Front/Rear Axles			7Tons + 13Tons
TOWING PARAMETER
Towing	MaxTowing Capacity		8000 kg
	Max Towing capacity under full extension		2000 kg
	Max effecitve length of towing arm		1700 mm
	Extension stroke		1340 mm

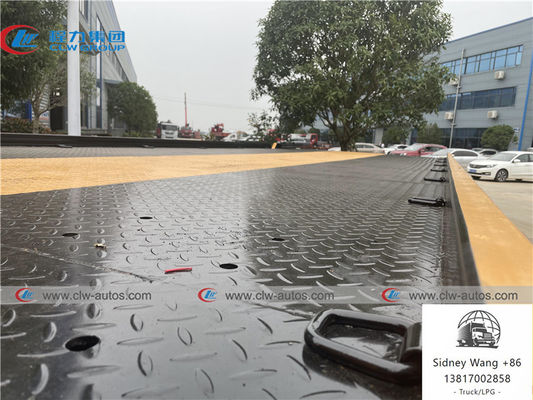

Flatbed	Dimension of the platform		7200×2400 mm
	Rating pulling force of winch		40 KN
	Platform loading capacity		8000 kg
	Min obliquity		8°

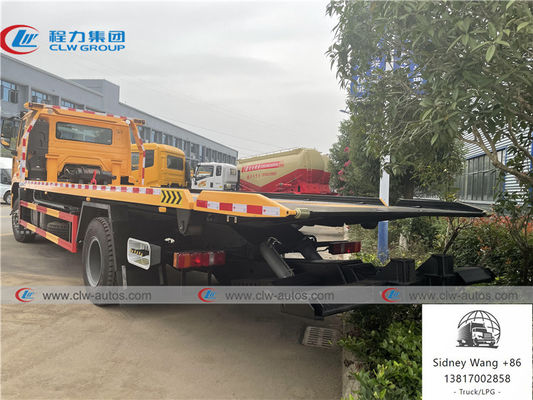

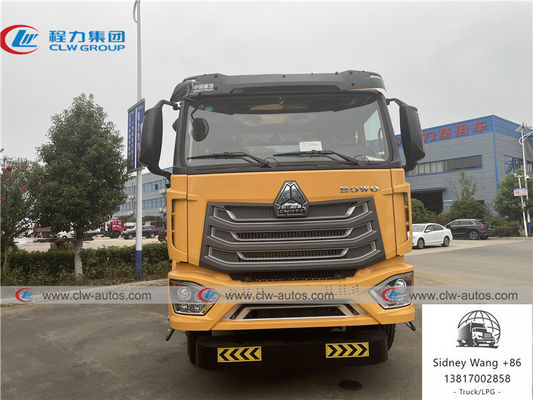

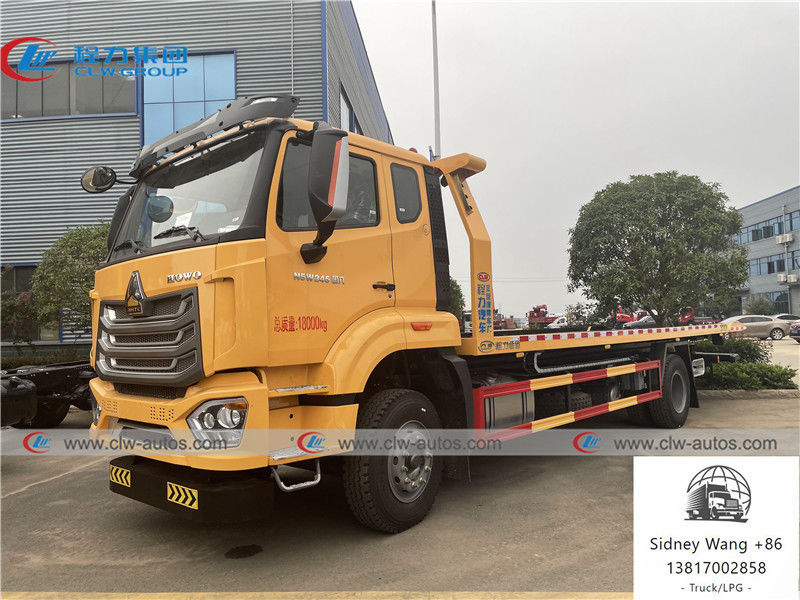

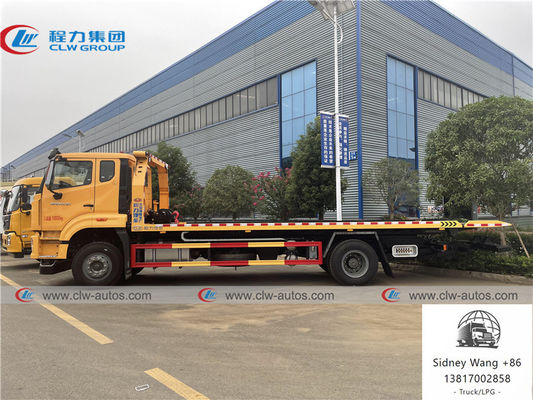

Reference photos

Parts diagram

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp

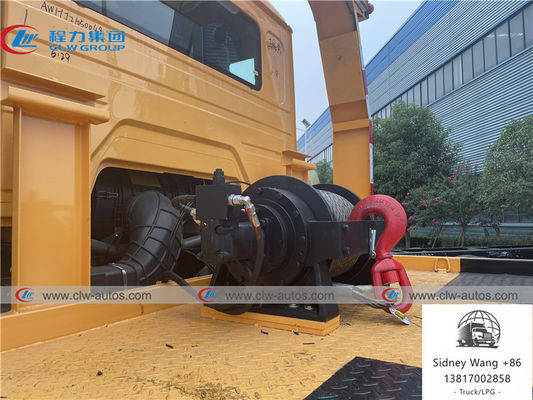

4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Factory overview

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
