Dongfeng Duolica 4x2 6000L Rear Load Garbage Compactor Truck

Büyük resim : Dongfeng Duolica 4x2 6000L Rear Load Garbage Compactor Truck

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW / Chengli
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5144

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket, toplu gemi, ro-ro
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Kutu malzemesi:	Karbon Çeliği Q235B	Kamyon markası:	Dongfeng,nasıl,jac,jmc,faw,forland,foton
Kamyon Motoru:	Chaochai motor 102hp,120hp,170hp,190hp	Vites kutusu:	5 ileri ve 1 geri
Yorulmak:	7.00R16, 6 adet ve bir yedek	Direksiyon:	Lhd,soldan direksiyonlu,rhd,sağdan direksiyonlu
Vurgulamak:	Dongfeng Duolica Garbage Compactor Truck , 6000L Garbage Compactor Truck , Dongfeng Duolica Rear Loader Garbage Truck

Dongfeng Duolica 4x2 6m3 4tons garbage compactor truck rear loading waste removal truck

Product Description

1. Garbage collection is simple, with high compression ratio and large loading capacity: the loading capacity is two and a half times of that of the same ton uncompressed garbage truck
2. Job automation: imported computer control system is adopted. Only one driver is required to operate all the filling and discharging operations
3. Good economy: when the special equipment works, the computer control system will automatically control the throttle
4. Turnover mechanism: choose to install the turnover mechanism with garbage cans (or buckets) to lift the garbage cans with multiple capacities. It can be equipped with the national iron hanging drums or plastic hanging drums to forcefully load the garbage into the car and compost and evade

5. Change the dirty appearance of the city and eliminate the secondary pollution

6. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck

7. Easy Full Automatic Operation: electrical control system for loading and unloading operations

8. One Person Operation: Reducing sanitation work, greatly improves the working efficiency

9. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

Product Specifications

Truck Specification
Chassis model			CLW5144
Cab			Dongfeng single row cab
Driving Type			4*2 Left hand driving
Max Speed (km/h)			115
Overall dimension(mm)			6865×1870×2200
GVW( kg)			8200
Mass in working order ( kg)			2460
Wheelbase(mm)			3800
F/R track base (mm)			1569/1530
F/R overhang (mm)			1068/1997
Approach/Departure Angel			22/25
Tire			7.50-16LT 14PR
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear box			5-speed
Bridge	Front axle		3T
	Rear axle		5T
Enging	Model		YC4E140-33
	Fuel Type		Diesel fuel
	Type		Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)		4257
	Max output power/rotate speed (hp /rpm )		140/2800
Braking system	Service Brake		Compressed air brake
	Park Brake		Spring energy
	Auxiliary brake		engine exhaust brake
Eletric system			24v
Upper-Body specification
Material of tank		material : Q235,Thickness :4(mm) side /4(mm) rear
Dirty tank volume		6m³
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Dumping
Time for dumping		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

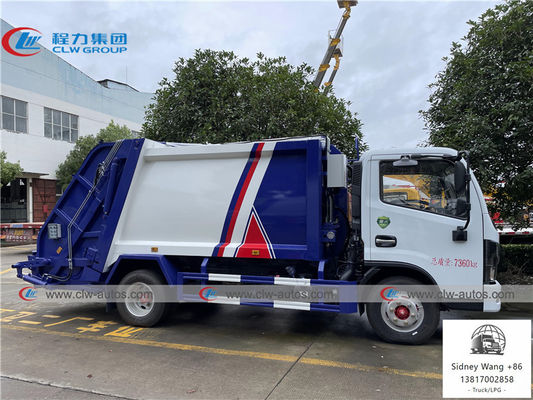

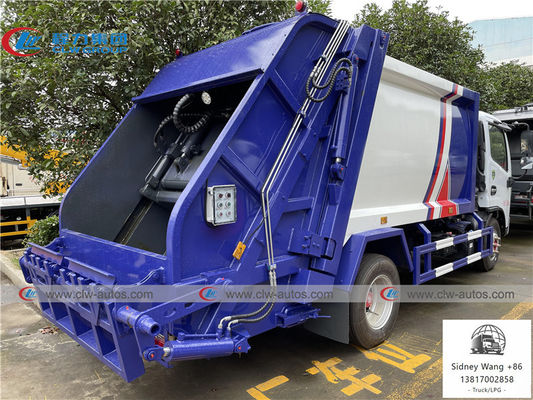

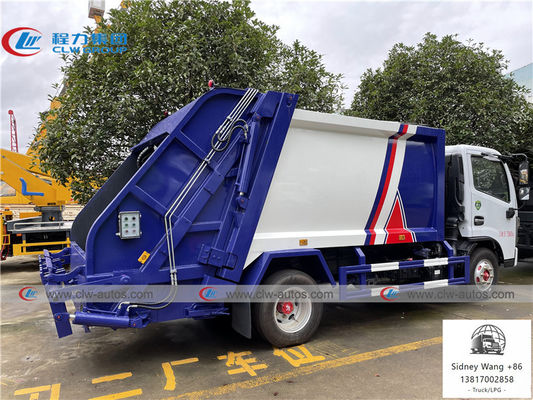

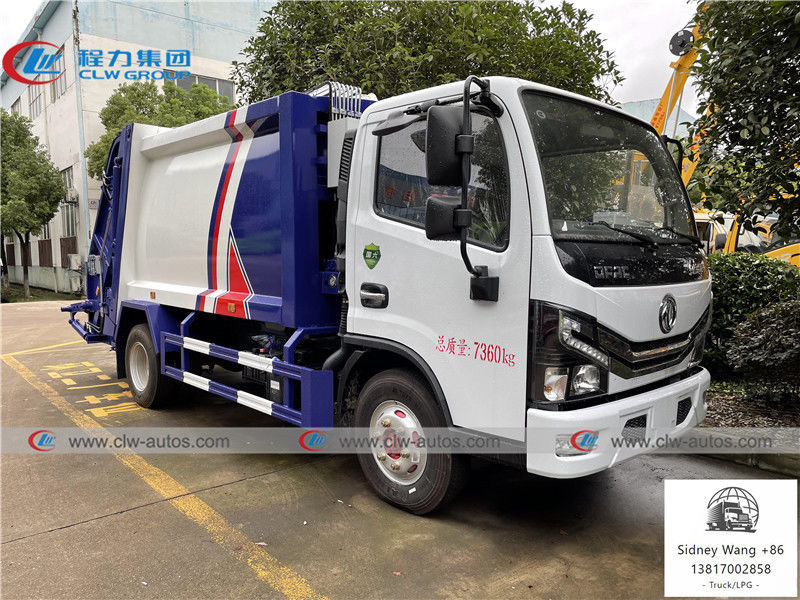

Product Photos

Dongfeng Duolica 4x2 6000L Rear Load Garbage Compactor Truck 2

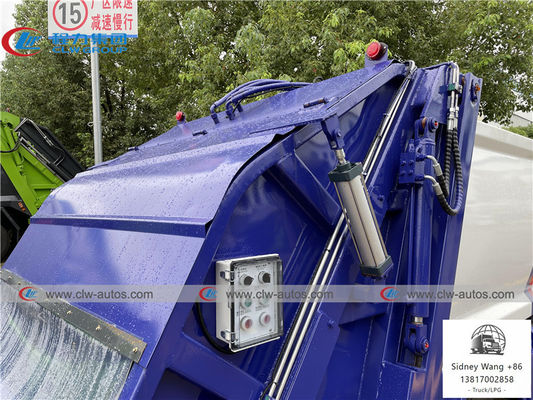

Main parts

Dongfeng Duolica 4x2 6000L Rear Load Garbage Compactor Truck 4

Truck Diagram

Dongfeng Duolica 4x2 6000L Rear Load Garbage Compactor Truck 5

Factory overview

Dongfeng Duolica 4x2 6000L Rear Load Garbage Compactor Truck 7

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
