Foton Mini 1T Seafood Delivery Refrigerator Van Truck

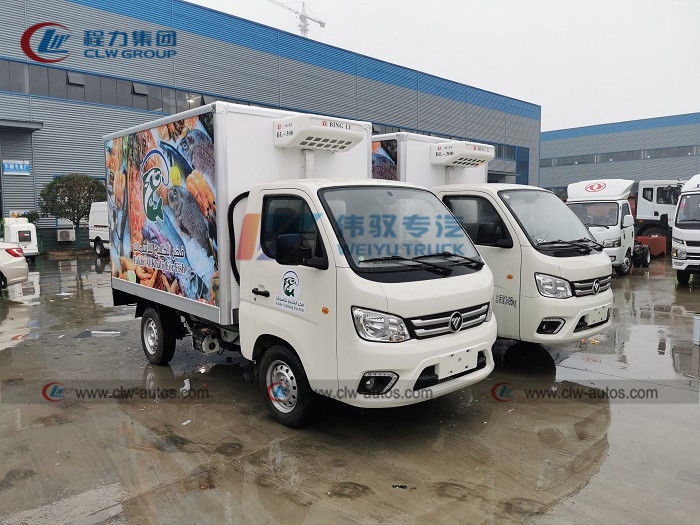

Büyük resim : Foton Mini 1T Seafood Delivery Refrigerator Van Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC, SGS, BV, ASME
Model numarası:	CLW5056A

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

kamyonet malzemesi:	İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük	Sürücü modeli:	4x2/6x4/8x4; Üst yapı büyüklüğüne göre
Tekerlek tabanı:	2600mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm	Van Dış Kalınlığı:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
Van Ara Yatak Kalınlığı:	80mm 100mm 120mm	Van İç Kalınlığı:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
Buzdolabı Kutusu Boyutu:	260017301890 (mm)	Buzdolabı Modeli:	Çinli Ünlü Markalar
Uygulanabilir sıcaklık:	-18~0 Derece, müşterinin istekleri doğrultusunda	Logo ve Resim:	Müşterinin isteğine göre
Teslim süresi:	30-35 iş günü	Garanti:	1 yıl
Vurgulamak:	Seafood Delivery Refrigerator Van Truck , Foton Mini Refrigerator Van Truck , 1T Refrigerated Box Truck

Good Price Foton Mini 1ton Petrol Seafood and Fish Delivery Refrigerator Van Truck

Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Product Specification

General Technical Parameters
Overall Dimension	520022502400(mm)		Gross Vehicle Weight	3300(Kg)
Curb Weight	2300(Kg)		Loading Weight	1000(Kg)
Chassis Specification
Chassis parameters	Chassis Brand		Foton
	Cabin		Single, Left Hand Driving, with A/C
	Engine	Model	4 Cylinders
		Power	112HP
		Emission standard	EURO 5
		Displacement	2.999L
		Fuel type	Diesel
	Gearbox		5 Forward & 1 Reverse Gear
	Front and Rear Axle load		2T/3T
	Wheel base		2600(mm)
	Overhang( Front/Rear)		1130/1505(mm)
	Angle(Approach/departure)		20/16(°)
	Brake System		Air brake
	Steering Gear		Power Assistant
	Tire		6 Pieces with 1 Spare Tire
	Maximum speed		105(km/h)
Superstructure
Van	Box size		260017501800(mm)
	Material		Fiberglass
	Insulating Layer		10cm Polyurethane Foam
Truck refrigeration unit	Brand		Famous Chinese Brand
	Model		BL300
	Applicable temperature (ºC)		-15~0
Remarks	Part Optional: Ventilation slot Hook External power supply Side door

Reference Photos

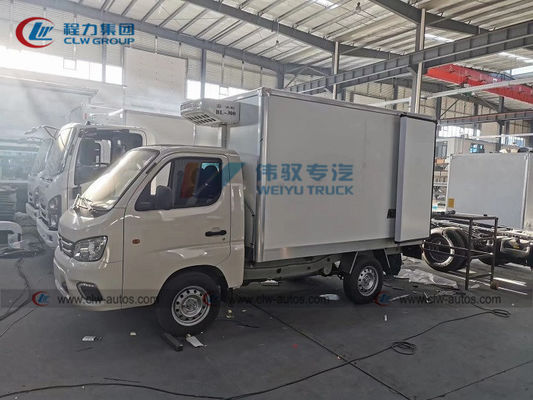

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 0

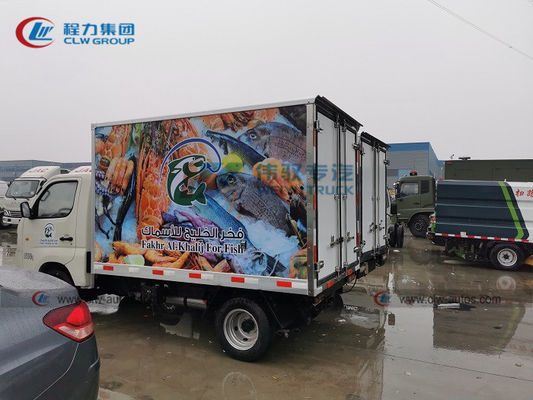

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 1

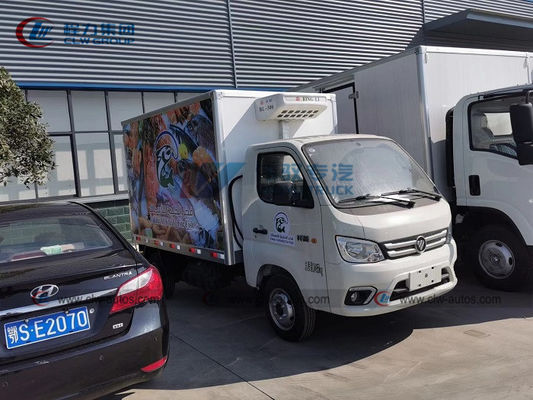

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 2

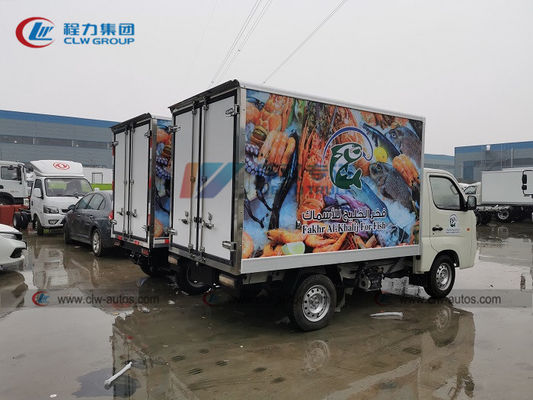

Foton Mini 1T Seafood Delivery Refrigerator Van Truck 3

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
