HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa ÜrünlerSoğutmalı Kasalı Kamyon

JMC 5T Small Refrigerator Truck For Fresh Fish Transport

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

JMC 5T Small Refrigerator Truck For Fresh Fish Transport

JMC 5T Small Refrigerator Truck For Fresh Fish Transport
JMC 5T Small Refrigerator Truck For Fresh Fish Transport JMC 5T Small Refrigerator Truck For Fresh Fish Transport JMC 5T Small Refrigerator Truck For Fresh Fish Transport JMC 5T Small Refrigerator Truck For Fresh Fish Transport JMC 5T Small Refrigerator Truck For Fresh Fish Transport JMC 5T Small Refrigerator Truck For Fresh Fish Transport

Büyük resim :  JMC 5T Small Refrigerator Truck For Fresh Fish Transport

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: ISO, CCC, SGS, BV, ASME
Model numarası: CLW5056A

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Howo, Foton, Isuzu, JMC, vb. Motor gücü: 115hp
Buzdolabı Kutusu Boyutu: 4150*1750*1750(mm) kamyonet malzemesi: İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük
Van Dış Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm Van Ara Yatak Kalınlığı: 80mm 100mm 120mm
Van İç Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm yükleme ağırlığı: 3-5 ton
Buzdolabı Modeli: Thermo King, Taşıyıcı, Hanxue, Huatai, Bingli Şasi markası: Isuzu, Dongfeng, Foton, Howo vb.
Sürücü modeli: 4x2/6x4/8x4; Üst yapı büyüklüğüne göre Tekerlek tabanı: 2600mm 3360mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm
Teslim süresi: 30-35 iş günü Logo ve Resim: Müşterinin isteği olarak.
Garanti: 1 yıl
Vurgulamak:

JMC Small Refrigerator Truck

,

5T Small Refrigerator Truck

,

JMC Freezer Delivery Truck

JMC 5 Tons Small Refrigerator Box Truck Light Freezer Refrigerated Truck











Product Description

1. Fresh fish transported truck is also called fresh live fishes truck, seafood transported truck, etc. With the functions of long transported time, large fish capacity, wide range of application, high survival rate, small exterior climate affects, etc. At present, this is the leading vehicles for long term distance.
2. the fish tank volume from 8cbm to 13cbm. Independent pump room Oxygen unit. the transportedcapacity of the fresh live fish transported truck usually 200kgs fish with 1cbm water. We can control the transported capacity according to the size of fish and time of transporting.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Product Specification

Item No. Parameters
Overall Dimension 5995*1950*2900(mm)
Gross Vehicle Weight 4495kg
Curb Weight 2800kg
Wheel Base 3360mm
Front/rear Tread 1120/2075mm
Approach/Departure Angle 21/20 degree
Gearbox 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Engine
Engine horsepower 115HP EURO 2or3
Displacement 2.771L (Diesel)
Max Driving Speed 98 km/h
Cabin 2 Passengers
Tire 7.00R16, 6pcs + 1 spare tire
Carriage Body
Size: 4150*1750*1750(mm)
Body Material Strong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.
Refrigerator High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree.

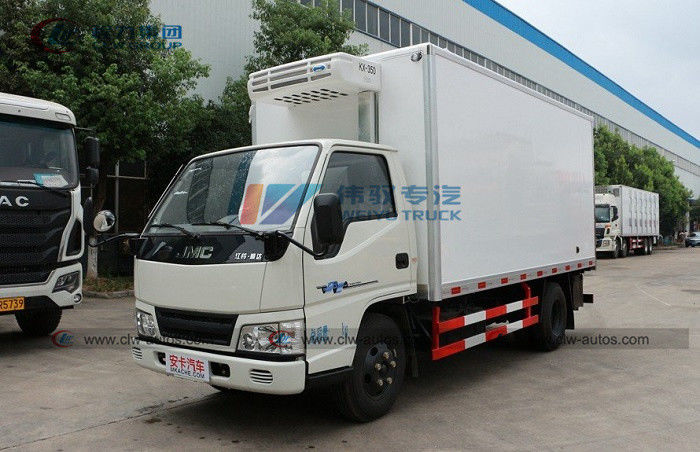

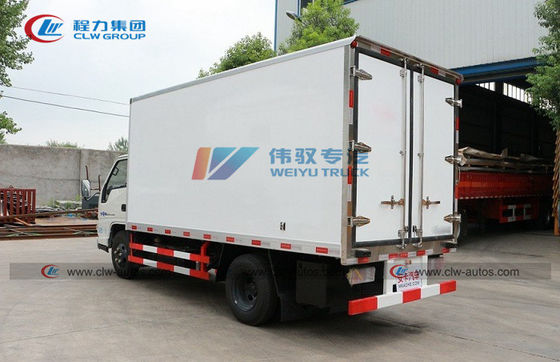

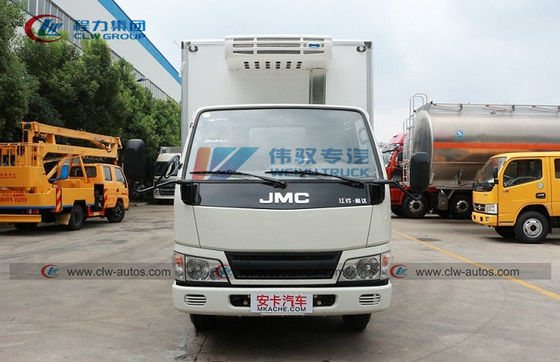

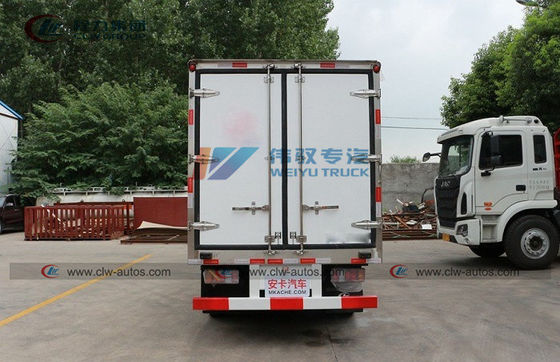

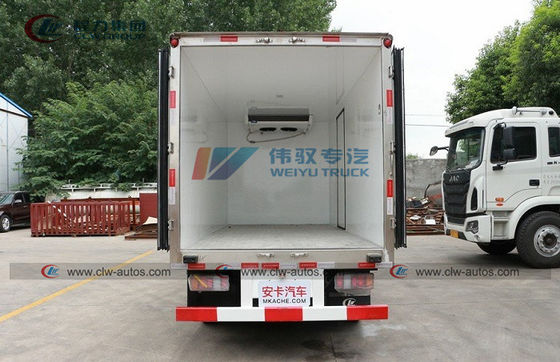

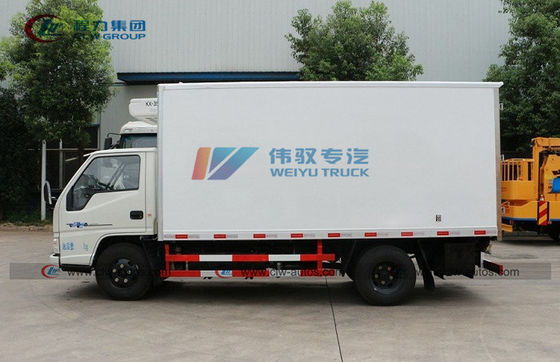

Reference Photos

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 0

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 1

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 2

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 3



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
