HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa ÜrünlerSoğutmalı Kasalı Kamyon

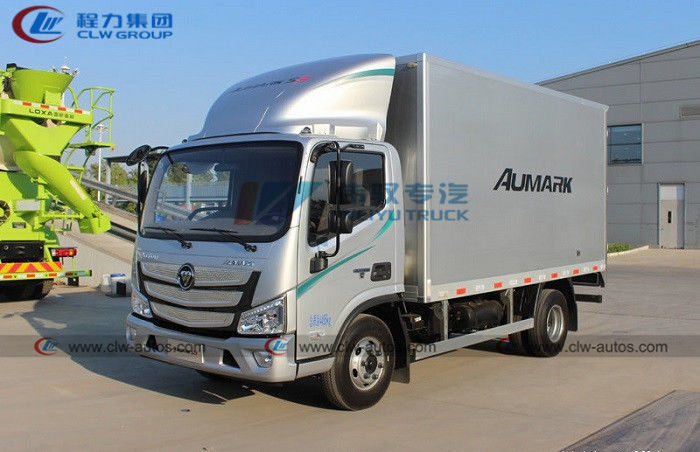

Foton 5 Ton Vaccine Transport Refrigerated Box Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Foton 5 Ton Vaccine Transport Refrigerated Box Truck

Foton 5 Ton Vaccine Transport Refrigerated Box Truck
Foton 5 Ton Vaccine Transport Refrigerated Box Truck Foton 5 Ton Vaccine Transport Refrigerated Box Truck Foton 5 Ton Vaccine Transport Refrigerated Box Truck Foton 5 Ton Vaccine Transport Refrigerated Box Truck

Büyük resim :  Foton 5 Ton Vaccine Transport Refrigerated Box Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: ISO, CCC, SGS, BV, ASME
Model numarası: CLW5056A

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Howo, Foton, Isuzu, JMC, vb. Sürücü modeli: 4x2/6x4/8x4; Üst yapı büyüklüğüne göre
Tekerlek tabanı: 2600mm 3360mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm Buzdolabı Kutusu Boyutu: 4150*1750*1750(mm)
kamyonet malzemesi: İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük Van Dış Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm
Van Ara Yatak Kalınlığı: 80mm 100mm 120mm Van İç Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm
yükleme ağırlığı: 3-5 ton Buzdolabı Modeli: Thermo King, Taşıyıcı, Hanxue, Huatai, Bingli
Şasi markası: Isuzu, Dongfeng, Foton, Howo vb. Uygulanabilir sıcaklık: -18~0 Derece
Teslim süresi: 30-35 iş günü Logo ve Resim: Müşterinin isteği olarak
Garanti: 1 yıl
Vurgulamak:

Vaccine Transport Refrigerated Box Truck

,

5 Ton Refrigerated Box Truck

,

Foton Freezer Van Truck

Foton 5 Tons Fresh Seafood Vegetables Vaccine Transport Refrigerated Vehicles Freezer Van Truck









Product Description

-- Refrigerated trucks are often used to transport frozen food (freezer trucks), dairy products (dairy trucks), vegetables and fruits (fresh goods trucks), vaccine drugs (vaccine trucks), etc. A refrigerated truck is a special refrigerated transport vehicle equipped with a refrigeration unit with a refrigeration unit and a polyurethane insulation compartment. The refrigerated vehicle can be classified according to the carrying capacity of the chassis, the type of the compartment, and the refrigeration unit.



-- Refrigerated truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc,jac refrigerated truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 refrigerated truck;

3) according to temperature request during delivery,there are fresh transport refrigerated truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .



-- The freezer box is with high quality temperature preservation material.The surface is optional for fiberglass,color plate,aluminum alloy or stainless steel and 80mm PU foam in middle to ensure perfect insulation.



-- The refrigerated unit brand is optional,such as: themo king,carrier,chinese brand hanxue,huatai, etc.

-- According to power supplying method,one type is vehicle engine powered refrigerated unit through PTO and another is powered by seperately carried power unit.



Foton 5 Ton Vaccine Transport Refrigerated Box Truck 0whatsapp Lea for more details+86 155 2791 1810.



Product Specification

Technical Specification
Chassis FOTON
Cabin 3 Passengers
Drive 4*2 Left hand drive or right hand drive
Wheelbase 3360 mm
Rated Loading weight 5000 kg
Tyre Size 7.50R16
Quantity 6+1 Spare
Brake Service Front drum/Rear drum hydraulic brake
Parking Central drum brake
Auxiliary Exhaust brake
System ABS (anti-lock brake system)
Transmission Gear 8-Speed (manual)
Steering Power-assisted
Auxiliary Clutch booster
Engine Fuel Diesel
Intake Turbocharged
Form Water cooling
Cylinder 4 (In-line)
Max. Power 120 hp
Upper Body
Refrigerated Van Dimension (internal) 4200*2250*2300 mm (L*W*H)
Thickness Roof 80 mm
Wall 80 mm
Floor 80 mm
Material Inner Glass fiber reinforced plastics (GFRP)
Outer
Insulation Material Polyurethane foam (PUF)
Thickness 8 mm
Assembly Floor Non-slip checkered plate
Door/lock Stainless steel
Seal Industrial-purpose rubber
Refrigerator unit Brand thermo king, can be optional.
Model KL700
Temprature -15~0ºC
Refrigerator Unit Model R404-A
Charge 4.5 kg
Refrigerator Capacity
Driven by Truck engine 0ºC -15ºC
4950 w 2870 w
Compressor
Air volume 2850 m³/h
Weight
Evaporator 16.5 kg
Condenser 26.9 kg
Dimension
Evaporator 985*585*180 mm (L*W*H)
Condenser 925*430*300 mm (L*W*H)
Accessories
Defrosting Hot gas defrost (Automatically)
Adjustment device Electronic digital display
Safety protect High and low pressure switch



Reference Photos

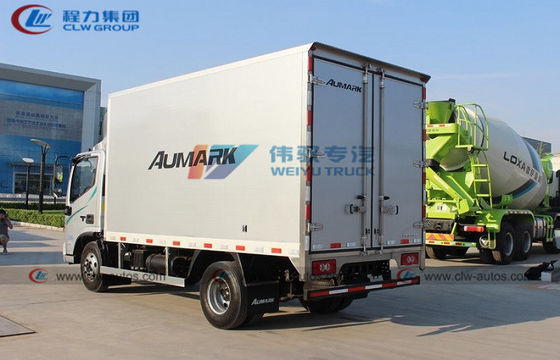

Foton 5 Ton Vaccine Transport Refrigerated Box Truck 1

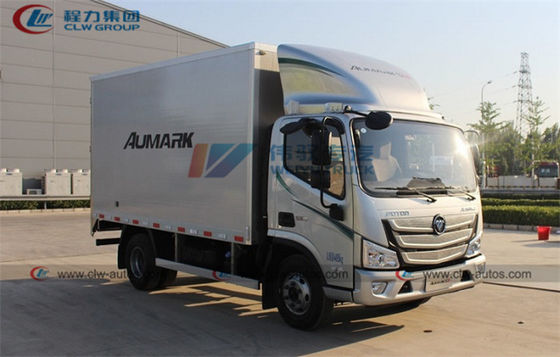

Foton 5 Ton Vaccine Transport Refrigerated Box Truck 2

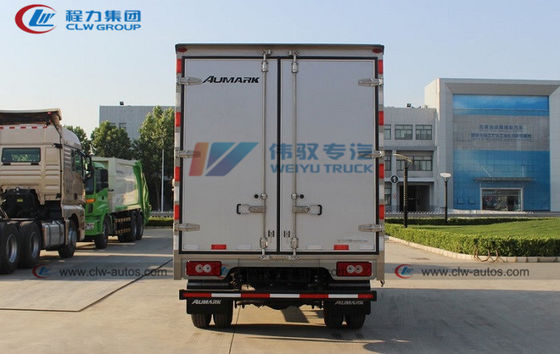

Foton 5 Ton Vaccine Transport Refrigerated Box Truck 3

Foton 5 Ton Vaccine Transport Refrigerated Box Truck 4



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
