2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport

2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport
2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport

Büyük resim :  2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: ISO, CCC, SGS, BV, ASME
Model numarası: CLW5056A

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Howo, Foton, Isuzu, JMC, vb. Buzdolabı Kutusu Boyutu: 4150*1750*1750(mm)
kamyonet malzemesi: İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük Van Dış Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm
Van Ara Yatak Kalınlığı: 80mm 100mm 120mm Van İç Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm
yükleme ağırlığı: 3-5 ton Buzdolabı Modeli: Thermo King, Taşıyıcı, Hanxue, Huatai, Bingli
Şasi markası: Isuzu, Dongfeng, Foton, Howo vb. Sürücü modeli: 4x2/6x4/8x4; Üst yapı büyüklüğüne göre
Tekerlek tabanı: 2600mm 3360mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm Teslim süresi: 30-35 iş günü
Logo ve Resim: Müşterinin isteği olarak. Garanti: 1 yıl
Vurgulamak:

Foton Refrigerated Box Truck

,

4T Refrigerated Box Truck

,

Foton Refrigerator Box Truck

2t 3t 4t Foton Refrigerated Ice Cream/Meat/Fruit/Vegetable/Food/Vaccine Freezer Transport Refrigerator Truck









Product Description

-- Refrigerated trucks are often used to transport frozen food (freezer trucks), dairy products (dairy trucks), vegetables and fruits (fresh goods trucks), vaccine drugs (vaccine trucks), etc. A refrigerated truck is a special refrigerated transport vehicle equipped with a refrigeration unit with a refrigeration unit and a polyurethane insulation compartment. The refrigerated vehicle can be classified according to the carrying capacity of the chassis, the type of the compartment, and the refrigeration unit.



-- Refrigerated truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc,jac refrigerated truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 refrigerated truck;

3) according to temperature request during delivery,there are fresh transport refrigerated truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .



-- The freezer box is with high quality temperature preservation material.The surface is optional for fiberglass,color plate,aluminum alloy or stainless steel and 80mm PU foam in middle to ensure perfect insulation.



-- The refrigerated unit brand is optional,such as: themo king,carrier,chinese brand hanxue,huatai, etc.

-- According to power supplying method,one type is vehicle engine powered refrigerated unit through PTO and another is powered by seperately carried power unit.



2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 0whatsapp Lea for more details+86 155 2791 1810.



Product Specification

Item No. Parameters
Overall Dimension 5995*1970*3100(mm)
Gross Vehicle Weight 4495kg
Curb Weight 2800kg
Wheel Base 3360mm
Front/rear Tread 1120/2075mm
Approach/Departure Angle 21/20 degree
Gearbox 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Engine
Engine horsepower 130HP EURO 2or3
Displacement 2.8L (Diesel)
Max Driving Speed 90 km/h
Cabin 2 Passenger
Tire 7.00R16, 6pcs + 1 spare tire
Carriage Body
Size: 4085*1800*1850(mm)
Body Material Strong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.
Refrigerator High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree.



Reference Photos

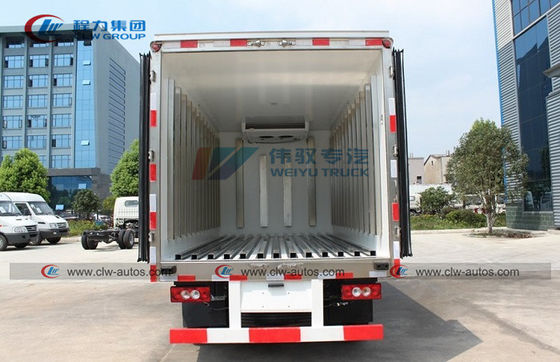

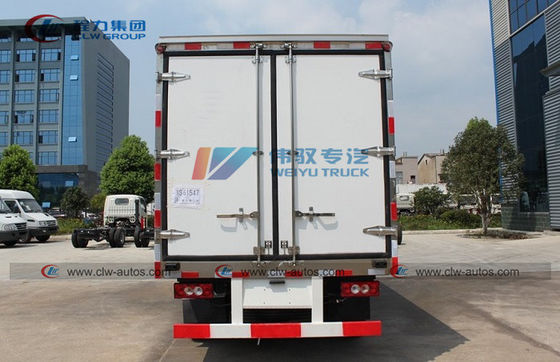

2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 1

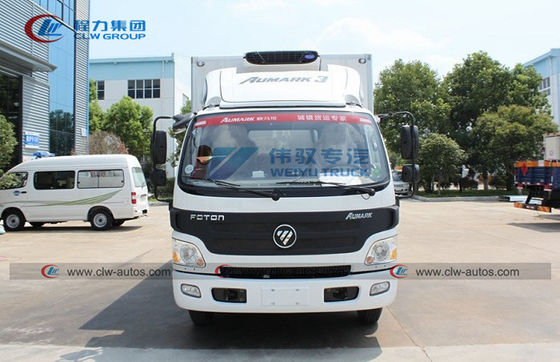

2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 2

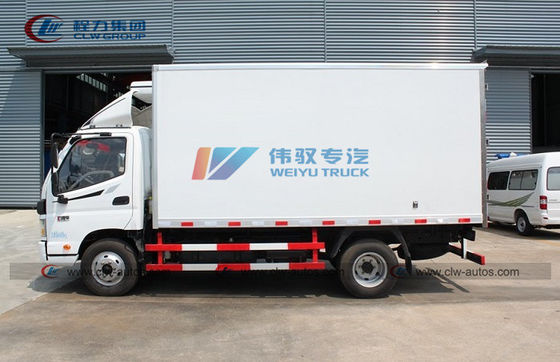

2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 3

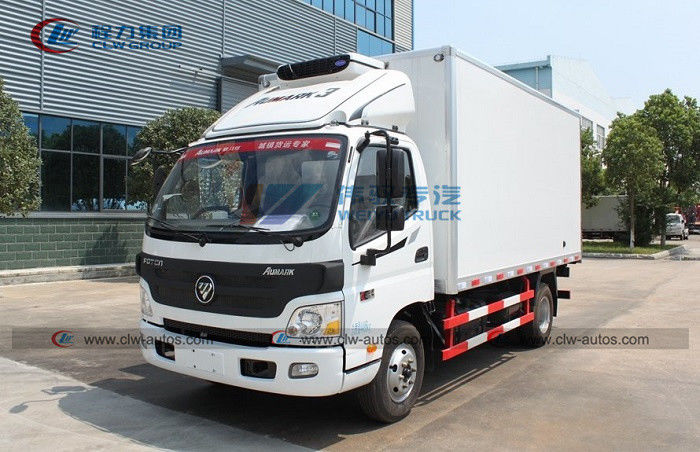

2 3 4T Foton Refrigerated Box Truck For Ice Cream Transport 4



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
