10000 Liters 5 Tons LPG Skid Station With Carbon Steel Q345R Tank

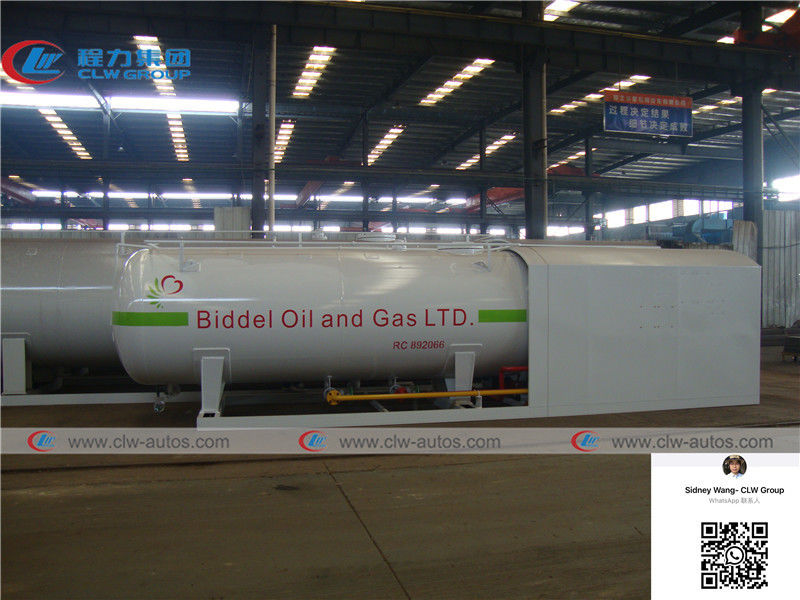

Büyük resim : 10000 Liters 5 Tons LPG Skid Station With Carbon Steel Q345R Tank

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW
Sertifika:	CCC ISO ASME
Model numarası:	CLW5643

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	15,890-22,850usd
Ambalaj bilgileri:	çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T
Yetenek temini:	200 adet/ay

İletişim

Detaylı ürün tanımı

Satış sonrası servis sağlandı:	Yedek parça temini ve mühendis desteği	Tanker hacmi:	10CBM/10000Litre/5MT/5ton
Tank malzemesi:	Q345R/SA516	Yükleme malzemesi:	Propan/sıvılaştırılmış petrol gazı/LPG
Tasarım baskısı:	1.77mpa	Orta Yoğunluk:	20Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³
Mekanik özellik testi:	Çekme, Mukavemet, Darbe testi	Kabuk ve Uç Plakanın Kalınlığı:	10 mm
Durum:	Yeni Baskılı	Renk:	Özelleştirilmiş
Kullanmak:	LPG,LPG/PROPAN	Garanti:	1 yıl
Vurgulamak:	5 Tons LPG Skid Station , 10000 Liters LPG Skid Station , Q345R Tank LPG Refilling Station

10000liters 5Tons LPG skid Station LPG Tank with pump motor and Cylinder Filling Scales safty accessories

Product Description

1. Skid station is used for refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump

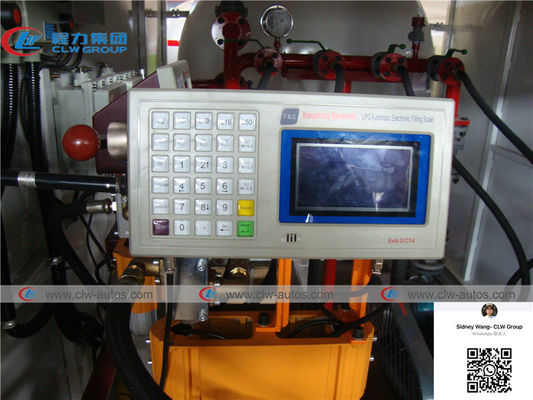

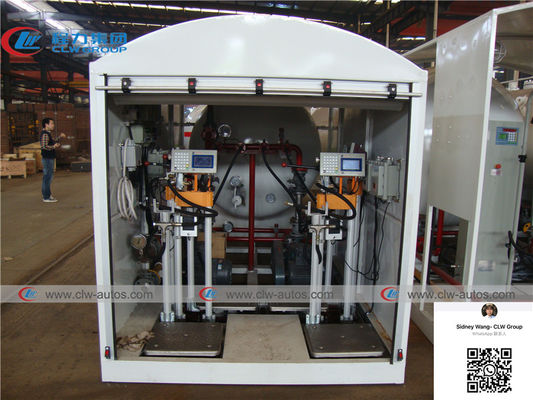

3. Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of skid station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of skid station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline of skid station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment of skid station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system

Technical Specifications

Specification of 5tons 10000L LPG skid station
Volume of Tank	10CBM(10,000liters) 5tons
Filling weight(Kg)	5000
Thickness of Shell (mm)	10 mm
Thickness of Endplate (mm)	10 mm
Tank Diameter (mm)	1600 mm
Tank Dimensions (mm) (length x width x height)	3070X1620X2210mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.71 MPa
Corrosion Allowance	1 mm
Medium Density	500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item	Specification
Specification of the Motor
Model	Chinese famous brand
Revolving speed	1470 r/min
Power	5.5 kw
Voltage	380 V
Protection grade	Anti explosive
Specification of the hydrocarbon Pump
Model	YQB15-5
Medium	Liquid petroleum gas
Speed	15 m3/h
Input and Output Diameter	50 mm
Working pressure	2.0 Mpa
Working temperature	-40ºC- 50ºC
Material	carbon steel

Products Show

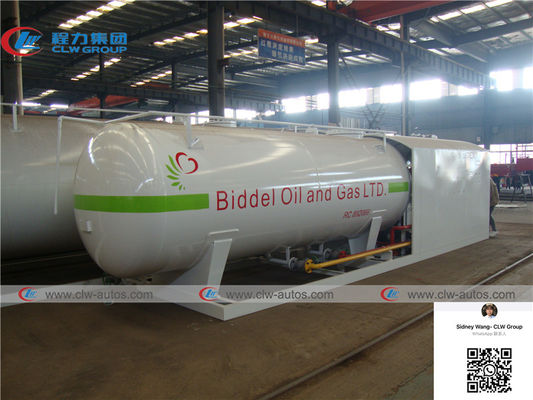

10000 Liters 5 Tons LPG Skid Station With Carbon Steel Q345R Tank 2

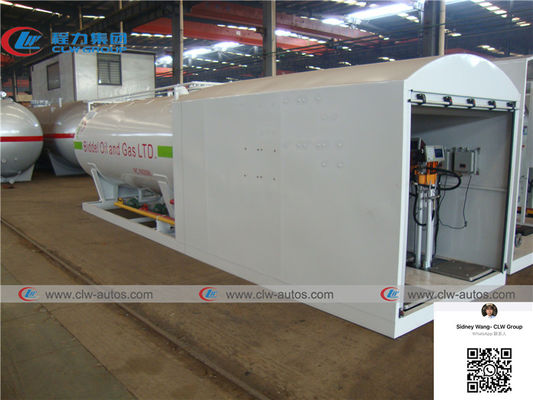

10000 Liters 5 Tons LPG Skid Station With Carbon Steel Q345R Tank 3

Factory overview

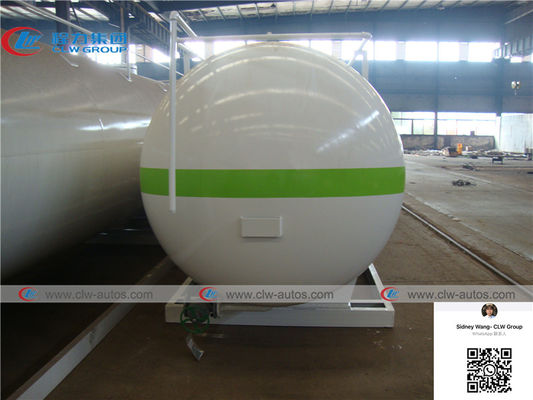

10000 Liters 5 Tons LPG Skid Station With Carbon Steel Q345R Tank 5

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
