HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa ÜrünlerSoğutmalı Kasalı Kamyon

Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck

Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck
Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck

Büyük resim :  Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: ISO, CCC, SGS, BV, ASME
Model numarası: CLW5648

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
Şasi markası: Jinbei, Dongfeng, Howo, Foton, Isuzu, JMC, vb. kamyonet malzemesi: İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük
Van Dış Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm Van Ara Yatak Kalınlığı: 80mm 100mm 120mm
Van İç Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm yükleme ağırlığı: 1-2 ton
Buzdolabı Modeli: Thermo King, Taşıyıcı, Hanxue, Huatai, Bingli Sürücü modeli: 4x2/6x4/8x4; Üst yapı büyüklüğüne göre
Tekerlek tabanı: 2400mm 2900mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm Teslim süresi: 30-35 iş günü
Logo ve Resim: Müşterinin isteği olarak. Garanti: 1 yıl
Vurgulamak:

4x2 Mini Refrigerated Truck

,

Jinbei Mini Refrigerated Truck

,

Jinbei Refrigerated Box Truck

China brand Jinbei 4x2 gasoline engine mini refrigerated truck with refrigerator unit

Product Description
The refrigerated truck is also called refrigerated cold room van truck, freezer lorry, refrigerator van, refrigeration truck, freezer truck,refrigerated cargo truck. It is usually consisted of truck chassis, refrigeration unit, cooling van,etc. It mainly used to transport ice cream, milk , leben, frozen food,etc. The refrigerator van for meat and fish is equipped with meat hook on the inner roof and air trunking at box bottom of the truck.

The freezer unit we usually use are Thermo king, Carrier, Dongin, Hua Tai, Han Xue,etc.
The refrigerated temperature of refrigeration units are 5 degree Celsius below zero, 10 degree Celsius below zero, 15 degree Celsius below zero, 18 degree Celsius below zero. You also can install heating refrigerator to make the temperature above zero in bitter winter.

The material of refrigerator truck can be color plate, fiberglass, stainless steel, aluminium alloy, etc.
The surface of freezer van trucks are smooth and can be pasted with your logo, bill, etc. The inner of
meat transport refrigerated truck body is stainless steel.

As a professional refrigerator carrier truck manufacturer, the freezer cargo van for sale is with light curb weight, good insulation performance, waterproof, corrosion resistance,smooth
surface,clean easily and other advantages. Meanwhile, it is convenient to maintenance if box broken and without any markafter maintenance.


1. Purpose: It is used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.

2. High end brand FOTON good quality chassis, 68HP gasoline engine, 5-speed gearbox, 175R14 tires, etc.
3. Manufactured by our company, best production craft, sandwich structure freezer box, good thermal insulation capacity
4. Very light curb weight, fuel saving, and load more weight of cargoes
5. Truck box new craft, aluminum box edge reinforced, more strength

6. Optional refrigeration unit: -15ºC~0ºC, -5ºC~0ºC, 0ºC~5ºC, not only cooling, we also have heating unit
7. More options on c hassis and enigne, such as Foton, Dongfeng, Howo, Japan brand, JMC, Shacman, etc

Specification
Name Jinbei mini refrigerated truck
Overall dimension 5350×1690×2425mm
Van dimension 2600×1460×1470mm
Van volume 7cbm
Curb weight 1800kg
Max payload 640kg
Drive type Left hand drive
Drive wheel 4X2
Tire 175/70R14LT 4pcs
Front/rear tread 1360mm/1360mm
Front/rear suspension 560/1250mm
Wheelbase 2920mm
Leaf spring number -/6
Engine SWC15M
Emission Euro 6
Displacement 1450ml
Horse power 102hp
Braking system With ABS system
Max speed 130km/h
Fuel type gasoline
Painting With shot blasting and 4 layers painting,color is optional.

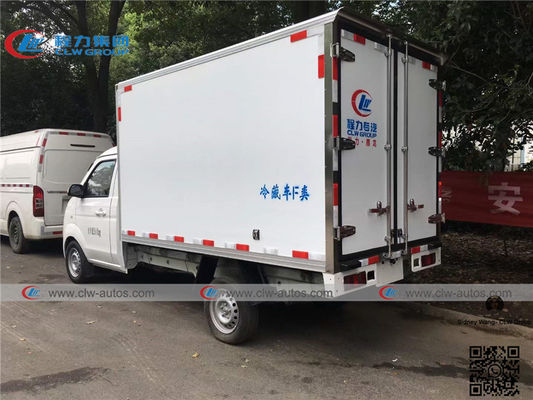

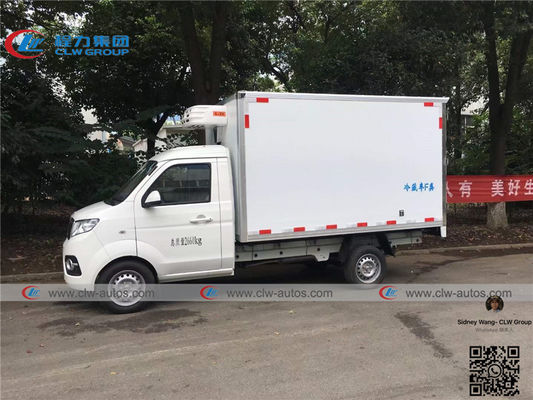

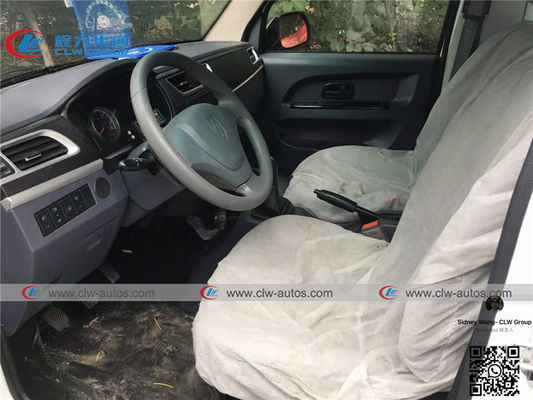

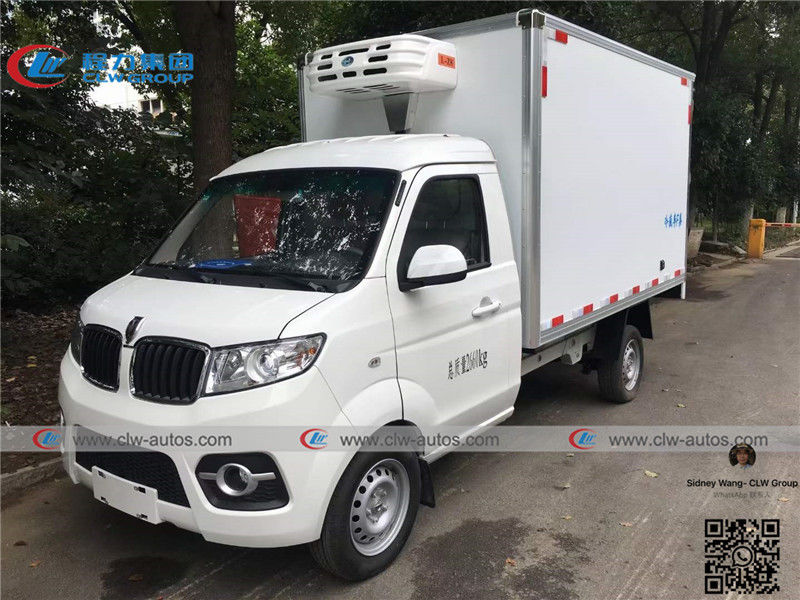

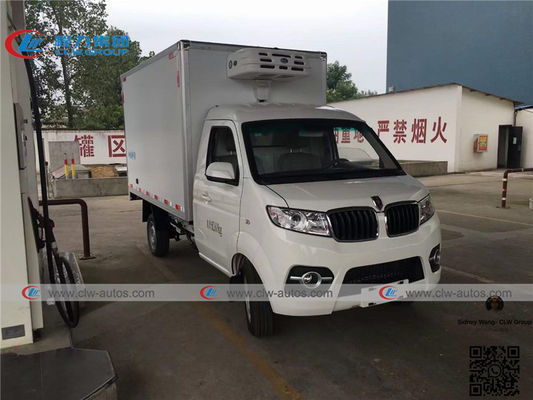

Product Show
Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck 0Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck 1
Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck 2Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck 3


Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck 4

Factory overview
Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck 5
Jinbei 4x2 Gasoline Engine Mini Refrigerated Truck 6

Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!


Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
