JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck

Büyük resim : JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC SGS BV
Model numarası:	CLW5650

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Hesapta depozito alındıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Aylık 500 Adet

İletişim

Detaylı ürün tanımı

Şasi markası:	DONGFENG,ISUZU,FAW,HOWO,JAC,JMC	Çekme kapasitesi:	3ton, 4ton,5ton,5ton,,4t,5t,6ton,6t,6ton
Renk:	Beyaz, sarı, mavi özelleştirilmiş olarak	Direksiyon:	LHD, RHD, sağdan direksiyonlu, soldan direksiyonlu
MOTOR:	115hp,130hp	Tamirci Tipi:	Bir-iki-bir-bir-bir-çekiyor
Vurgulamak:	JAC Wrecker Towing Truck , 5 Ton Flatbed Wrecker Towing Truck , JAC Flatbed Tow Trucks

Hot sale JAC brand 4x2 small wrecker truck 3tons 5tons flatbed wrecker towing truck road recovery truck

Description

1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.

2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.

3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.

4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.

5. Hubei Huilong Special Vhielce is experienced in making different types of wrecker tow truck.

6. We have different brands of truck chassis to make the wrecker tow truck.

7. The tow truck chassis are SINOTRUK HOWO, Dongfeng, Faw, ISUZU, JAC etc.

Specification

Item No.	Parameters
Overall Dimension	7370X2300X2300 mm
Driving ModelL	LHD or RHD
Cabin	2~3 persons
Gross Vehicle Weight	8280 kg
Curb Weight	4850 kg
Loading Weight	4000Kg
Wheel Base	3815,3365,4150 mm
Front/rear Tread	1210/2470 mm
Approach/Departure Angle	24/12 degree
Front Axle	2980 kg
Rear Axle	5300 kg
Engine	CY4102-CE4C
Engine horsepower	91kw/125hp
Displacement	3856mL (Diesel)
Max Driving Speed	95 km/h
Tire	7.50R16 14PR( 7 pieces)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	4000kg
Loading Plate Dimensions	5200*2300mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	4000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
“L” bracket no.	1
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

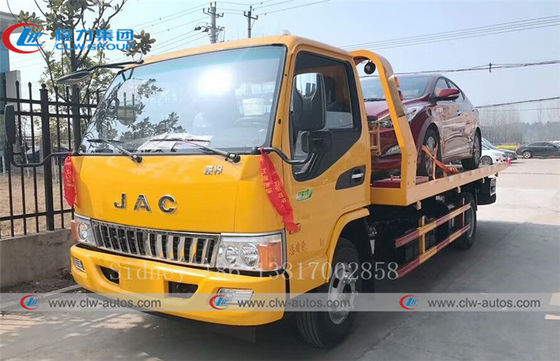

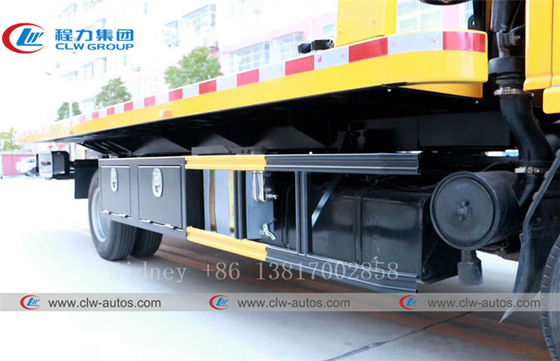

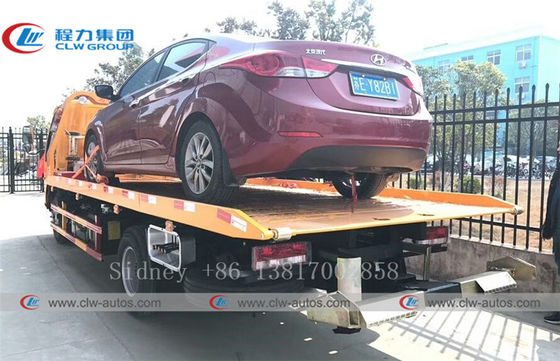

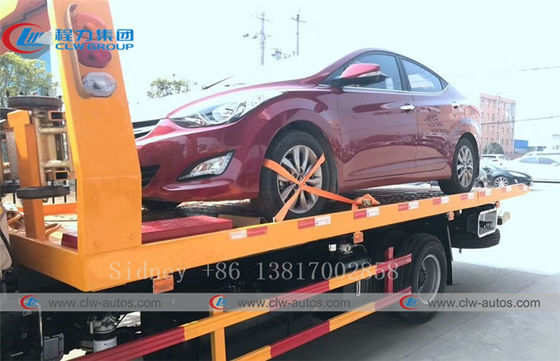

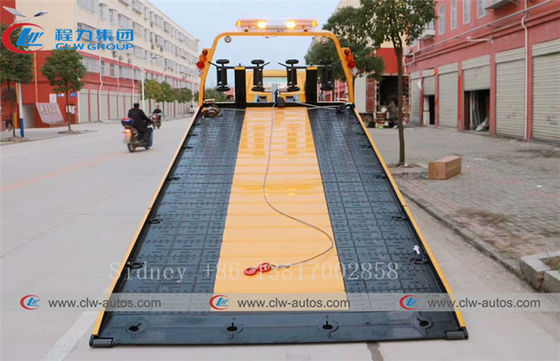

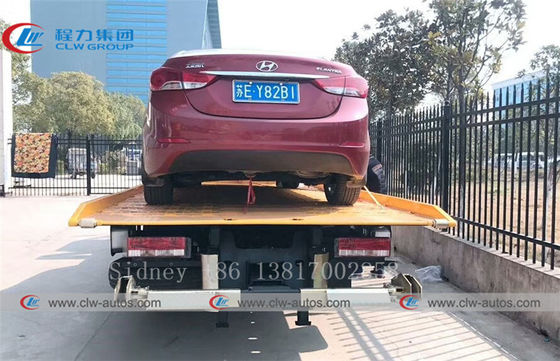

Reference photos

Parts diagram

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Factory overview

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
