210HP 14cbm Refuse Collection Truck With Double Operation System

Büyük resim : 210HP 14cbm Refuse Collection Truck With Double Operation System

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,CE
Model numarası:	CLW52157xet

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

marka:	DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU	Tekerlek tabanı:	4700mm
Çöp konteyneri malzemesi:	Q345B, yüksek yoğunluklu karbon çeliği	Kalınlık:	Hem yan hem de alt kap için 5 mm
Bileşenler:	Yükleme, Sıkıştırma, Boşaltma	Kamp Etki Oranı:	0,6-0,7 Ton/Cbm
İşletim Sistemi:	Biri Kabinde, Biri Kamyonun Arkasında	Garanti:	büyük parçalar için bir yıl
operasyon videosu:	Evet, seçim için Çoklu dil ile	Teknik destek:	20 yıllık deneyimli mühendis ihtiyaç duyduğunuzda size yardımcı olacaktır
Kullanım:	Ev içi çöp taşımacılığı	Logo:	Müşterinin talebine göre
Vurgulamak:	14cbm Refuse Collection Truck , 210HP Refuse Collection Truck , 14cbm Compression Garbage Truck

14cbm Refuse Collection Truck 14m3 Compression Garbage Truck

Compressed garbage truck is the most widely used vehicle type, which realizes efficient transportation by compressing domestic garbage
Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.

Specifications of 14CBM Refuse Collection Truck

Dongfeng 6CBM Compressed Garbage Truck
Overall Dimension	8350×2490×3250 mm	Gross Vehicle Weight		15800 kg
Curb Weight	9850 kg	Loading Weight		5755 kg
Wheel Base	3800 mm	Front / Rear Axle		5000 kg / 10000kg
Cabin	Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio
Engine	Cummins
Engine horsepower	210HP, EURO II
Max Driving Speed	90 km/h
Gear Box	8 Forward Gear, 1 Reverse Gear,
Tire	9.000R20 (6 pieces with one spare)
Garbage Bin	Capacity		14CBM
	Material		5mm Carbon Steel for Garbage Bin Body
	Design		Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	0.6 - 0.7

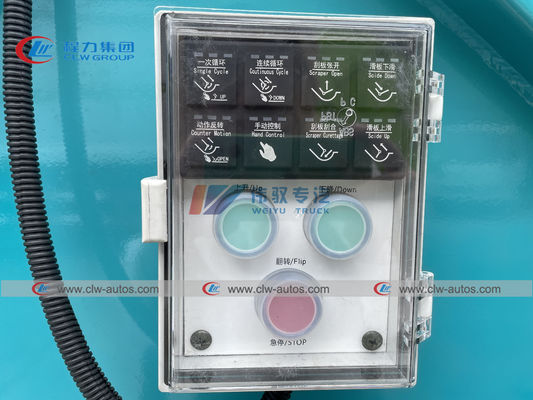

Control System	One control Panel on the back, One Control system in back of Cabin
Working System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time＜14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

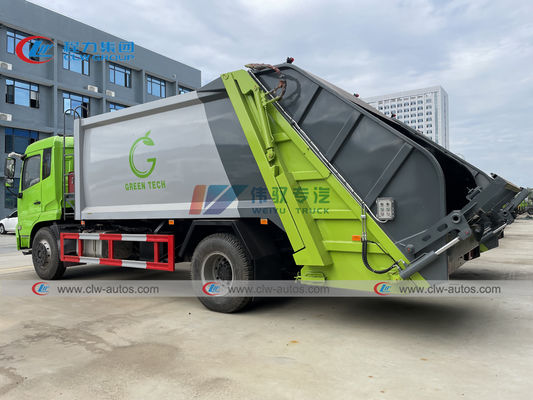

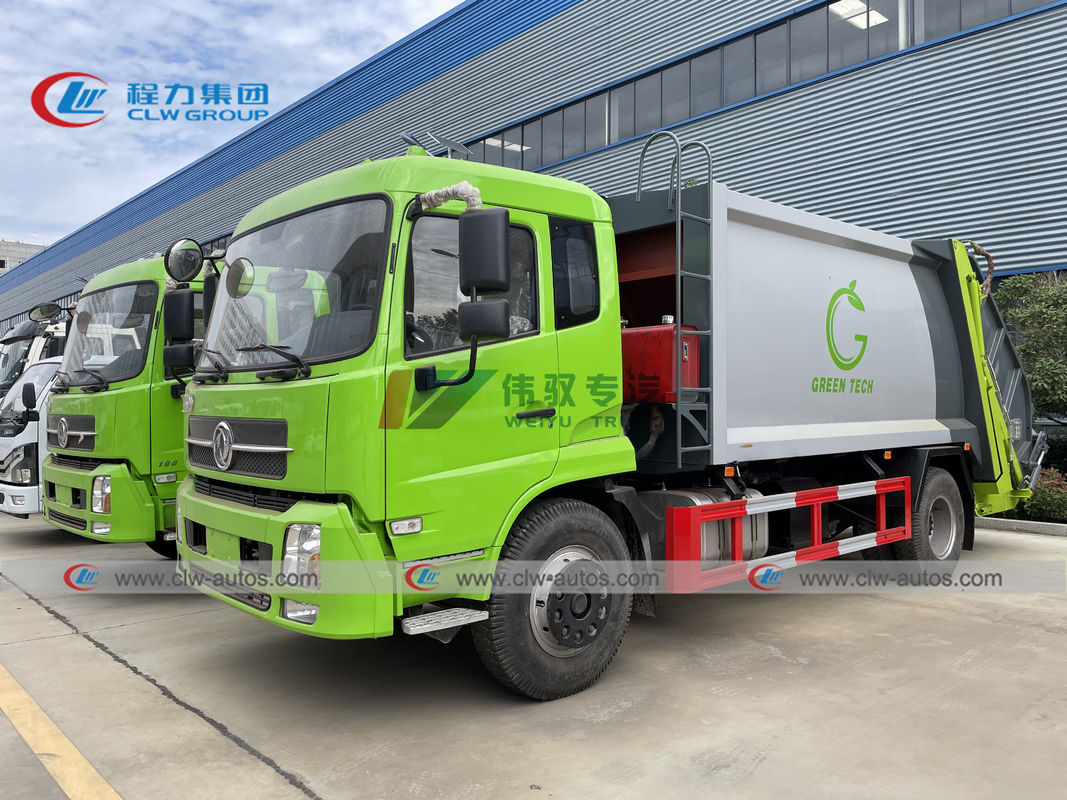

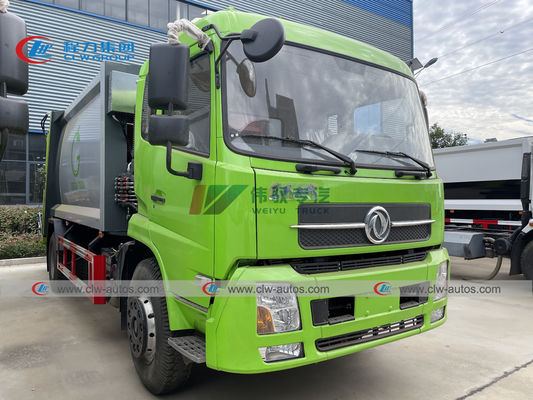

Truck Details:

Diagram

210HP 14cbm Refuse Collection Truck With Double Operation System 3

Working Show

Our Service

Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
