FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck

FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck
FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck

Büyük resim :  FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: ISO, CCC, SGS, BV, ASME
Model numarası: CLW5108

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 25-30 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Howo, Foton, Isuzu, JMC, vb. kamyonet malzemesi: İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük
Van Dış Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm Van Ara Yatak Kalınlığı: 80mm 100mm 120mm
Van İç Kalınlığı: 1,2 mm 1,5 mm 1,8 mm 2,0 mm yükleme ağırlığı: 10-12 ton
Buzdolabı Modeli: Thermo King, Taşıyıcı, Hanxue, Huatai, Bingli Şasi markası: Shacman, Isuzu, Dongfeng, Foton, Howo vb.
Sürücü modeli: 4x2/6x4/8x4; Üst yapı büyüklüğüne göre Tekerlek tabanı: 3300mm 3800mm 4200mm 4500mm 4700mm 5200mm; 4300+1350 mm; 1350mm+4300+1350mm
Teslim süresi: 25-30 iş günü Logo ve Resim: Müşterinin isteği olarak.
Garanti: 1 yıl
Vurgulamak:

30m3 Refrigerated Van Truck

,

FOTON Auman Refrigerated Van Truck

,

10T Refrigerated Transport Trucks

4x2 FOTON Auman 10tons 30cbm refrigerated van truck



Product Description
Refrigerated truck is widely used to transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables, vaccine and drug transporter (vaccine truck), etc



Our refrigerated trucks collected special imported thermal insulation material. The water absorption rate of the insulation board is ≤ 1. The heat conduction coefficient is ≤ 0.028 W/mk, and the compressive acuity ≥ 150 kpa with density 30 ~ 45 kg/m3, using the most advanced fifth-generation closed polyurethane plate bonding structure. The load plate surface materials are optional, such as reinforced fiber glass, stainless steel, aluminum alloy, choi steel, etc.

The body box after molding has advantage of light quality, high coefficient of heat preservation, strong impact resistance, no leakage and good corrosion resistance against the atmosphere, water, acid, alkali, salt and other medias.

Product specifications

Item unit parameter
Vehicle model   FOTON 4x2 left or right hand drive Refrigerated Van Truck
Chassis model   FOTON
Overall dimensions mm 8695×2500×3780
Body internal dimensions 6240×2240×2220
Actual load kg 10000-12000
Mass in working order Appro×7880
Wheel base mm 4700
F/R track base 1940/1800
Approach/departure angle ° 19/10
Exhaust/kw ml/kw 4980/176 (240HP)
Max speed km/h 95
Fuel type Diesel Engine MC05.21-50
Number of axles 2 Axle load 6500/11500
Number of tires 6+1 Tire specification 9.00R20
Configuration

Refrigerator unit is Hanya, hanxue or Thermo King, working temperature is minus 18 celsius degree.

The material of the van surface is FRP, 8 cm thick PU inside.

Introduction The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts.
Production cycle 25-30 working days
Warranty 12 month,from the date of supply

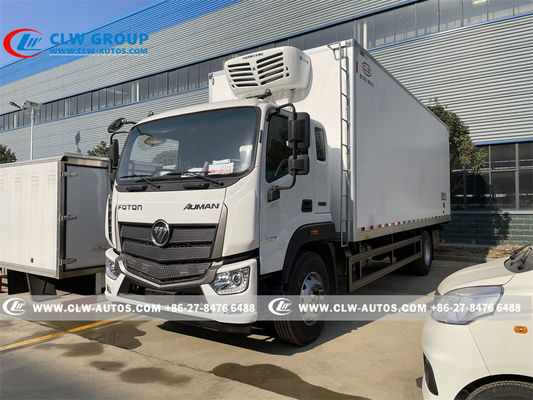

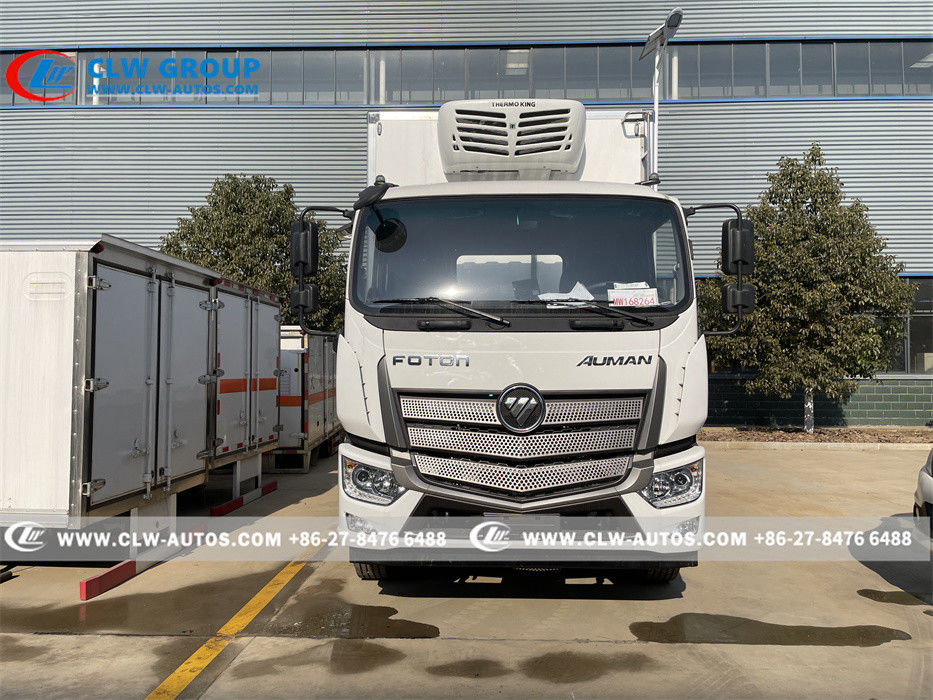

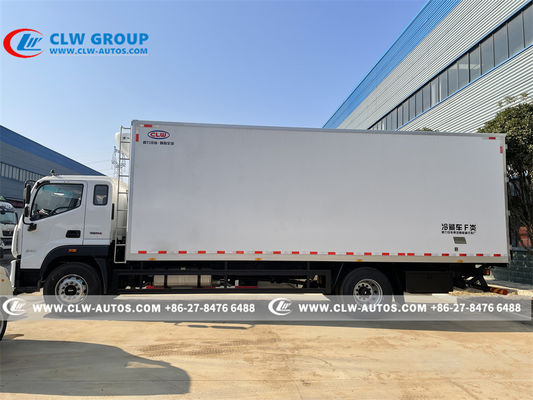

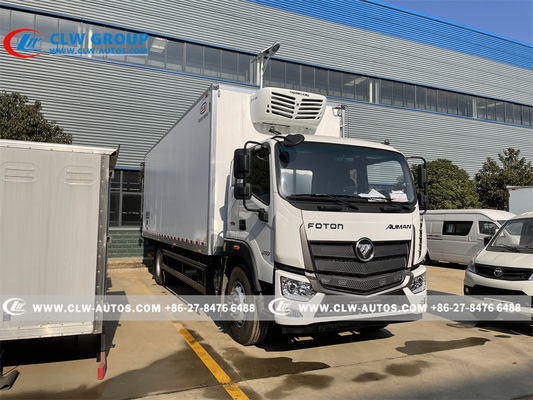

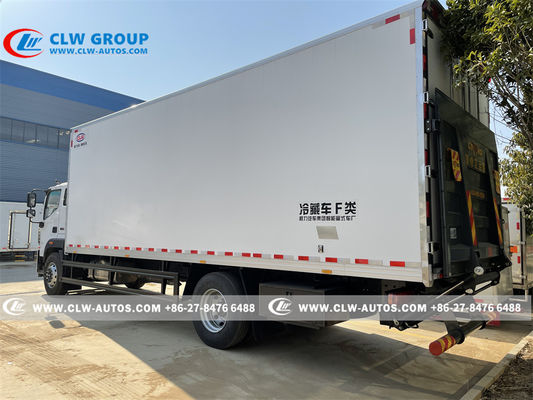

Product pictures

FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck 0FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck 1



FOTON Auman 4x2 10T 30m3 Refrigerated Van Truck 2







Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.



After Sales Service



Email & Phone call tracking for each truck on timely manners.



Shipment



Land transportation or Ship by bulk cargo ship, container, roro ship
