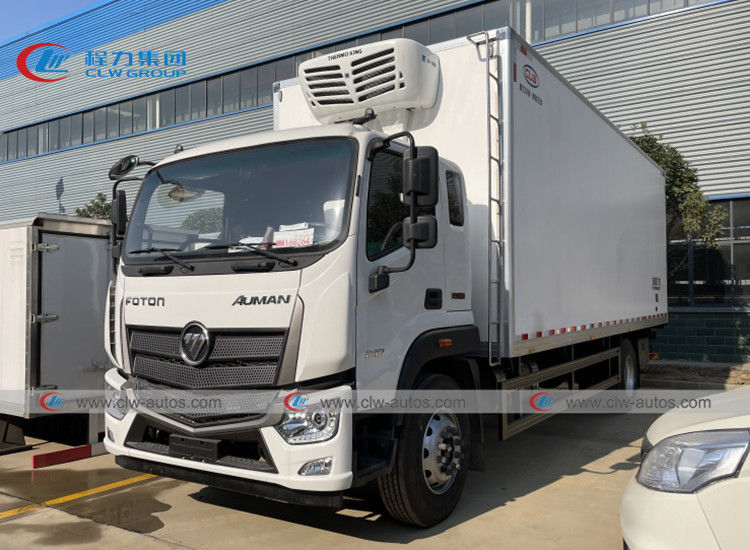

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck

Büyük resim : FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	ISO9001. BV, SGS
Model numarası:	CLW20220117

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiatable
Ambalaj bilgileri:	Teslimattan önce çıplak veya mumlu
Teslim süresi:	25 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Kutu malzemesi:	Fiberglas veya paslanmaz çelik	İsteğe bağlı kısım:	Et Kancası, Hava Kanalı, Yan Kapı, Arka Platform
Malzeme:	Fiber cam Panel	Yalıtım katmanı:	8cm kalınlığında Poliüretan Köpük
Kamyon Soğutma Ünitesi:	Termoking, Taşıyıcı veya Çin Alternatifi	Uygulanabilir sıcaklık:	-18~0 santigrat derece
kutu türü:	3 Katlı Sandviç	Dış Katman:	FİBER CAM
Orta katman:	8mm PE Köpük Yalıtım	İç katman:	Fiberglas veya paslanmaz çelik
Kamyon markası:	Sinotruk HOWO, FAW, ISUZU, FOTON, SHACMAN vb.	Sürücü tipi:	Sol El Sürücüsü
Sürücü modeli:	4X2, 6 Tekerlekli, 6 tekerlekli	Yükleme kapasitesi:	8 Ton, 10 Ton, 12 Ton, 15 Ton
Vurgulamak:	10T Refrigerated Food Truck , 8T Refrigerated Food Truck , FOTON AUMAN Refrigerated Box Truck

FOTON AUMAN 4x2 8Tons 10Tons Refrigerator Truck Cargo Freezer Van Food Refrigerated truck

Description:

1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

box body adopts polyester wet plate technology and glass fiber reinforced frame structure.
Box board: internal and external wall boards is made of 2.2mm glass fiber reinforced plastics of high quality; Polyurethane is selected for the middle insulation material; Box and thickness are both 80mm;
Accessories: 2.5mm aluminum alloy package around the box, stainless steel package corner, stainless steel door lock, 4 pieces of anti-collision rubber, stainless steel door frame, stainless steel hinge, energy-saving lighting in the box;
The thickness of the box can be 100mm or 120mm, and the inside and outside wall can be equipped with fiberglass, color steel plate, stainless steel and aluminum alloy.

Advantages of Insulated Freezer Van body:

1. Thermo King refrigerated trucks for sale ,kingtec mini refrigerated trucks ,hanya refrigerated trucks for sale,Lamberte refrigerated trucks for sale ,Chereau refrigerated trucks for sale
2. Dongfeng refrigerated trucks for sale,howo refrigerated trucks for sale, Foton refrigerated trucks for sale, Jmc refrigerated trucks for sale
3. -20 degree to -18 degree refrigerated trucks for sale
4. refrigerated trucks for sale ,Brand new refrigerated trucks for sale
5. 3ton Foton, JAC, JMC small freezer truck thermo king meat transportation cooling van truck mini refrigerated trucks for sale

Speicfiation:

Name	New Foton Auman 6.8m Refrigerator Truck
Dimension	9360X2490X3765 mm
Gross weight	15795kg
Rated load weight	7990 kg
Curb weight	7610 kg
Van dimension	6720X2320X2315 mm
Approach/departure angle	22/13
F/R overhang	1350/2760mm
Axle number	2
Axle load	5510/10285
Wheelbase	5700 mm
Tire	6
Tire specification	9.00R20 16PR,10R22.5 16PR
Steel plate spring number	8/10+8,8/10+3,4/10+3,10/12+9
Engine	Foton Cummins
Horse power	170 HP
Displacement	3760ml
Emission standard	Euro-2, EURO-3, EURO-4

More Pictures:

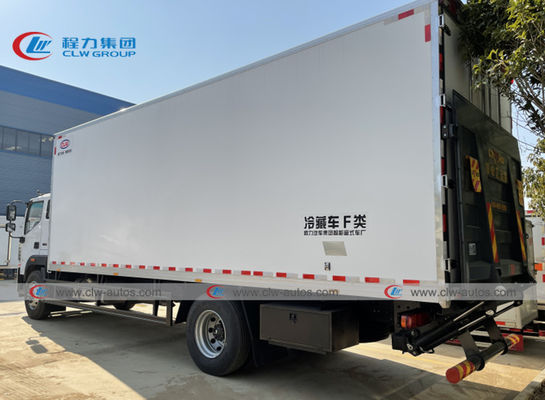

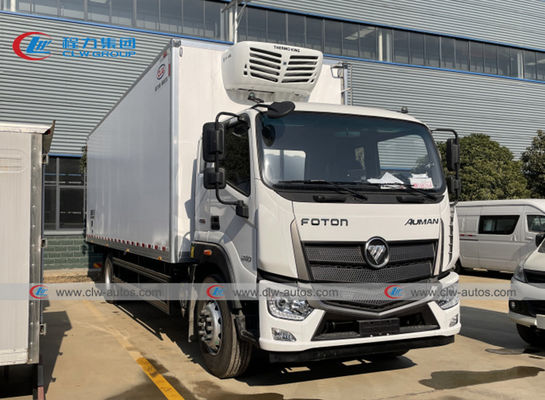

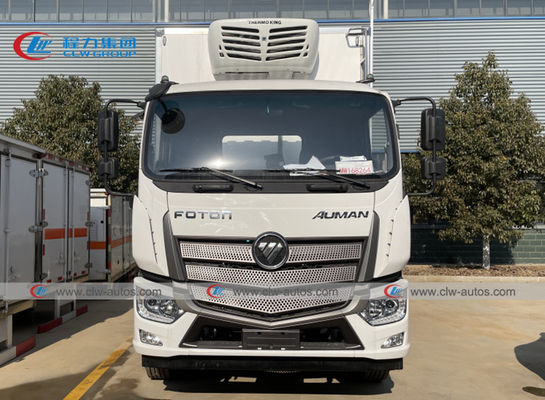

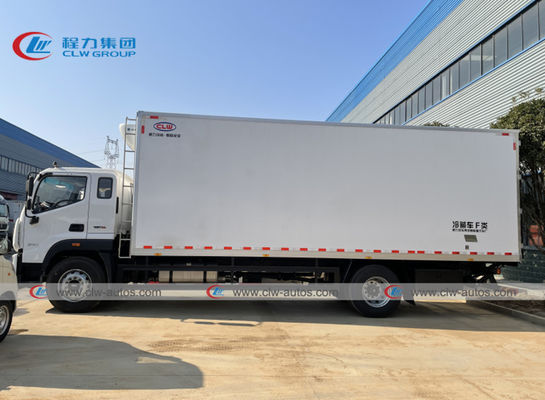

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 0

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 1

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 2

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 3

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 4

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 5

Refrigerator Units:

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 6

Technical Data for Refrigerator Freezer :

Model	T110F	T230F
Temperature rating in container	-18°C~+25°C
Cooling capacity(W)	800(-18°C)	1200(-18°C)
Volume of container(m³)	2~5(-18°C)	5~9(-18°C)
Voltage	DC12/24V
Compressor	SD5H11	SD5H14
Refrigerant	R404a 1.0~1.1kg	R404a 1.3~1.4kg
Dimension of Evaporator	510600138mm	550695165mm
Dimension of Condenser	865700185mm	1020865210mm

More pictures of refrigerator truck:

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 7

FOTON AUMAN 4x2 8T 10T Refrigerated Food Truck 8

FAQ:

1. How can I select correct unit?

It is important to select the proper transport refrigeration unit depend on the size of the truck and your purpose of usage. Please refer the selection guide from the technical information or please contact us by e-mail. We will help you to choose correct unit for your use.

2. Can I have a price of King Thermo units?

Every King Thermo dealer is empowered to establish his or her own pricing policies. This includes parts as well as transport refrigeration units. Please find your nearest local dealers and they will kindly provide you the best service. If you can’t find any dealers in your country, please send us inquiry by e-mail, phone or fax. Also our inquiry form on the quick menu is provided for your convenience.

3. What payments way that you accepted?

T/T, WEST UNION, L/C, Credit Card and so on...

4. How about spare parts supply and warranty term?

We will offer free wearing parts per to order quantity and provide 12 Months Warranty for your transport refrigeration unit spare parts change.

5. How to be a King Thermo distributor?

If we have a transport refrigeration unit dealer or distributor in your area, sorry it is impossible to deal with us directly. If we don't have a representative in your country, it is possible to deal with us as long as your company meet our requirement. Please contact us by inquiry on the quick menu or e-mail to us.
