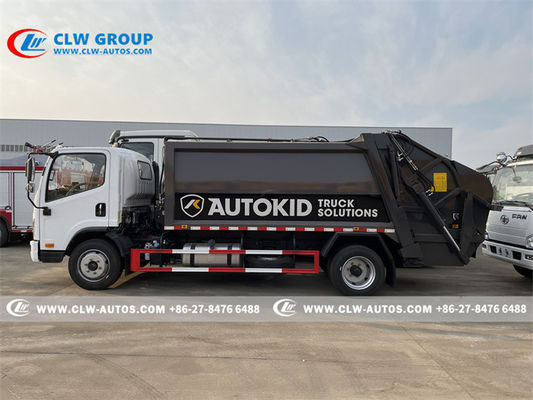

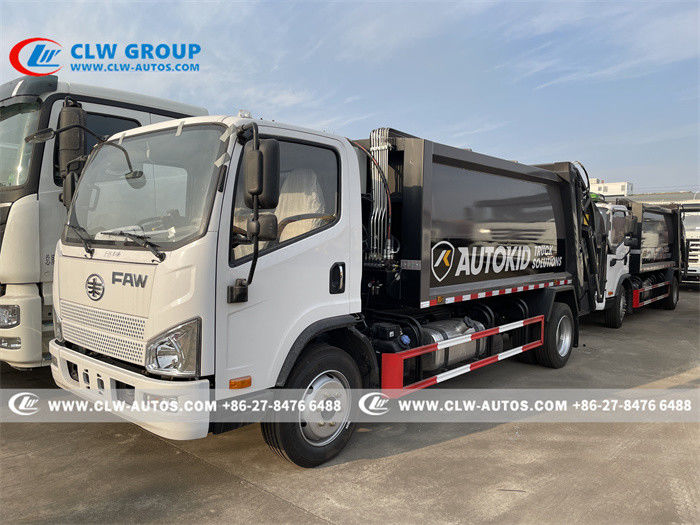

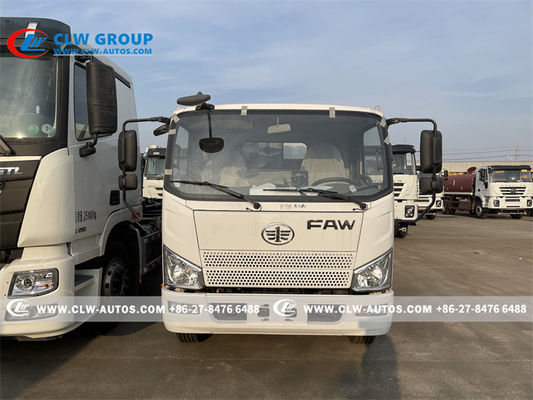

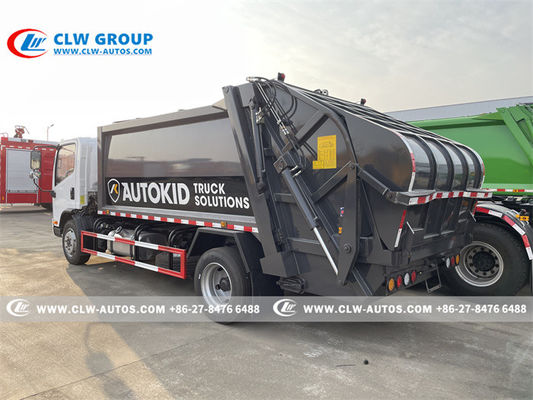

LHD FAW 4x2 140HP 8cbm 6T Compactor Garbage Truck

Büyük resim : LHD FAW 4x2 140HP 8cbm 6T Compactor Garbage Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,GCC,DOT,BPS
Model numarası:	CLW5114

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

marka:	FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN, FAW	İşlev:	Çöp kompaktörü, atık giderme
Malzeme:	Karbon Çeliği Q235B	Kalınlık:	Yan 4 mm ve Alt 4 mm
Tank hacmi:	8 metreküp/8000 litre/6 ton	Tekerlek tabanı:	3800mm
Beygir gücü:	140hp	Hidrolik pompa:	Çinli Ünlü Marka
Kontrol Sistemi:	Siemens marka işletim sistemi.	Garanti:	1 yıl
Kontrol:	Hem manuel hem de elektrik kontrolü
Vurgulamak:	6T Compactor Garbage Truck , 8cbm Compactor Garbage Truck , FAW 4x2 Refuse Compactor Truck

FAW 8000liters 8cbm 6tons 4x2 compactor garbage truck

Product Descriptions

1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;

2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;

3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.

4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.

5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

Product Specifications

Truck Chassis Specification
Chassis model		CLW5114
Cab		FAW single row cab
Driving Type		4*2 Left hand driving
Max Speed (km/h)		115
Overall dimension(mm)		7665×2070×2800
GVW( kg)		11200
Mass in working order ( kg)		6460
Wheelbase(mm)		3800
F/R track base (mm)		1569/1530
F/R overhang (mm)		1068/1997
Approach/Departure Angel		22/25
Tire		7.50R16
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		6-speed
Bridge	Front axle	4T
	Rear axle	6T
Enging	Model	YC4E140-33
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)	4257
	Max output power/rotate speed (hp/rpm )	140/2800
Braking system	Service Brake	Compressed air brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body specification
Material of tank		Material : Q235,Thickness :4(mm) side /4(mm) rear
Dirty tank volume		8cbm/8000Liters/8M3/6tons
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Rear discharging
Time for dumping		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

Reference photos

LHD FAW 4x2 140HP 8cbm 6T Compactor Garbage Truck 0

Diagram of compactor garbage truck

LHD FAW 4x2 140HP 8cbm 6T Compactor Garbage Truck 2

Main parts of garbage truck

LHD FAW 4x2 140HP 8cbm 6T Compactor Garbage Truck 3

Compactor Carbage Truck Production Process

LHD FAW 4x2 140HP 8cbm 6T Compactor Garbage Truck 4

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.

3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
