SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck

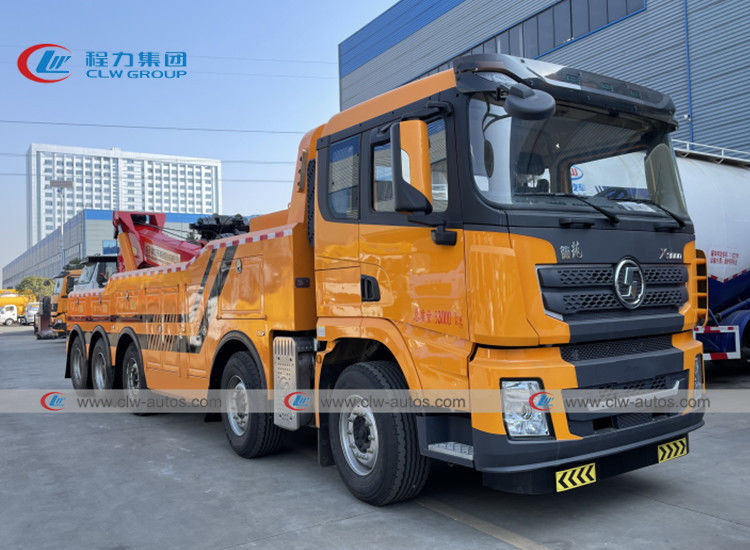

Büyük resim : SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU. HUBEI, ÇİN.
Marka adı:	CLW
Sertifika:	CCC, ISO9001, BV, SGS
Model numarası:	CLW20220208

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	40 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 50 adet.

İletişim

Detaylı ürün tanımı

Ürün adı:	SHACMAN yol tamirci kurtarma çekici kamyon	Motor Beygir Gücü:	336hp, 371hp. 420hp
Kamyon markası:	Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC vb.	Sürücü modeli:	6x4, 10 tekerlek, 8x4, 12 tekerlek, seçenek için 10x4
Sürücü tipi:	Sağdan Direksiyonlu veya Soldan Direksiyonlu.	Tamirci Tipi:	360 derece Döndürme. 360 derece Döndürülmüş. ya da değil
Teçhizat:	Hidrolik pompa, Yağ Silindiri	Ana bölümler:	Bom, Kaldırma, Vinçler, İniş Ayağı
Yükleme kapasitesi:	30 ton, 40 ton, 50 ton, 60 ton, 70 ton vb.	Ürün adı:	Araba Çekme Tamirci Kamyon, ağır tamirci çekici kamyonlar
diğer isim:	Popüler Tamirci Çekici, 25T Çekici Kaldırma Tamirci Kamyon, çekici kamyon tamirci kamyon kamyonet	Tip:	Arka Çekici, satılık tamirci çekiciler, Tamirci Kamyon
İsim:	Kurtarma Kamyonu Aracı, yol kurtarma kurtarma araçları / tamirci çekici kamyonlar, çekici kamyonlar,	Kullanım:	Yol Yardım Kurtarma
Vurgulamak:	SHACMAN Recovery Tow Truck , 10x4 Recovery Tow Truck , 380HP Wrecker Tow Truck

SHACMAN 8X4 10x4 380HP 50T Road Rescue Recovery Wrecker Bus Towing Truck

Product Description:

1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows

Parameters for SHACMAN 8X4 10x4 380HP 50T Road Rescue Recovery Wrecker Bus Towing Truck:

Dimensions	Length (mm)	11829
	Width (mm)	2500
	Height (mm)	3695
	Track width(mm)	2036/1830
	Front/Rear overhang(mm)	1525/1775
	Wheel Base (mm)	1800+4575+1400
	Approach/Departure Angle (°)	20/18
Weight	Vehicle Curb Weight (kg)	27870
	GVW (legal)	31000
	GCW (legal)	25000
Performance	Max. Speed (km/h)	90
	Max. Grade Ability (%)	34
Core Equipment Specifications
Engine	Model	WEICHAI, WP10.340E22+PTO, EURO 2
	Rated Power (HP/r/min)	340/2200
	Max. Torque (Nm/r/min)	1250
	Type	Six cylinders in-line, water-cooled, super-charge inter-cool diesel engine
	Air Filter	Normal Air Filter
Clutch	Model	φ430
	Type	Single plate,diaphragm spring,mechanical pull type,self adjusting Air assisted clutch
Transmission	Model	FAST 10JSD180, 10 forwards & 2 reverse
	Type	Manual.
	Speed	10F & 2R
Front Axle	Type	MAN
	Ratio Load(kg)	7500x2
FR. Suspension	Type	Multi leaf spring
Rear Axle	Type	MAN
	Ratio Load(kg)	13000x2
	Ratio	5.92
RR. Suspension Type	Multi leaf spring
Steering	Model	ZF Technology, Left Hand Drive
	Type	Power steering
	Steering Wheel	4D adjustable
Brake System	Service	Dual-circuit air
	Parking	Spring
	Auxiliary Brake	Engine Exhaust
	Other	WEVB
Standard Equipment Specifications
Driver’s Cab.	Type	SHACMAN F3000 Flat roof cabin, one sleeper bed, Left hand drive
	Equipment	hydraulic suspension cab, TWO beds, A/C, MP3, 4-point hydraulic suspension,Hydraulic reversal cab,Rear window, mechanical sunshine roof,leather 4-spoke steering wheel
	Driver's Seat	hydraulic chair with seat belts
Wheel&Tire	Type & Size	12R22.5, 13 Pics including one spare
Fuel tank	Capacity (L)	400, aluminum alloy
Special Device For Wrecker System
Towing	Max Towing weight(kg)	Above 50000
Hoisting Organ	Max hoisting weight(kg)	31000
	Max Under-hoisting Capacity (kg)	20000
	Max Hoisting Weight under all extension(kg)	14000
	Max Under-hoist length (mm)	2365
	Extension Distance of oil Cylinder(mm)	1850
	Under hoisting work angle(°)	-10~85°
Lifting Organ	Max lifting capacity(kg)	20000
	Basic arm length(mm)	5000
	Total arm length(mm)	8300
	Telescope length(mm)	3300
	Max lifting high(mm)	4400
	Crane lifting angle	5°~ 23°
	Crane rotation angle	-
Winch	Quantity	2
	Max. Pulling power	10000kgs*2
	Winch rated hoisting force(KN)	100×2
	Steel rope	40M length,Φ18
Landing Leg	Distance between front legs(mm)	0
	Distance between rear legs(mm)	1450
Equipped	Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly

The more pictures for SHACMAN 8X4 10x4 380HP 50T Road Rescue Recovery Wrecker Bus Towing Truck:

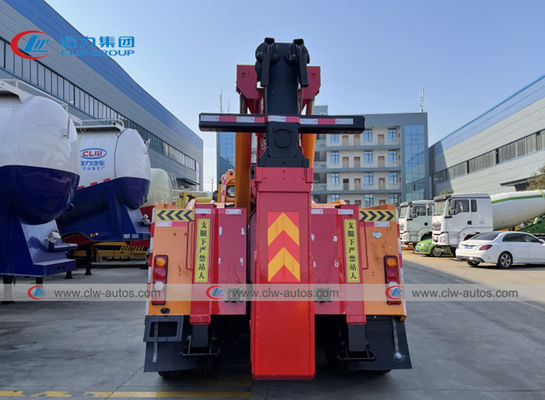

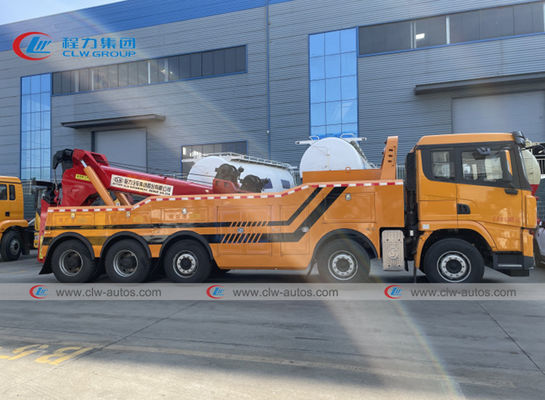

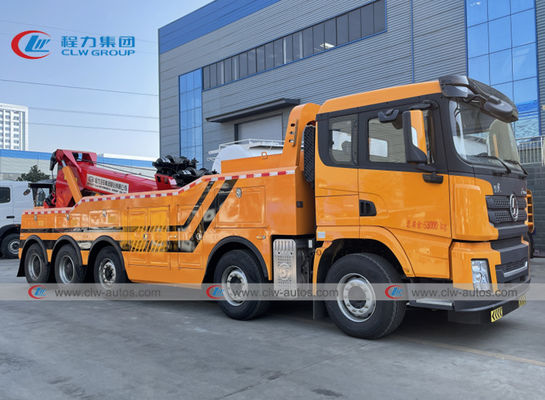

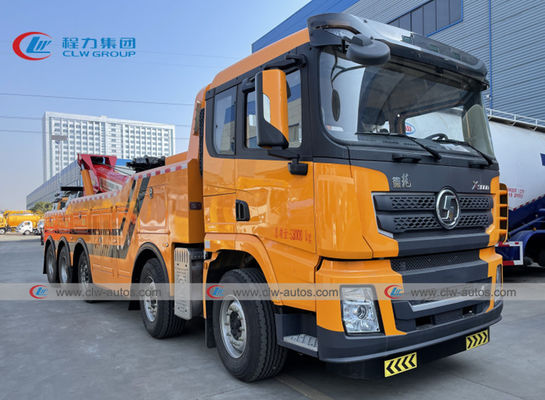

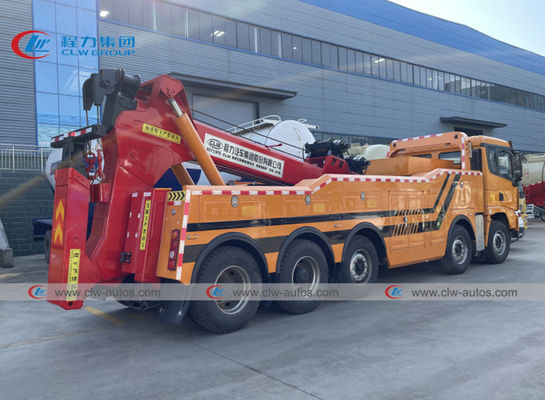

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 0

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 1

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 2

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 3

SHACMAN 8x4 10x4 380HP 50T Road Rescue Recovery Tow Truck 4

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
