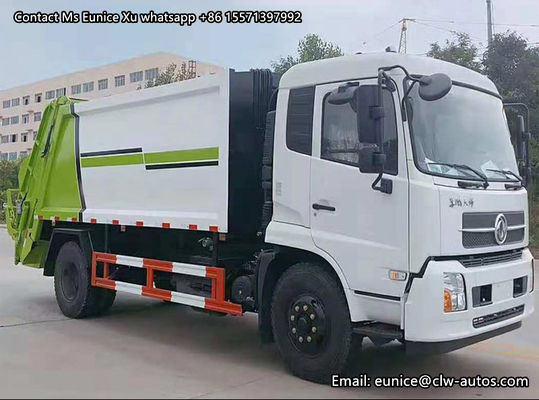

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck

Büyük resim : Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,
Model numarası:	CLW508LJC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

marka:	FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN, FAW	İşlev:	Çöp kompaktörü, atık giderme
Malzeme:	Karbon Çeliği Q235B	Kalınlık:	Yan 4 mm ve Alt 5 mm
Tank hacmi:	14cbm/14000Litre/12m3/ 10ton	Tekerlek tabanı:	4700
Beygir gücü:	180hp	Hidrolik pompa:	Çinli Ünlü Marka
Kontrol Sistemi:	Siemens marka işletim sistemi.	Garanti:	1 yıl
Kontrol:	Hem manuel hem de elektrik kontrolü	Renk:	Özelleştirilmiş
Vurgulamak:	Large capacity Garbage Compactor Truck , Waste collection Garbage Compactor Truck , 14m3 Garbage Compactor Truck

Refuse Garbage Compactor Truck

Product Descriptions

* beautiful and generous box

*The effective compression volume

* Tail with flip feeding mechanism

* Electronically controlled & manual dual controllers

*Large capacity sewage tank with sewage collection tank

* The box can be sprayed with patterns and words as required.

Product Specifications

Truck Chassis Specification
Chassis		Dongfeng
Cab		Dongfeng single row cab
Driving Type		4*2 Left or right hand driving
Max Speed (km/h)		110
Overall dimension(mm)		835024903250
Tare weight( kg)		9850
Wheelbase(mm)		4700
Front/Rear track (mm)		1504/1425
Approach/Departure Angel		24/16
Tire		9.00R20, 6+1 pcs
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		6-speed
Enging	Model	Cummins 180hp
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke, direct injection, turbocharged
Braking system	Service Brake	Oil brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body specification
Material of tank		Material : Q235,Thickness :4(mm) side /5(mm) rear
Dirty tank volume		14cbm/14000Liters/14M3
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Rear Discharging
Time for Discharging		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

Reference photos

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 0

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 1

Diagram of compactor garbage truck

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 2

Main parts of garbage truck

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 3

Factory overview

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 4
