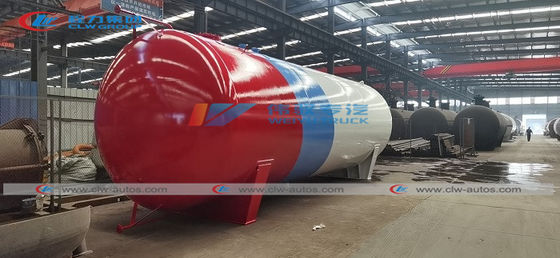

25MT Horizontal Q370R Carbon Steel LPG Storage Tank 50cbm 50,000liters

Büyük resim : 25MT Horizontal Q370R Carbon Steel LPG Storage Tank 50cbm 50,000liters

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU, HUBEI
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW5259TU6

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	Negotiated
Ambalaj bilgileri:	Teslimattan önce çıplak veya mumlu
Teslim süresi:	Mevduatın alınmasından 25-20 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Tank malzemesi:	Q345R Q370R Q420R Basınçlı kap için karbon çeliği	Yükleme kapasitesi:	20TON, 25TON, 30TON,40TON,60TON
Tank boyutu:	50 m3, 50 metreküp, 50000 litre, 50000L	Tasarım baskısı:	1,71MPa 1,77MPa 17,1bar, 17,7bar
Hidrolik test basıncı:	2,21 MPa 22,1 bar	Doldurma Aracı:	Propan, Bütan, LPG, Pişirme Gazı
Seviye göstergesi:	Manyetik Plaka Seviye Göstergesi, Şamandıra Topu, Rotor Seviye Göstergesi	Çap:	2300mm
ton:	50000L, 50cbm, 50000 litre, 50m3, 25ton, 25MT
Vurgulamak:	Carbon Steel LPG Storage Tank 50cbm , 25MT Horizontal LPG Storage Tank

50cbm/50,000liters 25MT Horizontal Q370R Carbon Steel LPG Storage Tank

Product Description

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc

2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

4. LPG storage tank capacity: 5-200m3 (Customized)

5. LPG storage tank material: Q345R Q370R SA516 SA517

6. Corrosion Resistance Painting: 2 Times

7. Surface Painting: 1 Time (color is customized)

Technical specification for 50CBM 50000Liters LPG Gas Storage Tanker:

Parameter of 50cbm LPG Storage Tank
ITEM		PARAMETER	ITEM		PARAMETER
Volume		50cbm	Thickness of Shell		12mm
Tank Material		Q345R	Thickness of End plate		14mm
Overall Size		1250823242914mm	Tank Net Weight		10190kg
Tank Diameter		2300mm	Loading Capacity		19950kg
Design Pressure		1.77Mpa	Gas Density		420~520kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-40℃~50℃	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Designed Life time		15 years
Safety Accessories
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-80	Stop Valve DN80			1		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-100	Safety Valve DN80			1		RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40℃~60℃

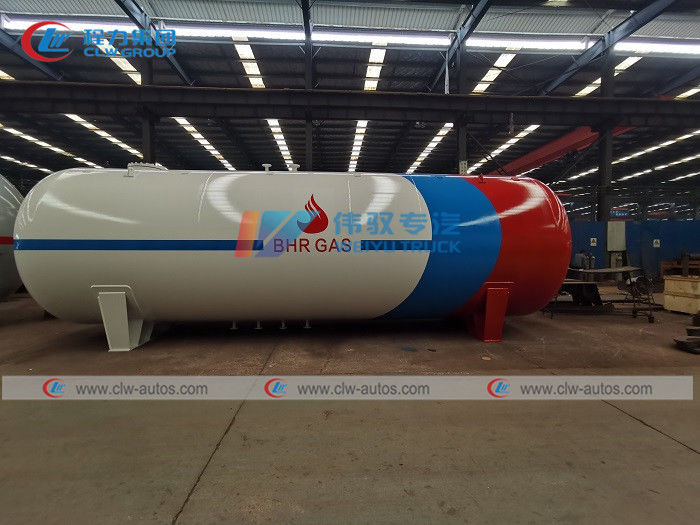

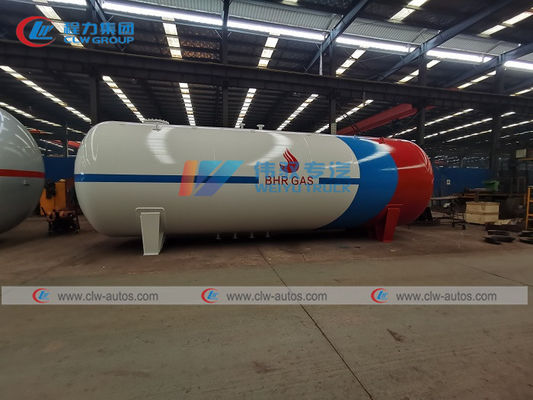

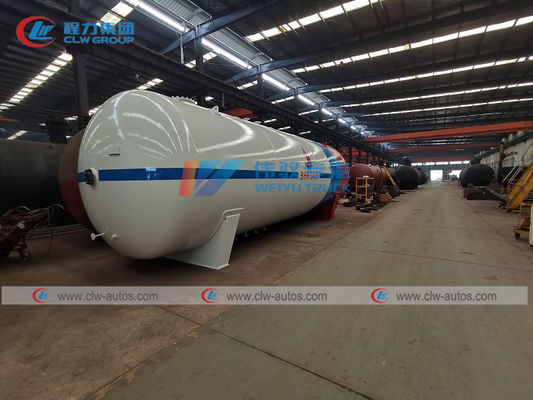

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
