ASME Q345R Carbon Steel LPG Gas Storage Tank 50000L 25MT DN2700mm Diameter Head 16mm

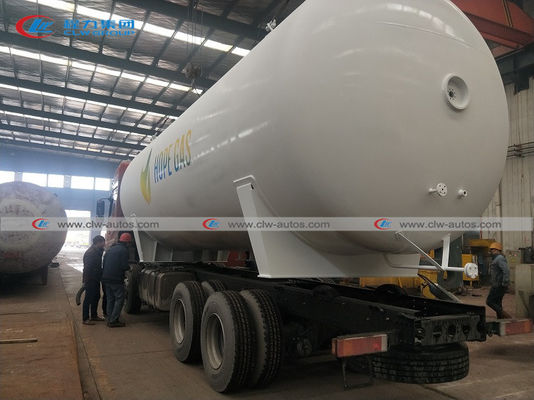

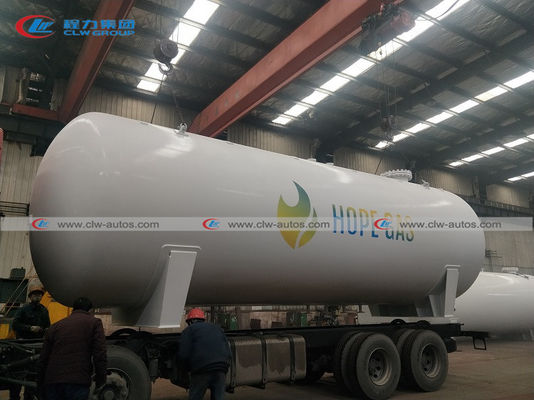

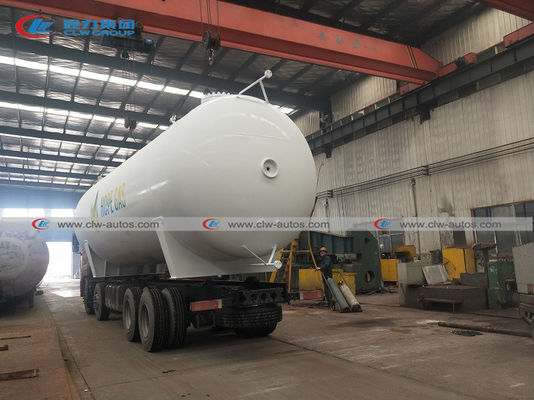

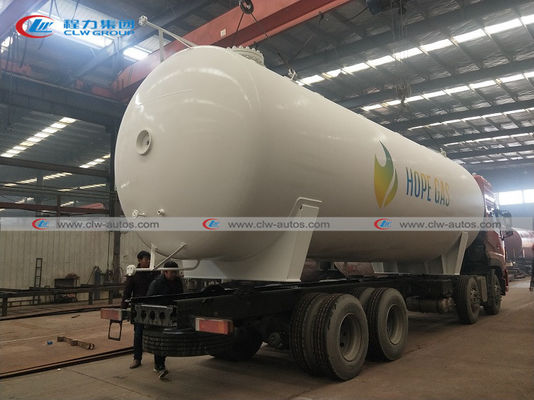

Büyük resim : ASME Q345R Carbon Steel LPG Gas Storage Tank 50000L 25MT DN2700mm Diameter Head 16mm

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU, HUBEI
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW525JKF7

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	Negotiated
Ambalaj bilgileri:	Teslimattan önce çıplak veya mumlu
Teslim süresi:	Mevduatın alınmasından 25-20 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Tank malzemesi:	Q345R Q370R Q420R Basınçlı kap için karbon çeliği	Yükleme kapasitesi:	20 TON, 25 TON, 30 TON, 40 TON, 50 TON, 60 TON
Tank boyutu:	50m3, 50cbm, 50000 litre, 50000L	Tasarım baskısı:	1,71MPa 1,77MPa 17,1bar, 17,7bar
Hidrolik test basıncı:	2,21 MPa 22,1 bar	Doldurma Aracı:	Propan, Bütan, LPG, Pişirme Gazı
Seviye göstergesi:	Manyetik Plaka Seviye Göstergesi, Şamandıra Topu, Rotor Seviye Göstergesi	Çap:	2700mm
ton:	50000L, 50cbm,50000 litre, 50m3, 25ton, 25 ton
Vurgulamak:	LPG Gas Storage Tank 50000L , Carbon Steel LPG Gas Storage Tank , ASME Lpg Tanks For Trucks

ASME 50000L 25MT DN2700mm Diameter Head 16mm Q345R Carbon Steel LPG Gas storage

Product Description

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc

2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

4. LPG storage tank capacity: 5-200m3 (Customized)

5. LPG storage tank material: Q345R Q370R SA516 SA517

6. Corrosion Resistance Painting: 2 Times

7. Surface Painting: 1 Time (color is customized)

Technique Parameter for 500000 Liters 25tons lpg storage tank

tem	Unit	Parameter
Product Name		Liquefied Gas Storage Tank
Design/manufacture code		GB150, ASME is for option
Overall dimensions	mm	918227283318
Tank Dimension		DN2700
Tank material		Q345R
Loading weight	Kg	19950
Tank weight	kg	10640
Working pressure	Mpa	≤1.6
Testing hydraulic pressure		2.12
Testing pressure for gas density		1.77
Test pressure		1.69
Air tight test pressure		1.69
Safety valve popping pressure		1.68
Working temperature	ºC	≤50

Accessory list for 50,000l lpg storage tank

Accessories List
Parts No	Size	Parts Name	Model No.	Quantity	Unit
a	DN50	Cut-off Valve for Drain Outlet	J41N-2.5-50	1	set
b	DN80	Cut-off Valve for Liquid Phase Outlet	J41N-2.5-80	1	set
c1	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
c2	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
d	DN80	Cut-off Valve for Liquid Inlet	J41N-2.5-80	1	set
i	DN50	Cut-off Valve for Air Drain Outlet	J41N-2.5-50	1	set
h	DN80	Cut-off Valve for Safety Valve	J41N-2.5-80	1	set
f1	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
f2	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
e	M33*2	Thermometer	WTQ-280	1	set
g	M20*1.5	Pressure Gauge	Y-100T	1	set
/	/	Magnetic Level Gauge	HG21584-95	1	set
/	DN80	Safety Valve	A42F-25	1	set
	M20×1.5	Needle Valve	J24W-320-DN6	1	set
Total Quantity				14

Product Advantage

1. Automatic circular seam welder guarantee the stable characteristics of solder joints

2. Rigorous x-ray X-ray radiographic inspection report

3. Resistance wire heating heat treatment process to eliminate all kinds of stress

4. ISO, 3C & ASME certificate

5. High quality domestic or imported safety accessories for user to choose

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
