Mini 5m3 Isuzu White 130HP Rear Loader Compactor Garbage Truck

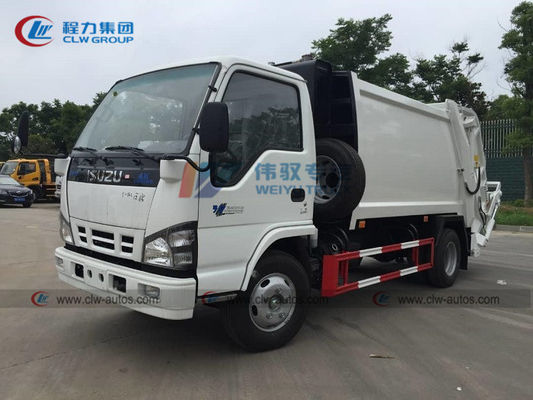

Büyük resim : Mini 5m3 Isuzu White 130HP Rear Loader Compactor Garbage Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,
Model numarası:	CLW51EU6C

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

marka:	FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN, FAW	İşlev:	Çöp kompaktörü, atık giderme
Malzeme:	Karbon Çeliği Q235B	Kalınlık:	Yan 3 mm ve Alt 4 mm
Tank hacmi:	5cbm/5000Litre/3ton	Tekerlek tabanı:	3360mm
Beygir gücü:	130hp	Hidrolik pompa:	Çinli Ünlü Marka
Kontrol Sistemi:	Siemens marka işletim sistemi.	Garanti:	1 yıl
Kontrol:	Hem manuel hem de elektrik kontrolü
Vurgulamak:	Rear Loader Garbage Compactor Truck , 130HP Garbage Compactor Truck , Mini Garbage Compactor Truck

Mini 5m3 Isuzu White Rear Loader Compactor Garbage Truck

Product Descriptions

Widely used, support customized
Heavy load , simple operation
Plate thickening , fully function
High-quality Q345 manganese steel of WISCO, with three sides and four bottoms, curved box body, which has good force, no deformation, and larger loading capacity.
Box body adopts automatic welding (full welding), which does not scrape dust, does not leak, beautiful and durable.
Double sewage collection tank design, sealed treatment, eliminate secondary pollution, sewage tank is installed with a unique sewage valve, reliable sealing, not easy to block.

Product Specifications

Truck Chassis Specification
Chassis model		QL1070HHHRY
Cab		ISUZU single row cab
Driving Type		4*2 Left or right hand driving
Max Speed (km/h)		98
Overall dimension(mm)		5900×1880×2160
GVW( kg)		7300
Mass in working order ( kg)		1900
Wheelbase(mm)		3360
F/R overhang (mm)		1015/1525
Approach/Departure Angel		24/16
Tire		7.00-16 14PR,7.00R16 14PR
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		5-speed
Bridge	Front axle	3T
	Rear axle	5T
Enging	Model	4KH1-TC
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)	2999
Braking system	Service Brake	Compressed air brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body specification
Material of tank		Material : Q235,Thickness :3(mm) side /4(mm) rear
Dirty tank volume		5cbm/5000Liters/5M3/3tons
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Rear Discharging
Time for Discharging		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

Diagram of compactor garbage truck

Mini 5m3 Isuzu White 130HP Rear Loader Compactor Garbage Truck 0

Main parts of garbage truck

Mini 5m3 Isuzu White 130HP Rear Loader Compactor Garbage Truck 1

Compactor Carbage Truck Production Process

Mini 5m3 Isuzu White 130HP Rear Loader Compactor Garbage Truck 2

Factory overview

Mini 5m3 Isuzu White 130HP Rear Loader Compactor Garbage Truck 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.

3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
