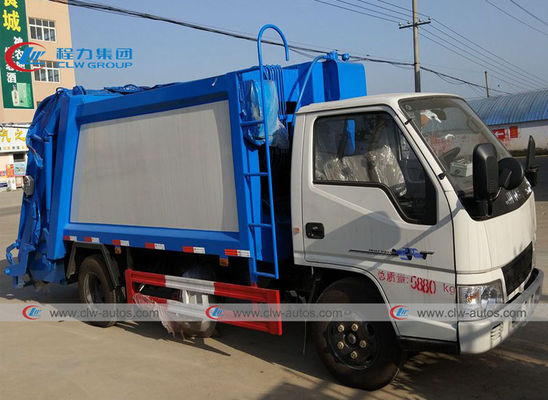

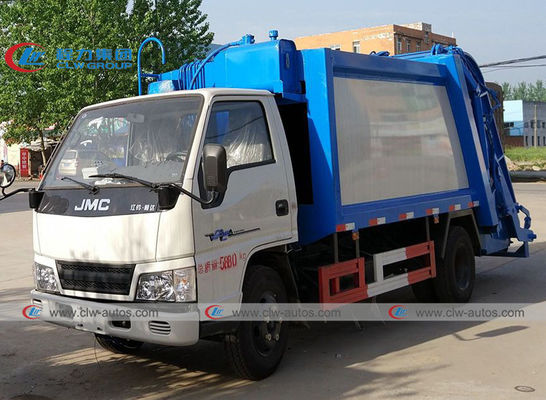

3 tons 4x2 JAC brand 5000 Liters refuse Garbage Compactor Truck

Büyük resim : 3 tons 4x2 JAC brand 5000 Liters refuse Garbage Compactor Truck

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CLW / Chengli
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5105

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	negotiable
Ambalaj bilgileri:	Balmumu ile Çıplak Paket, toplu gemi, ro-ro
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

Kutu malzemesi:	Karbon Çeliği Q235	Kamyon markası:	Dongfeng,nasıl,jac,jmc,faw,forland,foton
Kamyon Motoru:	Chaochai motor 102hp,120hp,170hp,190hp	Vites kutusu:	6 İleri ve 1 Geri
Yorulmak:	6,50-16,6 adet, bir yedek ile	Direksiyon:	Lhd,soldan direksiyonlu,rhd,sağdan direksiyonlu
Yakıt tipi:	Dizel, elektrikli	Sürücü tekerleği:	4x2, 4x4, 6x4, 8x4, diğerleri
Garanti:	Evet	Kamp Etki Oranı:	0,8-0,9 Ton/m3
Vurgulamak:	3 tons Garbage Compactor Truck , 5000 Liters Garbage Compactor Truck , 4x2 Garbage Compactor Truck

3 tons 4x2 JAC brand 5000 Liters refuse Garbage Compactor Truck

Description

Garbage Compactor is the machinery of choice for door to door waste collection. Waste is simultaneously compacted and eventually transported to the dumping site. Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate.

Compactor:
1.mechanical design
2.Strong pressure, large capacity
3.Automatic feeding device, self-unloading
4.Manual and electric integration
5.Customized box

Product Advantages
1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.
2. Advanced electric control system adopts imported PLC integrated control, mechatronics-hydraulic integrated control, and high degree of automation.
3. The pushing plate control valve is equipped with a back pressure valve, which can highly improve the loading efficiency.
4. The beautiful streamlined appearance design, and the upper body adopts special high-strength anti-corrosion steel plate, which extends the service life of the truck.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

Specifications

Product Name	Kama Diesel Engine and Turbo charger Type 4500L garbage compactor truck
Chassis brand	China KAMA	Wheel base (mm)	3300 mm
Overall Dimension(mm)	585020002300	Driving type	4*2, left hand drive
Gross weight (kg)	4495	Number of Leaf Springs	8/9+5,6/8+4
Curb weight(kg)	3465	Rated loading capacity(Kg)	5000
Transmission	5 speed forward with 1 reverse manual	Axle number	2
Fuel type	Diesel oil	Braking system	Air brake
Approaching/Departure Angle(°)	19/15(°)	F/R Axle load(kg)	1785/2710
Passengers in cab	2	Maximum speed(km/h)	90
Number of Tyres	6 (with1 spare tire)	Tyre type	6.50-16
Front/Rear suspension(mm)	1032/1518	Front/Rear track base (mm)	1506/1442
Engine parameters
Engine Brand	Dongfeng Chaoyang	Engine Model	CY4102-C3F
Displacement (L)	3.856 L	Emission Standard	EURO 5
Power (kw/hp)	70/95	Maximum torque	365N/m
Number of cylinders	4	Cylinder spread pattern	In-line
Operation control system	Electrically hydraulic control	Rated rotation(rpm)	3200
Equipment
Refuse Container capacity	5m3/5000Liters	Rubbish Discharging Time	<= 30 s
Loading Circulation Time	12- 30s	Compressed Proportion	1:3 / 1:2

Main parts

3 tons 4x2 JAC brand 5000 Liters refuse Garbage Compactor Truck 0

Truck Diagram

3 tons 4x2 JAC brand 5000 Liters refuse Garbage Compactor Truck 1

Other types of garbage ruck
3 tons 4x2 JAC brand 5000 Liters refuse Garbage Compactor Truck 2

Factory overview

3 tons 4x2 JAC brand 5000 Liters refuse Garbage Compactor Truck 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
