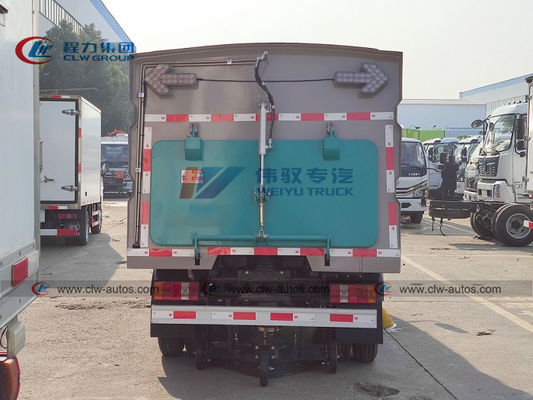

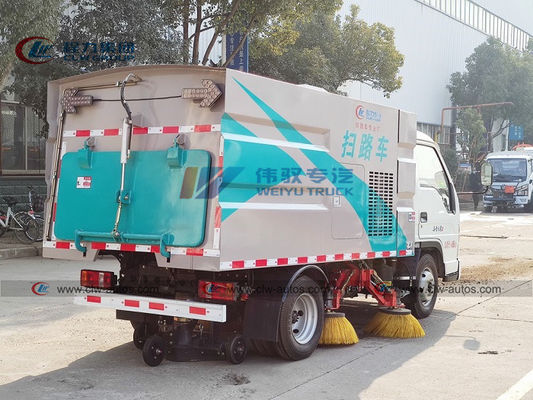

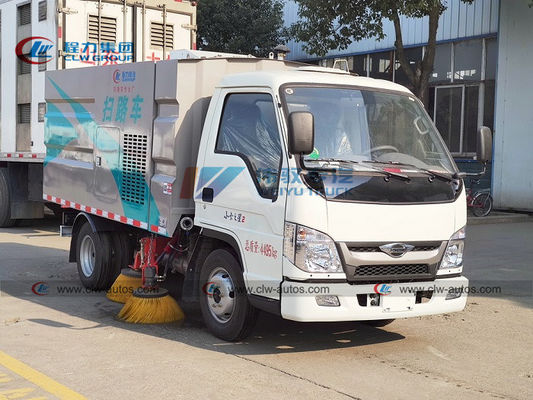

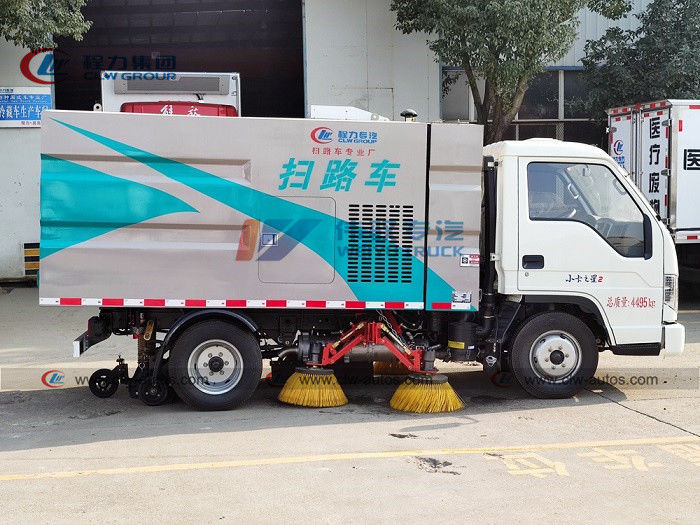

Mini Foton Four Brushes Street Sweeper Vacuum Truck 4*2 116HP 3cbm

Büyük resim : Mini Foton Four Brushes Street Sweeper Vacuum Truck 4*2 116HP 3cbm

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO9001
Model numarası:	CLW20210707

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 birim
Fiyat:	Negotiated
Ambalaj bilgileri:	Teslimattan önce çıplak mumlu
Teslim süresi:	35-40 İş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Ürün adı:	Yol Süpürme Aracı, Vakumlu Sokak temizliği	Kamyon Şasi Markası:	JMC, DONGFENG, HOWO, diğer Çin markası
Çöp Kovası Kapasitesi:	2.5m3,2.5cbm, 2500 litre	Gövde tipi:	Vakumlu Süpürücü Süpürme Süpürme Emme
Su Kabı:	500 litre 500L 0,5 metreküp 0,5 m3	Kamyon Tipi:	Su Dua Süpürgesi Tankı
Sürücü tipi:	LHD&RHD	Sürücü modeli:	4X2, 6 Tekerlekli 4*2
toz haznesi:	2,5 metreküp/ 2,5 m3/ 2500L	Şartname:	Küçük boyut
Konteyner malzemesi:	Paslanmaz Çelik	Fırçalamak:	Her Tarafta 2 Adet 4 Fırça
Vurgulamak:	3cbm Street Sweeper Vacuum Truck , 116HP Street Sweeper Vacuum Truck

Mini Foton 4*2 116HP Four Brushes 3cbm Street Sweeper Vacuum Truck

Product description

Best choice for road, factory, residential area sweeping & Cleaning
optional high pressure water flushing & Spraying for dust control
All function contained in 1 control panel in cabin, Easily for 1 man contorl
Stainless Water Tank & Garbage Tank for long time use
Hydraulic Controlled Brush with automatic retreating system to avoid collosion
Floating Suction Pan to adjust as per road height
Optional water spraying for dust control
Optional Music Warning System & Reverse Alarm

Vehicle name	Road washing sweeper truck		Condition	New condition/Left hand drive/4x2
Cab	One and half rows,luxury configuration, 3 passengers allowable		Overall dimension (mm)	630020502580
Curb weight (kg)	3500		Wheel base (mm)	3308
Engine	Model	YUCHAI	Description of engine	4 cylinders,in line,turbocharged, water-cooled, intercooled,diesel
	Max.output power (KW/HP)	85/116	Displacement(ml)	3347
Performance	Max. vehicle speed (km/h)	95	Running angle(°)	Approach angle	19
	F/R overhang(mm)	1085/1430		Departure angle	14
	Emission standard	Euro 4	Drive type	4X2
Description of gearbox	Manual, 7 forward &1 reverse gears		Steering type	LHD,power steering
Clutch	Diaphragm spring clutch		Brake system	Air brake system
Specification of tyre	7.00R16		Number of tires	6+1
Frame	Stamping riveted structure		Number of leaf spring	7/4+5
Max.grade ability	30%		Min. turning diameter	18m
Brake distance	≤10m		Min.ground clearance	250mm
Auxiliary engine model	B140 33		Power of auxiliary engine	77HP
Water tank	Capacity 5000L,made of 3mm stainless steel		Dust tank	Capacity 5000L,made of 3mm stainless steel
High pressure washing	Washing speed		3~20 km/h
	Washing width		3.5m
	Water pressure		12 MPa
	Water pump flux		115 L/min
Suction and sweeping	Cleaning efficiency		≥95%
	Max. inhalation size		Ø110mm
	Suction and sweeping width		3.5m
	Max.cleaning capacity		60000m2/h
	Dish brush extension		≥400mm
	Running speed		3~20 km/h
Hydraulic system	Hydraulic pressure		16 MPa
	Hydraulic oil capacity		60 L
Electrical system	Type		DC12V
	Voltage		12V
	Battery		12V
High pressure water system	Type		Ram pump
	Model		PT36
	Pressure		10 MPa
	Revolution		1150 r/min
	Water valve type		Hydraulic high pressure ball valve
	Water valve pressure		7 MPa
	Nozzle type		High pressure washing type
	Water filter		Strainer mesh
	High pressure washing reel		20m
Low pressure water system	Model		65QZ-40/50
	Flux		40 m³/h
	Raising capacity		50 m
Dish brushes	Type		2 pcs at middle,driven by hydraulic motor,revolution is adjustable,controlled individually,automatic avoidance
	Diameter		850 mm
	Speed		High 110r/min, middle 80r/min,low 50r/min
	Angle		Forth tilt:4-6°, outward tilt:4-7°
Sucking dish	Type		Double inhalers,hydraulic control, spring suspension
	Inhaler diameter		180 mm
	Width		1800 mm
