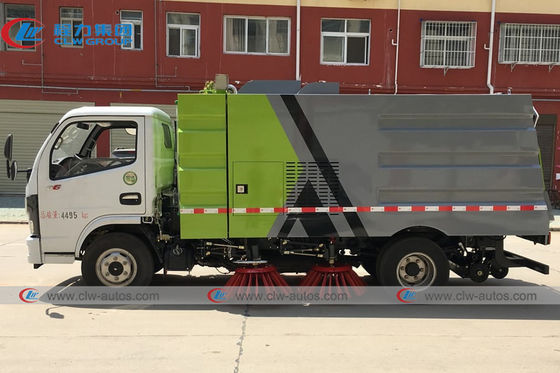

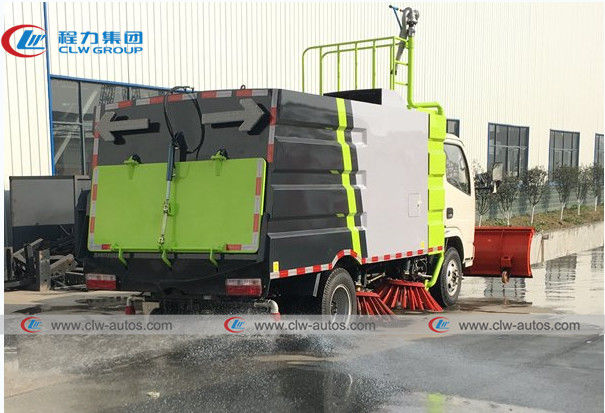

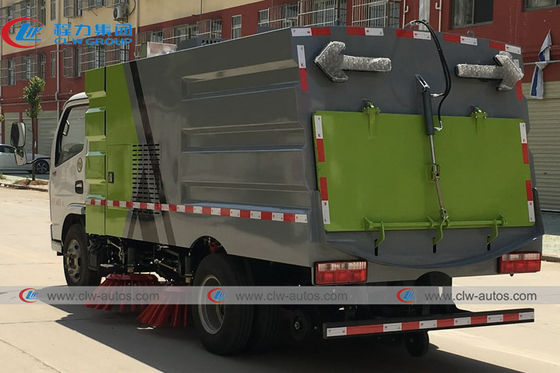

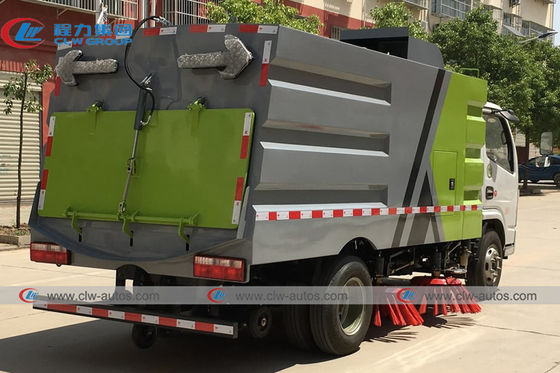

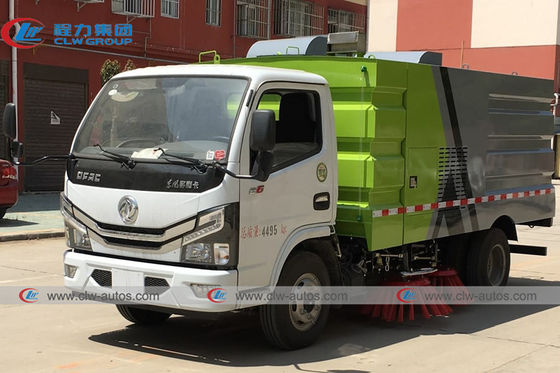

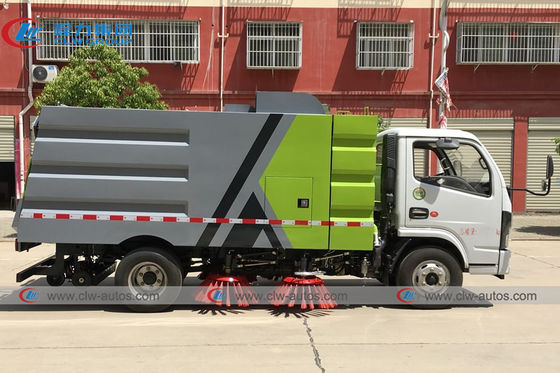

Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning

Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning
Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning

Büyük resim :  Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning

Ürün ayrıntıları:

Menşe yeri: Suizhou, Hubei, Çin
Marka adı: CLW
Sertifika: CCC, ISO9001, BV, SGS
Model numarası: CLW20210813

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 birim
Fiyat: Negotiated
Ambalaj bilgileri: Teslimattan önce çıplak mumlu
Teslim süresi: 35-40 İş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 500 adet
Detaylı ürün tanımı
Ürün adı: Yol Süpürme Aracı, Yüksek Basınçlı Yol Yıkama Kamyon Şasi Markası: JMC, DONGFENG, HOWO, FAW diğer Çin markası
Çöp Kovası Kapasitesi: 5CBM, 5000Litre Gövde tipi: Vakumlu Süpürücü Süpürme Süpürme Emme
Sulama tankı: 4CBM, 4000Litre Kamyon Tipi: Su Dua Süpürgesi Tankı, Sokak Temizliği
Sürücü tipi: Sağdan Direksiyon, Soldan Direksiyon Sürücü modeli: 4X2, 6 Tekerlekli. 6X4, 10 Tekerlekli
Temiz Su Deposu: 4m3, 5m3, 4000 litre. 5 metreküp Şartname: 6000L, 8000L, 10000L, küçük boyutlar
Satış sonrası servis sağlandı: Video teknik desteği,Yurtdışında hizmet verecek mühendisler mevcut,Çevrimiçi destek,Saha bakım ve on Garanti: 1 Yıl, 12 Ay
Anahtar kelime: Yol Süpürme Aracı, yol/elektrikli süpürücü, yol temizleme aracı Uygulama: Sokak Temizliği, Havaalanı, Dış Mekan, Yolu Süpürme
Güç: 130 beygir Temizleme Genişliği: 3.4M,1600mm
MOTOR: 37kw, Cummins Dizel, 95hp, elektrikli, 120hp Tip: Mekanik Süpürücü, Vakumlu Emme, mekanik süpürücü ve Vakumlu Emme, fırçalar, Su Yağmurlama Sistemiyle
Vurgulamak:

Dongfeng Road Sweeper Truck 5M3

,

5cbm Dust Collection Road Sweeper Truck

Dongfeng 4x2 5cbm road Waste cleaning truck 5M3 Dust collection Truck



Features

1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability,
2. each side of the broom or brush can work at the same time, or work independently on each side,
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.



  • It is a new type of high-efficiency sweeping equipment integrating road sweeping, garbage recycling and transportation.
  • It can be widely used in road highways, municipal and airport roads, urban residential areas, parks and other roads.
  • Pavement sweepers not only clean trash, but also dust and purify the air medium on the road
  • Ensures the beauty of the road, maintains the sanitation of the environment, but also maintains the good working conditions of the road surface and prevents traffic accidents. The occurrence and further extend the life of the road.



Specification :



Model YZR5080TSLE
Overall dimensions 6200×2000×2590mm Gross Weight (kg) 8275
Wheelbase (mm) 3308 Curb Weight (kg) 3900
Front Track (mm) 1740 Approach Angle 20
Rear Track (mm) 1610 Departure Angle 11
Number of axles 2 Front Overhang (mm) 1130
Traction system 4×2 Rear Overhang (mm) 2170
Max speed (km/h) 103 Number of Tyres 6
Front Axle Load (kg) 3300 Tyre Specification 7.5R16
Rear Axle Load (kg) 4975 Allowable Cab Passengers 2
Paint Any Color Available Fuel Diesel



Water tank volume(cbm) 4cbm Garbage tank volume(cbm) 5cbm
Max.cleaning Width(mm) 2800 Maximum Sweeping Capacity(cbm/h) 40,000
Sweep Speed (km/h) 3-25 Sweeping Efficiency 95%





Factory sence
Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning 0






ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • 12 independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • LPG/Truck Sold to 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
