2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

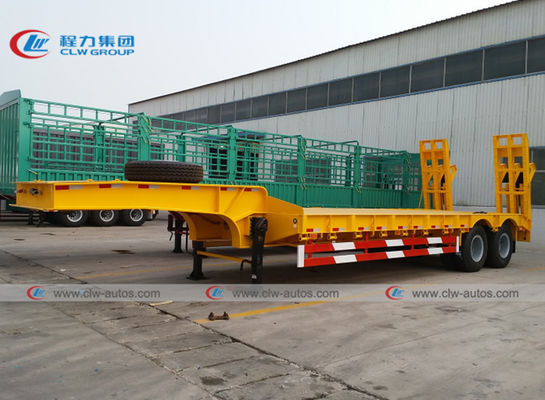

Büyük resim : 2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW20220509

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	Depozitoyu aldıktan sonra 30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Aks:	FUWA, BPW, L1, Zhengyang markası	Aks yükleme:	13 ton veya 16 ton. 20 Ton
alxe sayısı:	2 Dingil, 3 Dingil, 4 Dingil, 5 Dingil, 6 Dingil	askıya alma:	Ön: hava yastığı, Arka: mekanik süspansiyon.
Uzunluk:	13 metre, 16 metreye kadar uzatılabilir	İniş takımı:	JOST Markası veya Fuwa Markası
Kapasite:	40 ton, 50 ton, 60 ton, 80 ton.	İşlev:	inşaat makineleri, kereste kütük taşımacılığı
Ürün adı:	Lowbed, lowbed, lowbed, lowboy römork	Yük:	50 60 80 100 Ton
Yaprak yayı:	10 adet, 12 adet, 13 adet	Diğer ekipman:	Hidrolik/Mekanik Arka merdiven
Vurgulamak:	2 Axle Lowbed Lowboy Semi Trailer , Lowboy Semi Trailer 40Tons

2 Axle 40 Tons 45 Tons Low Loader Lowbed Lowboy Semi Trailer For Construction Machinery Transport

Goods Description:

Lowbed semi trailer is designed for stevedoring and transporting for Excavator , wheel loader or Other Heavy Duty Equipment.

CLW Group with many years' international business experience . We visit overseas customers many times per year . our lowbed semi trailer is designed according to the real market survy . The main points of the lowbed semi trailer ( like gooseneck , suspention , side beam ) with reinforced process . So that , the lowbed trailer could run well for the final user.

Features:

1. Different length available.

2. Gooseneck type: hydraulic gooseneck, detatchable gooseneck, radial gooseneck etc.

3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.

3. Line lowbed available.

4. Platform extendable, super low platform availale.

5. Twist lock available.

6. Fence available.

Parameters:

Dimension and Weight
Overall Dimension(mm)	13000x3000x1650mm
Working Deck Dimension(mm)	9000x3000x1350mm
Platform thickness(mm)	4mm
Main Beam	"H"main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase	7,650mm+1,310mm+1,310mm
Payload	60,000kg
Tare weight	9,000kg
G.V.W.R.	69,000kg
Function	To transport bulk goods or heavy equipment like loader or excavator
Running System
Axle	13Ton, ZY brand optional FUWA brand, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	1100R20, 12 pcs Taitong brand
Rim	8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Common Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Traction/King Pin	2" and 3.5" removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear	Zhenhua brand 28ton
Accessories:
Tool box	1pcs, One crank and one shaft head wrench
Ramp	Heavy duty trailer ramp
Spare wheel carriers	2 pcs
bumper	Rear bumper
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core electric cable protected by PVC conduit on main frame
Paint	Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed

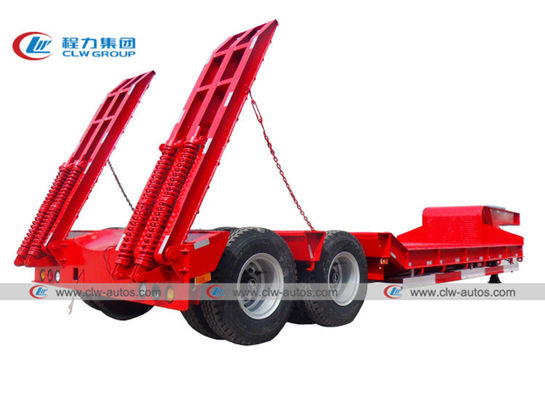

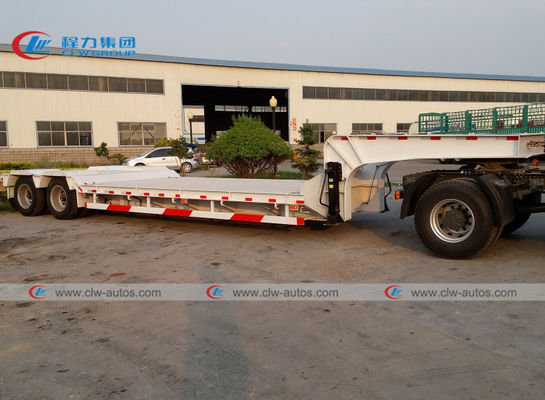

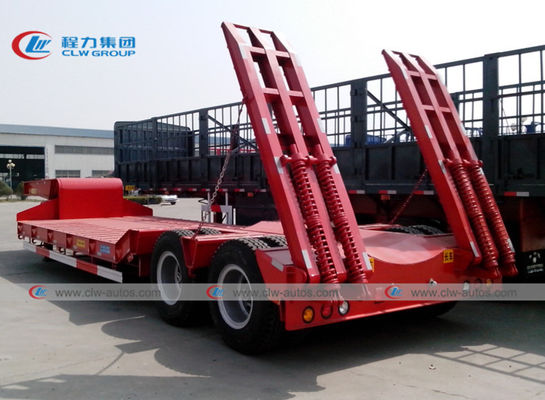

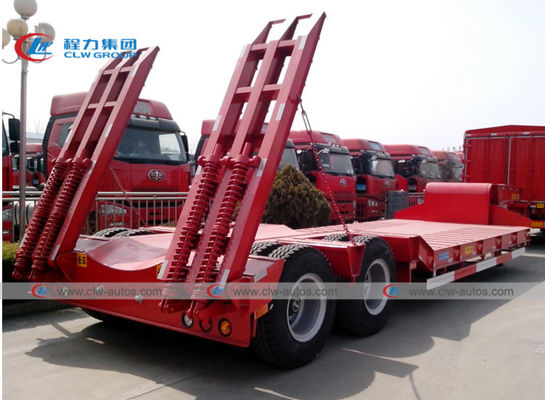

More pictures:

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine 0

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine 1

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine 2

Packed for delivery:

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine 3

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine 4

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine 5

2 Axle Lowbed Lowboy Semi Trailer 40 Tons 45 Tons For Construction Machine 6
