Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine

Büyük resim : Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW20220510

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	Depozitoyu aldıktan sonra 30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Aks:	FUWA, BPW, L1, Zhengyang Çin ünlü markası	Aks yükleme:	13 ton veya 16 ton. 20 Ton
alxe sayısı:	2 Dingil, 3 Dingil, 4 Dingil, 5 Dingil, 6 Dingil	askıya alma:	Almanya Tipi Yaprak yaylı mekanik süspansiyon
güverte uzunluğu:	13 metre veya uzatılabilir	İniş takımı:	JOST Markası veya Fuwa Markası
Yükleme kapasitesi:	40 ton, 50 ton, 60 ton, 80 ton. 100 Ton	İşlev:	inşaat makineleri, kereste kütük taşımacılığı
Ürün adı:	Lowbed, low bed, low loader, lowboy treyler, Low boy treyler	Yük:	50 60 80 100 Ton
Yaprak yayı:	10 adet, 12 adet, 13 adet	Diğer ekipman:	Hidrolik/Mekanik Arka merdiven
Vurgulamak:	Lowbed Semi Trailer 60Tons , 3 Axle Lowboy Lowbed Semi Trailer

Heavy Duty 3 Axle 60 Tons 80 Tons Low Bed Lowboy Lowbed Semi Trailer For Excavating Machine Transport

Goods Description:

Our CLW Group, Chengli Special Automobile Co., Ltd. can provide high quality strong lowbed trailers maximize payload, and deliver strength and durability to meet the transport needs. And we serve and help transportation and logistic sector and their needs.

We adopt famous brand parts, like Wabco, German famous brand, Improve the system's reaction sensitivity and stability, More Safe.

Transport 60-80 Ton
Heavy duty suspension system.
3 units Axles, FUWA brand, also BPW axles are available
Height of the working platform

Parameters for 3 axle/4 axle 60 Tons 80 Tons Low bed Lowboy Lowbed Semi Trailer for excavating machine Transport:

Tare Weight	10t
Loading Weight	60t
Dimension(mm)	platform length:7620mm, height is 635mm, traction height:1270mm
Main Beam	The height of the beam is 405 mm, upper flange 20 mm,down flange is 20 mm,middle flange is 12 mm, Material is Q 345B Steel
Cross member	12#C type or AB type
Side rail	380# "I" type, and equipped with the flip small ladder.
Platform	Q 235, checkered plate, 5 mm.
Gooseneck	engine system mounted inside gooseneck (easy to operate and waterproof). engine 10 hp electric starter, 2GPM pump, 6" bore w/22" stroke cylinder. detatchable hydraulic gooseneck, pneumatically controlled.
Leaf Spring	90*16-10 6/8 sets, Funiu or Taiyue or other china brand
Axle	13T 3/4 pcs, BPW or FUWA or other china brand
Tyre &Wheel rim	tyre 255/70R22.5 12pcs, wheel rim 8.2522.5 *12pcs
Suspension system	Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
King pin	2" / 3.5"
Hole / lashing	12 pcs per side,24pcs in total
Hook	9pcs per side,18pcs in total
Landing legs	28 T total Lifting capacity and 50 T static capacity,two speeds
Brake system	Brand: Weboco Type: Dual line braking system Brake Air chamber: 6 in total, T30/304 + T302 Air tank: 40L*2 unit ABS: none ABS: chooseable.
Electric system	24V LED light waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc.

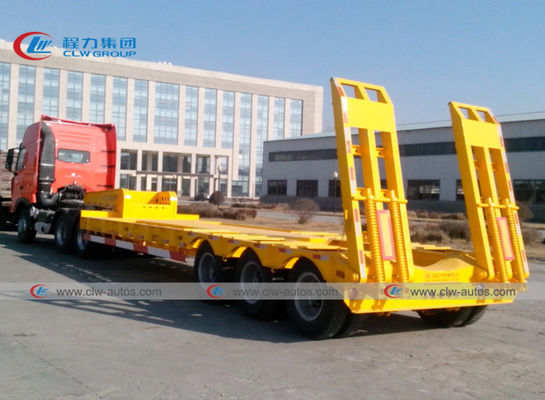

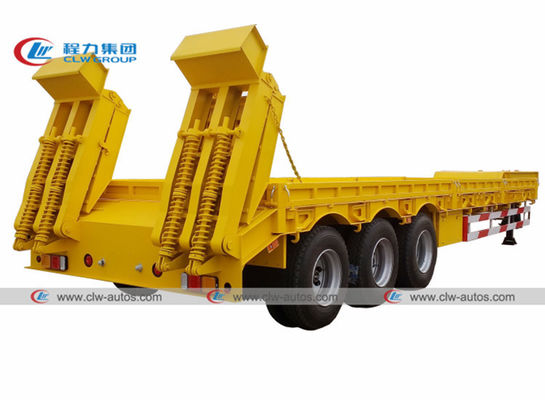

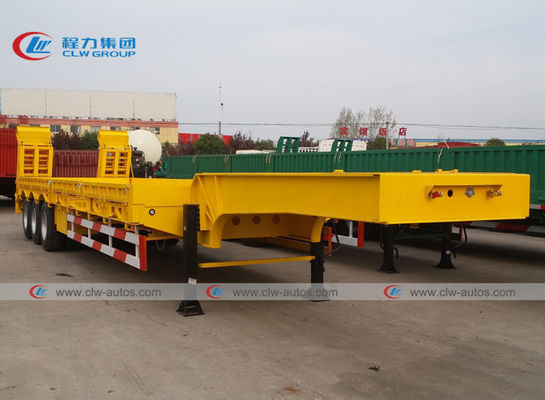

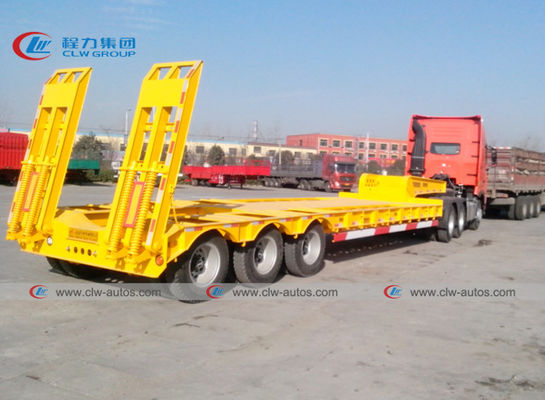

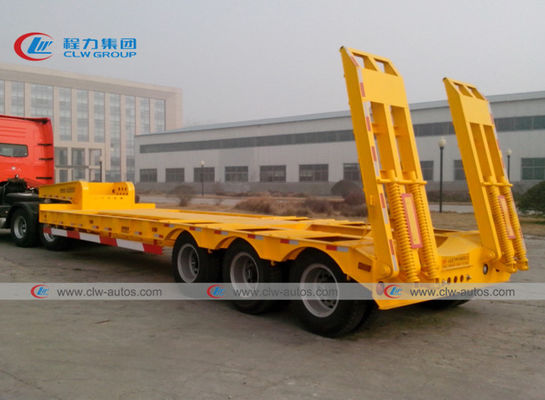

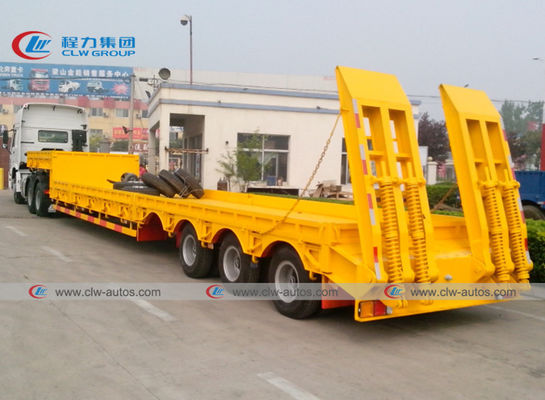

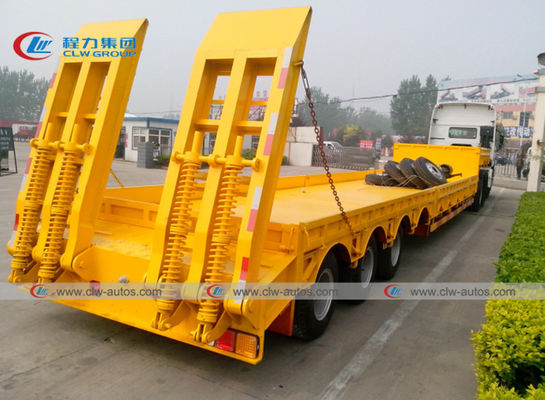

More pictures for Heavy Duty 3 Axle 60 Tons 80 Tons Low bed Lowboy Lowbed Semi Trailer for excavating machine Transport :

Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine 0

Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine 1

Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine 3

Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine 4

Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine 5

Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine 6

Heavy Duty 3 Axle Lowboy Lowbed Semi Trailer 60 Tons 80 Tons For Excavating Machine 7

1. The series of low bed trailers have flat-plate, concave beam and exposed tire structures, and the longitudinal beams are straight or gooseneck. The frame is stepped and the longitudinal beam section is I-shaped. It has the characteristics of high rigidity and high strength.

2. The main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.

3. The electrical system of a lowbed trailer is composed of seven-core sockets, cables, gas lines, various lamps, etc. It is used for lighting, safety warning, and air supply for brakes. Generally, if you look at the regularity of electrical wiring, you basically know how the quality of this heavy transport trailer.

4. The support device of the semi-trailer is mainly used to support the low flatbed trailer when it is detached, and is composed of legs and connecting brackets.

5. The low bed trailer for sale protection device consists of side protection and rear protection to protect pedestrians and other vehicles.

6. Other accessories on the semi-trailer include toolboxes, spare tire racks, etc. There are also some small accessories such as tight ropes and rope hooks, which are very functional accessories, which need to be selected according to their own types of goods.
