Dongfeng Stainless Steel Four Brushes Street Sweeper Truck 6cbm For Cleaning Dirt

Büyük resim : Dongfeng Stainless Steel Four Brushes Street Sweeper Truck 6cbm For Cleaning Dirt

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	CCC, ISO9001
Model numarası:	CLW20210707

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 birim
Fiyat:	Negotiated
Ambalaj bilgileri:	Teslimattan önce çıplak mumlu
Teslim süresi:	35-40 İş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Ürün adı:	Yol Süpürme Aracı, Vakumlu Sokak temizliği	Kamyon Şasi Markası:	DONGFENG, HOWO, ISUZU diğer Çin markası
Çöp Kovası Kapasitesi:	4 metreküp/4000 litre/4m3	Gövde tipi:	Vakumlu Süpürücü Süpürme Süpürme Emme
Su Kabı:	2 metreküp/2000 litre/2m3	Kamyon Tipi:	Su Dua Süpürgesi Tankı
Sürücü tipi:	LHD	Sürücü modeli:	4X2, 6 Tekerlekli 4*2
Şartname:	Küçük boyut	Konteyner malzemesi:	Paslanmaz Çelik
Fırçalamak:	Her Tarafta 2 Adet 4 Fırça	Logo ve boyama:	Müşterinin gereksinimlerine göre
Vurgulamak:	Dongfeng Four Brushes Street Sweeper Truck , Stainless Steel Street Sweeper Truck 6cbm

Dongfeng 6cbm Stainless Steel Four Brushes Street Sweeper Truck For Clearing Dirt And Debris Off Paved Surfaces

Main specifications:

1. Single row cab with 2 passengers
2. Fast 6DS60T-D gear box with manual operation
3. 75R17.5 tubeless tire
4. Cummins engine 125HP
5. 6cbm loading capacity

Product advantages:
1- All function contained in 1 control panel in cabin.
2- It is equipped with hydraulic controlled brush with automatic retreating system in order to avoid collosion.
3- It Install floating suction pan to adjust different road height.
4- The garbage bin is made of stainless steel with a filter plate inside.
5- The cleaning structure is center 4 brush and rear suction cup.
6- It can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel according to customer's requirements.

Product descriptions:

1. Chassis: Dongfeng
2. Engine: Cummins 125hp
3. Tank material: stainless steel
4. Capacity of tank: 4cbm dust tank and 2cbm water tank
5. Operation system: hydraulic control loading & unloading
6. Operation way: Automatic Key Control & Hydraulic Handle Control

Vehicle name	Road sweeper truck		Condition	New condition/Left hand drive/4x2
Cab	single row,with two seat,with A/C		Overall dimension (mm)	5995×2150×2350
Curb weight (kg)	5630		Wheel base (mm)	3308
Engine	Model	Cummins	Horse power(hp)	125
	Type	Diesel	Displacement(ml)	3347
Performance	Max. vehicle speed (km/h)	95	Running angle(°)	Approach angle	19
	F/R overhang(mm)	1085/1430		Departure angle	14
	Emission standard	Euro 4	Drive type	4X2
Description of gearbox	Manual, 6 forward &1 reverse		Steering type	LHD,power steering
Clutch	Diaphragm spring clutch		Brake system	Air brake system
Specification of tyre	75R17.5		Number of tires	6+1
Frame	Stamping riveted structure		Number of leaf spring	7/4+5
Max.grade ability	30%		Min. turning diameter	18m
Brake distance	≤10m		Min.ground clearance	250mm
Auxiliary engine model	B140 33		Power of auxiliary engine	77HP
Water tank	Capacity 5000L,made of 3mm stainless steel		Dust tank	Capacity 5000L,made of 3mm stainless steel
High pressure washing	Washing speed		3~20 km/h
	Washing width		3.5m
	Water pressure		12 MPa
	Water pump flux		115 L/min
Suction and sweeping	Cleaning efficiency		≥95%
	Suction and sweeping width		3.5m
	Max.cleaning capacity		60000m2/h
	Running speed		3~20 km/h
Hydraulic system	Hydraulic pressure		16 MPa
	Hydraulic oil capacity		60 L
High pressure water system	Water valve type		Hydraulic high pressure ball valve
	Water valve pressure		7 MPa
	Nozzle type		High pressure washing type
	Water filter		Strainer mesh
	High pressure washing reel		20m
Dish brushes	Type		2 pcs at middle,driven by hydraulic motor,revolution is adjustable,controlled individually,automatic avoidance
	Diameter		850 mm
	Speed		High 110r/min, middle 80r/min,low 50r/min
	Angle		Forth tilt:4-6°, outward tilt:4-7°

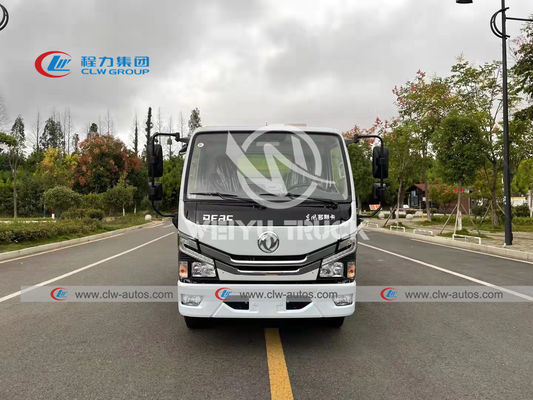

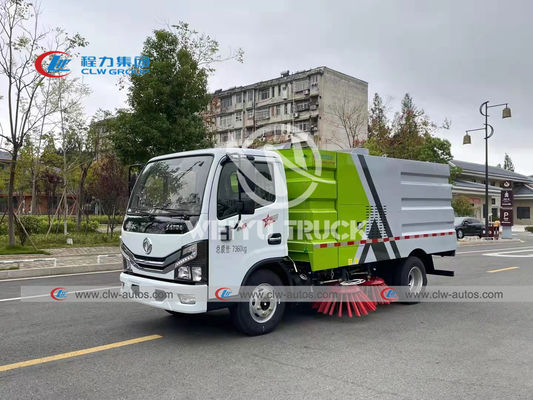

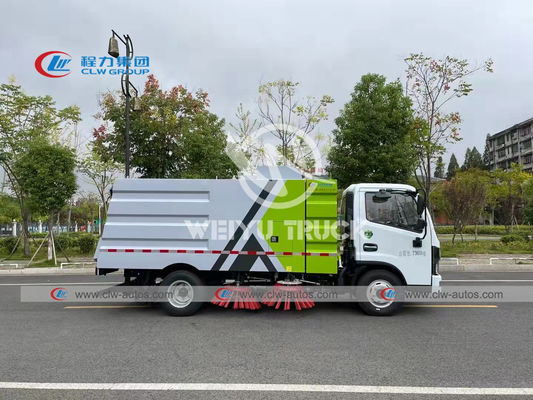

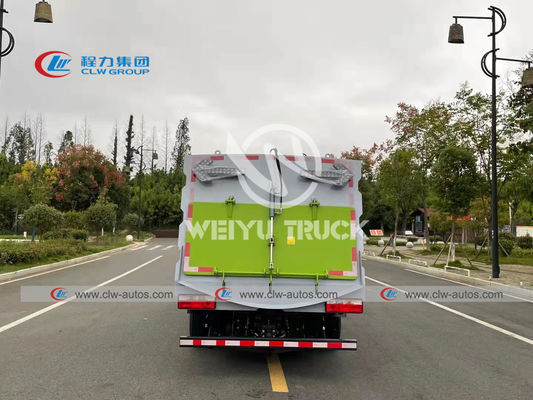

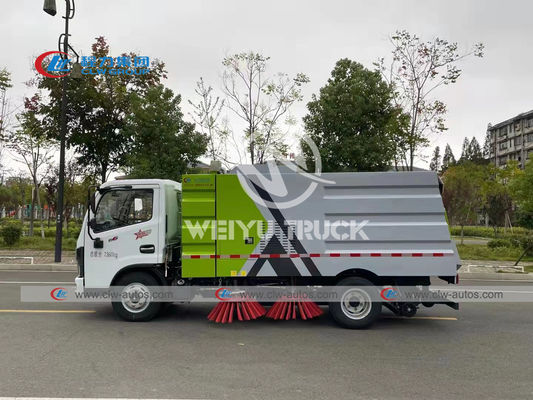

Reference pictures

Dongfeng Stainless Steel Four Brushes Street Sweeper Truck 6cbm For Cleaning Dirt 0

Our Factory

Dongfeng Stainless Steel Four Brushes Street Sweeper Truck 6cbm For Cleaning Dirt 1
