FAW 4x2 6 Wheels RHD 5-6 Units Cars Hauling Transporter Car Hauler Truck
Goods Description:
1. A car hauler truck is a commercial truck that is equipped to tow a specialized car-hauling trailer.
2. Car carrier / Hauler trailer, known variously as a car-carrying trailer, car hauler, auto transport trailer, etc., is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.
3. Modern car carrier / Hauler trailers can be open or enclosed. Most commercial trailers have built-in ramps for loading and off-loading cars, as well as power hydraulics to raise and lower ramps for stand-alone accessibility.
4. Any commercial truck that is equipped to receive either a high mount or stinger car trailer can be used to haul cars.
5. These trucks have powerful diesel engines that output anywhere from 400-550 horsepower and are capable of hauling up to 10 cars in a single load.
6. CLW Group. Chengli Special Automobile Co., Ltd specializes in producing commercial car haulers that are capable of transporting up to 10 cars in each load.
Specification for FAW 4x2 6 Wheels RHD 5-6 Units Cars Hauling Transport Car Hauler Truck:
| |
Truck Parameters |
| Overall Dimension |
12000x2550x3900 mm |
| Driving Model |
Left hand drive |
| Gross Vehicle Weight |
18000 kg |
| Curb Weight |
8870kg |
| Payload |
10130 kg |
| Wheel Base |
7100 mm |
| Front Axle capacity |
6500kg |
| Rear Axle capacity |
11500kg |
| Engine |
Dachai engine, CA6DH1-22E5, Diesel engine |
| Engine horsepower |
220 HP/162KW, EURO V |
| Displacement |
5700mL (Diesel) |
| Gearbox |
FAST8JS85TC Manual control, 8 forward& 1 reverse |
| Cabin |
FAW J6L Standard cabin, single row with A/C |
| Fuel Tank |
300L |
| Tire |
10.00R20 (6 pc with 1 spare) |
| Other equipment |
Central locking, ABS, autonomous pneumatic drive system etc |
| Upper Equipment |
| Car Carrier: |
5-6 units Cars |
| Material: |
Low alloy high strength structural steel |
| Upper main board: |
Net Length: 12000mm, Width: 2500mm; |
| Lower main board:: |
Net Length: 9600mm; Width: 2500mm; |
| Upper and lower board adjustment: |
>=2000mm(Adjusted with hydraulic valves) |
| Lower board Ground clearance |
1000mm |
| Upper platform on the top of cabin |
Independent hydraulic lifting |
| Rear Side |
Hydraulic telescopic folding ladder |
| Hydraulic System |
Imported Brand. Total 10 units Hydraulic Oil cylinder |
Features of FAW 4x2 6 Wheels RHD 5-6 Units Cars Hauling Transport Car Hauler Truck:
1. The car transporter can be made into different lengths according to customer requirements.
2. The Car Hauler truck's frame is a welded I-beam, and the entire body adopts automatic submerged arc welding and carbon dioxide gas shielded welding.
3. After the welding is completed, shot blasting is carried out to eliminate welding stress and improve the adhesion of the paint surface, so that the quality is stable and the appearance is beautiful.
4. The The Car Hauler truck is equipped with a tool box, a spare tire rack, and a drip brake system to improve the safety of vehicle transportation.

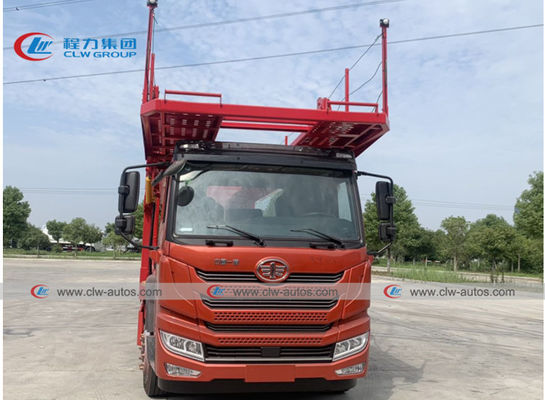

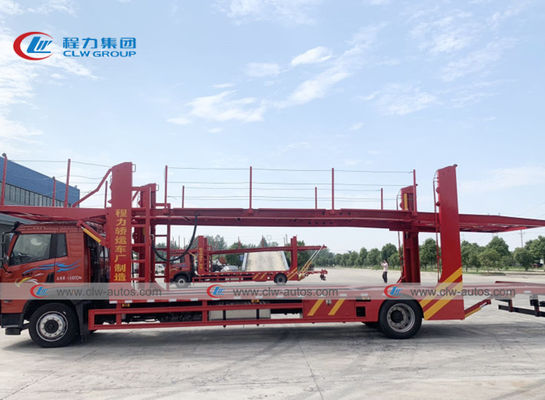

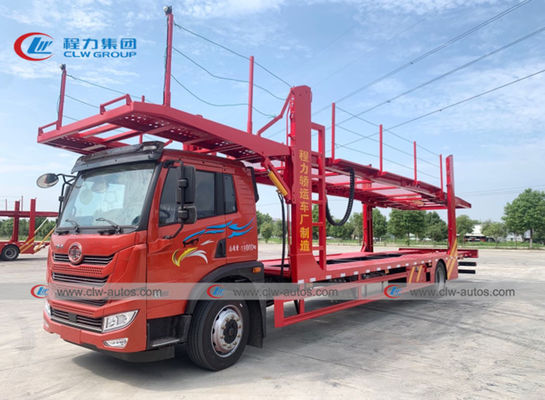

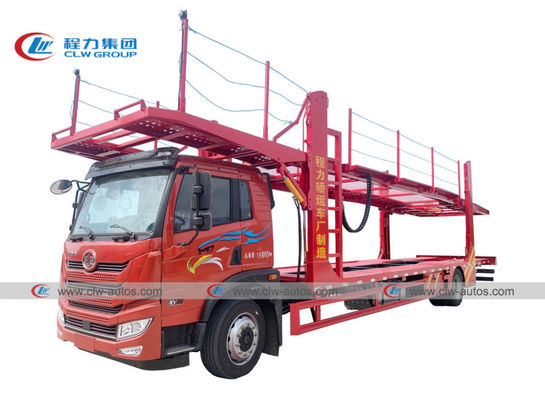

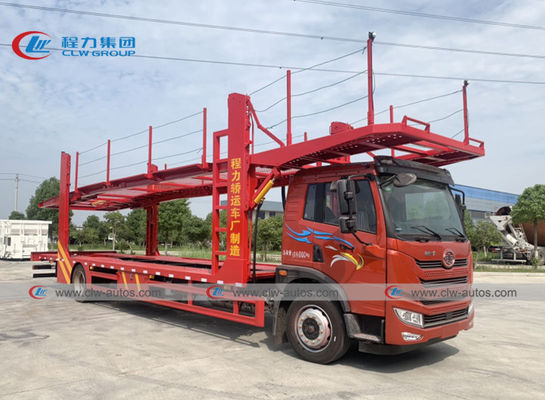

More Pictures for FAW 4x2 6 Wheels RHD 5-6 Units Cars Hauling Transport Car Hauler Truck:
Working show for FAW 4x2 6 Wheels RHD 5-6 Units Cars Hauling Transport Car Hauler Truck:
