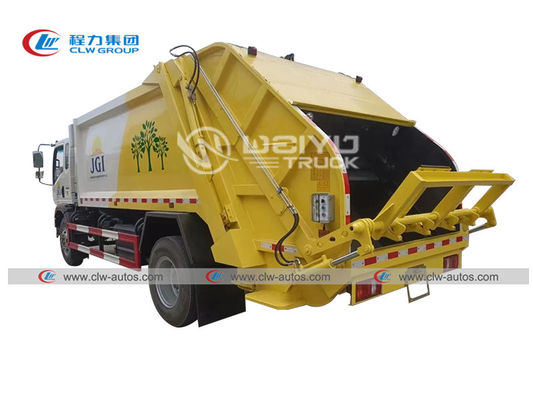

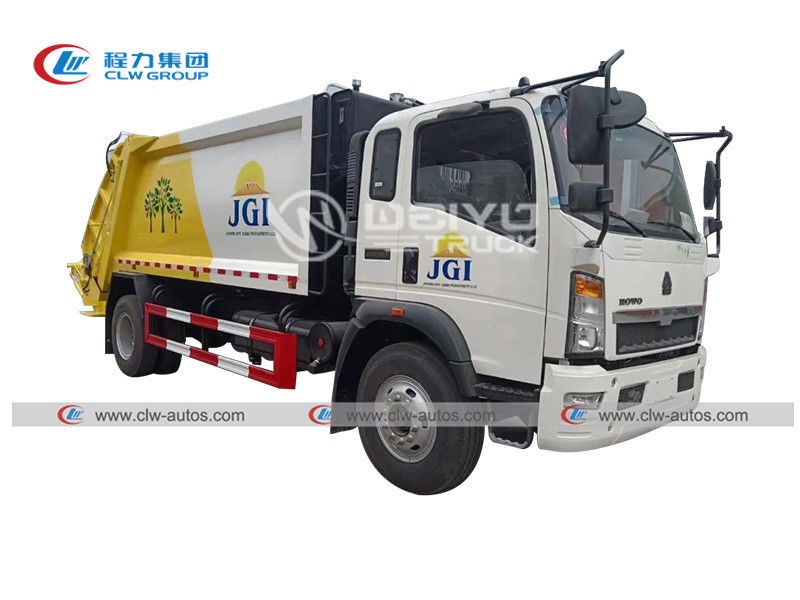

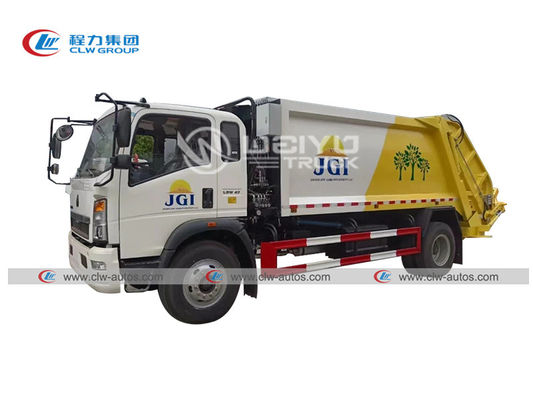

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3

Büyük resim : HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO
Model numarası:	CLW594RIR

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

marka:	Sinotruk Howo	Sürücü tekerleği:	4x2
Bileşenler:	Yükleme, Sıkıştırma, Boşaltma	Kamp Etki Oranı:	0,75 ton/kübik metreküp
İşletim Sistemi:	Biri Kabinde, Biri Kamyonun Arkasında	Amaç:	Çöp toplama atık yönetimi
Garanti:	büyük parçalar için bir yıl	LOGO&BOYAMA:	Müşterinin talebine göre
operasyon videosu:	Evet, seçim için Çoklu dil ile	Teknik destek:	ne zaman ihtiyaç duyulursa
Vurgulamak:	HOWO LHD Garbage Compactor Truck , Garbage Compactor Truck 12m3

HOWO LHD 6wheelers 12m3 Good Sealing Rear Load Garbage Compactor Truck Compression Transportation Garb

Product Description:

1. Overall dimension: 860025003250mm
2. Cabin: Left Hand Driving, one and half row, 3 Passengers Allowed, with Air Conditioner
3. Engine: YC4E160-33,160hp diesel engine
4. Grabge bin: 12cbm tank volum with 5mm carbon steel material
5. Garbage Compact Ratio: up to 0.75tonnes/cbm
6. Operation system: electrical Control Panel, hand operation and cab operation
7. Single cycle time: less than 18 seconds

Product advantages:

Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.

Types of compactor garbage truck:

All-sealing trash hopper
Triangle trash hopper
Swing arm trash hopper
Hanging bucket trash hopper

Specifications of 12cbm Garbage Compactor Truck

12cbm Garbage Compactor Truck
Overall Dimension	860025003250mm	Gross Vehicle Weight		18000 kg
Curb Weight	10500kg	Loading Weight		7370kg
Wheel Base	4700mm	Front / Rear Axle		3200/8000kg
Cabin	Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio
Engine model	Dissel
Engine horsepower	160HP, EURO3
Max Driving Speed	90 km/h
Gear Box	6 Forward,1 Reverse, manual control
Tire	8.25R20(6 pieces with one spare)
Garbage Bin	Capacity		12CBM
	Material		5mm Carbon Steel for Garbage Bin Body
	Design		Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	0.75tonns/cbm
Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with high quality dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 0

Diagram

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 1

Various types of fliping mechanism:

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 2

Successful cases:

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 3

Our factory:

HOWO LHD Rear Load Garbage Compactor Truck 6wheelers 12m3 4

CLW group,which was appointed by the Development and Reform Committee of China is a professional manufacturer and factory who have been dealing in different kinds of special vehicles, trailers and construction machineries in central China since 2004.

Our advantages:

Certificate: ASM, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
We can handle production of bulk order water trucks of tender and government purchase in required time
