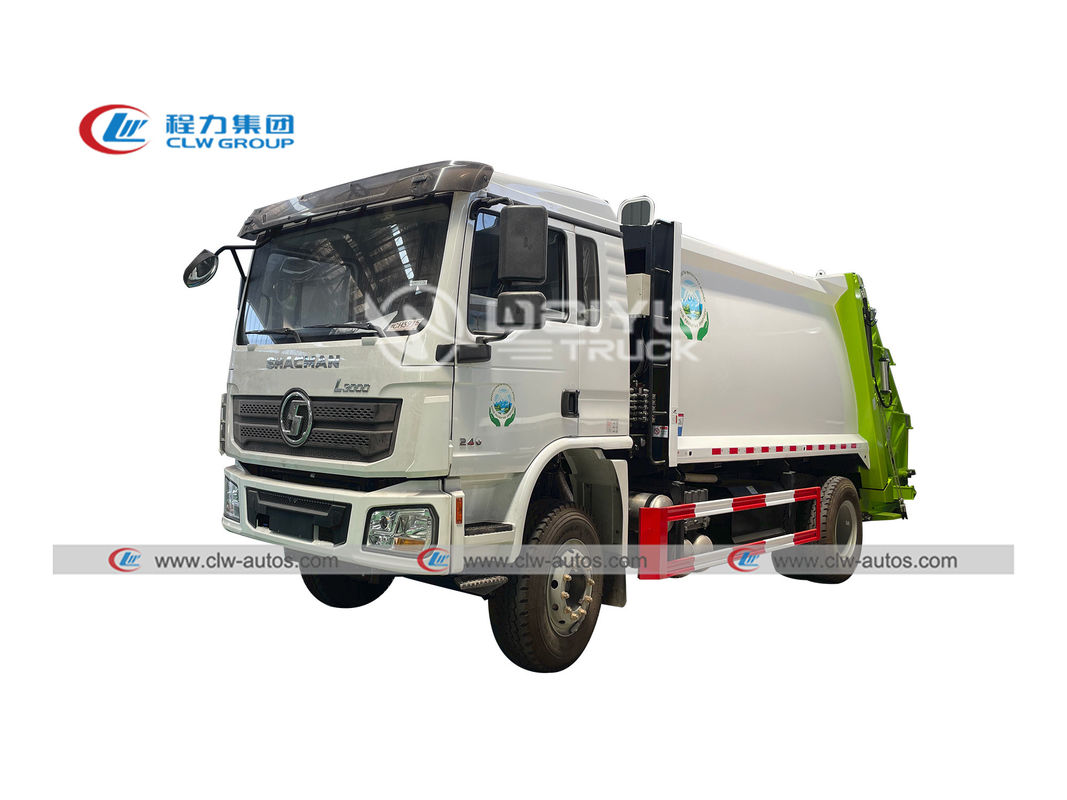

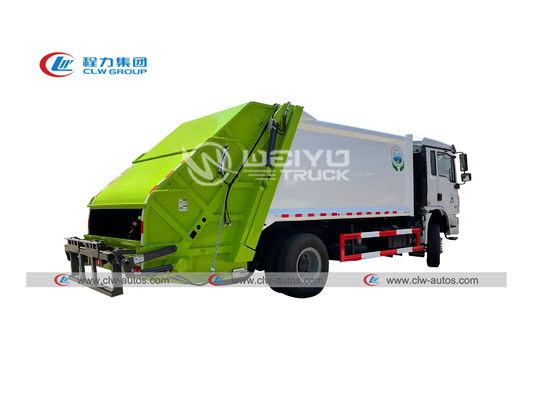

Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck

Büyük resim : Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,CE
Model numarası:	CLW51048DD

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	20-30 gün
Ödeme koşulları:	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini:	Aylık 500Birim

İletişim

Detaylı ürün tanımı

marka:	HOWO,FAW,ISUZU,Dongfeng,FOTON, JAC, JMC, SHACMAN	Malzeme:	Yüksek yoğunluklu karbon çeliği, Q235
Kalınlık:	Yan 4mm ve Alt 5 mm	çöp kutusu boyutu:	14 metreküp, 14m3
Tekerlek tabanı:	5000mm	Beygir gücü:	240HP, WEICHAI
Hidrolik pompa:	Çinli Ünlü Marka	Kontrol Sistemi:	Siemens marka işletim sistemi.
Garanti:	1 yıl	Logo:	Özelleştirilmiş boyama ve logo
operasyon videosu:	Evet	Sevkiyat:	toplu nakliye veya rulo rulo
Vurgulamak:	240HP Diesel Engine Rear Loader , 6wheelers Diesel Engine Rear Loader

Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck

Product descriptions:

Shacman chassis with high quality and good reputation
WEICHAI 240HP diesel engine match with fast 8-speed gearbox
14cbm tank volum with side4mm, bottom5mm Carbon Steel-Q345 tank material
4.8T /10T front and rear axle, good load-bearing performance
Optional different flip type like hanging bucket container, all-sealing container, swing arm container, triangle container
Bottom box and filler are made of thickened steel plate
Garbage Compact Ratio is up to 0.75tonnes/cbm

Product advantages:

Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.

SHACMAN Hydraulic Compactor Garbage Truck (14 cbm)
General	Chassis Brand	Shacman
	Overall Dimension	8890X2500X3300mm
	GVW / Kerb Weight	18000kg / 5500kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Weichai
	Power	240 HP
	Front/rear loading	4800kg/10000kg
	Emission Standard	Euro2
Chassis	Drive Type	4X2, (Left hand drive)
	Gear box	8 speed levers with 2 reverse
	Wheelbase/No. of axle	5000mm / 2
	Tire Specification	10.00R20 radial tire
	Tire Number	6 tires with 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body capacity	14cbm
	Fill Hopper capacity	0.73cbm
	Sewage tank	600 liters
	Filling work cycle time	20~25 s
	Discharge model	Horizontal Ejection
	Control system	Electrically Hydraulic control Manual hydraulic control
	Control panel	English or Your language
	All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual...
Optional	1) Back alarm and Camera can be equipped. 2) Italy mulit-valve can be choose. 3) 240L (single bin or double bin) or standard 660L, 1100L bins with bin lifter can be choose.

Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck 0

Compactor Carbage Truck Production Process

Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck 1

Successful cases

Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck 2

Our product advantages:

1. Frame structure: the waste bin adopts solid frame structure welded by reinforcing beams and steel plates.
2. Sealing treatment to eliminate secondary pollution
3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Various fliping mechanisms
