Jost 4 Axle Rear Tipping Dump Truck Trailer 50t 60tons Mine Sand Stone Gravel Loading

Büyük resim : Jost 4 Axle Rear Tipping Dump Truck Trailer 50t 60tons Mine Sand Stone Gravel Loading

Ürün ayrıntıları:

Menşe yeri:	SUIZHOU, HUBEI
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW202206254

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	Depozitoyu aldıktan sonra 30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Damper malzemesi:	Q345B, T700, HARDOX, Nm450 Aşınmaya Dayanıklı Çelik	Aks:	FUWA, BPW, L1, Zhengyang, CLW markası
Dingil Kapasitesi:	16ton	Yedek Lastik Rafı:	İki Yedek Lastik Tasarımı için Evet
Lastik özellikleri:	80r22.5, Bir Yedek Lastikle birlikte	Ön aks:	13 ton veya 16 ton, kaldırılabilir
askıya alma:	Yaprak yay veya hava yastığı	Damper gövdesi:	U şekli veya kare şekli
Silindir Markası:	Hyva Marka Hidrolik Sistem	Damper Kutusu:	Kare Şekli. U Şekli. U tipi
Vurgulamak:	Rear Tipping Dump Truck Trailer 50t , Jost 4 Axle Dump Truck Trailer , 60tons End Tipper Trailer

Jost 4 Axle 50tons/60tons Mine Sand Stone Gravel Loading Rear Tipping Dump Truck Trailer End Tipper Trailer

Product descriptions:
1. 11000X2500X3700mm overall dimensions
2. HYVA brand cylinder
3. 4 axle L1 brand
4. Equipped with Jost landing legs
5. Q345 plate Q235 box carbon steel material
6. Equipped with LED light

Product advantages:
1. It used for transporting stone, soil, sand, steel material and different kinds of cargo.
2. 24hours after sales service
3. It is optional for BPW, FUWA, L1 brand axle.
4. It's equipped with JOST landing leg with good loading capacity.
5. All products can be produced as per customer's request if there any specifized requirements.

Product descriptions:

carbon steel U type dump Semi trailer
Loading capacity	50T	Volume	45cbm
Box inner size	9200X2400X2000	Outer Size	10000x2500x3800mm
Chassis (I beam)	Top flange plate	Material and thickness	Q345B 16mm
	Bottom flange plate	Material and thickness	Q345B 18mm
	Middle flange plate	Material	Q345
		Thickness	10mm
		Height	530mm
Box	Thickness	6mm
	Height	2000mm
	Material	Q235
Floor	Material	Q235
	Thickness	8 mm
	Floor type	Plate
Running mechanism Running mechanism	Cylinder	HYVA 214-5-7130
	Axle	Brand	L1
		Type	16t
		Number	4pcs
	Rim	Type	8.5
	Rim	Number	16pcs
	Tire	Brand	triangle brand
		Type	80R22.5
		Number	16pcs
	Suspension	Mechanical suspension
	Spring leaf	Leaf width	90mm
		Leaf thickness	16mm
		Layer/set	10 Layer
	King pin	Type	Bolts type
	King pin	Diameter	2 inch
	Brake system	Air tank	45L air tanks
		Brake chamber	4 double spring brake chamber
		ABS	NO
	Landing gear	Brand	JOST
	Landing gear	Type	A300 two speed
Accessories	Spare tire carrier	One
	Light	LED light
	Voltage	24v
	Receptacle	7 ways(7wire harness)and quick change type
	Tool box	One piece
	Painting	Polyurethane paint&anti-rust primer&sand blasting
Tools for trailer	Head wrench ;spare wheel crank ;

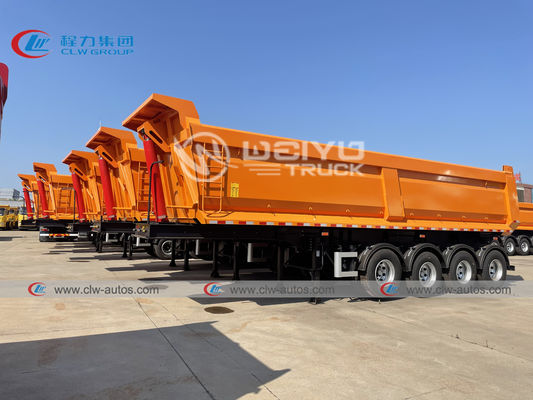

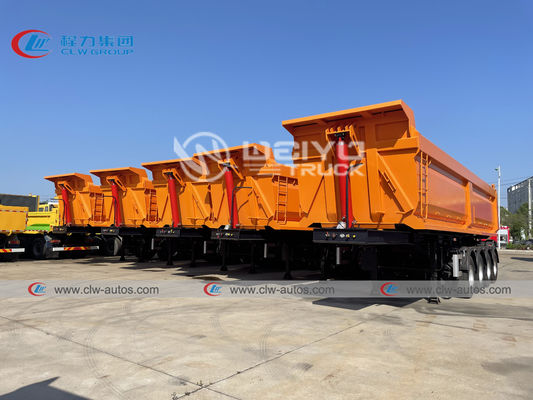

Detailed photos:

Our advantages:

Certificate: ASM, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
We can handle production of bulk order water trucks of tender and government purchase in required time.
