4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T

Büyük resim : 4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Hubei, Çin
Marka adı:	CLW
Sertifika:	ISO9001, CCC, BV, SGS
Model numarası:	CLW20220625

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	Negotiated
Ambalaj bilgileri:	Sevkiyattan Önce Çıplak veya Mumlu
Teslim süresi:	Depozitoyu aldıktan sonra 30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 500 adet

İletişim

Detaylı ürün tanımı

Aks:	CTC 15Ton aks, 8 adet Çin ünlü markası	Aks yükleme:	15 ton veya 16 ton. 20 Ton
alxe sayısı:	4 Aks, 6 aks, 8 aks, 10 aks,	askıya alma:	Ağır Sert Tip Yaprak yaylı mekanik süspansiyon
güverte uzunluğu:	6 metre, 7 metre 8 metre platform veya uzatılabilir	İniş takımı:	JOST Markası veya Fuwa Markası
Yükleme kapasitesi:	80 ton. 100Ton 120T, 140ton, 150ton, 180ton, 200Ton	İşlev:	inşaat makineleri, Ekskavatör Taşımacılığı
Ürün adı:	Lowbed, low bed, low loader, lowboy treyler, Low boy treyler	Yük:	60-80 Ton, 80-120 ton, 120-160 ton, 160-200 ton
Lastik No.:	16 adet, 24 adet, 32 adet veya 40 adet	Diğer ekipman:	Hidrolik/Mekanik Arka merdiven
Vurgulamak:	160T Low Bed Semi Trailer , Gooseneck Low Bed Semi Trailer

4 Lines 8 Axles Gooseneck 150 Tons 160T Hydraulic Extendable Lowboy Low Loader Lowbed Low Bed Semi Trailer

Goods Description:

Our CLW Group, Chengli Special Automobile Co., Ltd. can provide high quality strong lowbed trailers maximize payload, and deliver strength and durability to meet the transport needs. And we serve and help transportation and logistic sector and their needs.

Features - 120-150 Tons 4 lines 8 axles Lowbed Trailer.

-CLW Group products have advanced technology and reliable performance.
-All parts and components use the products of well-known domestic and foreign manufacturers. They are purchased, inspected and used in strict accordance with the requirements of the quality system documents to ensure that the vehicle performance is good.
-Suitable for transitional transportation of roads, railways, waterways and ports, bulk cargo transportation of mineral resources and transportation of special materials.
-CLW Group adopts advanced manufacturing technology, automatic submerged arc welding of vertical beams, and sandblasting of the overall frame to effectively eliminate welding stress, using advanced fixtures and technology throughout the production process to ensure the formation and assembly accuracy of the work Pieces.

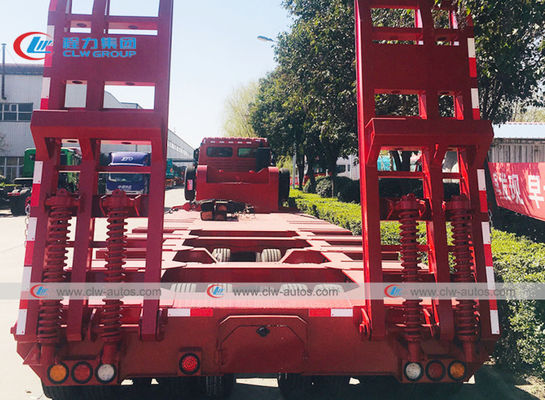

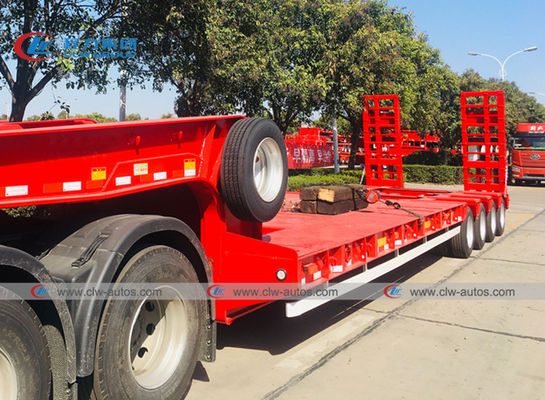

More pictures for Heavy Duty Low Loader Lowboy Lowbed Semi Trailer for Excavators and Large Equipment

Transport:

4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T 0

4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T 1

Technical Drawing of 4 Lines 8 Axles 150Tons Lowbed Semi Trailer:

4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T 6

We can offer and disign different types of Lowbe semi trailers:

4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T 7

Parameters for 4 Lines 8 Axles Gooseneck 150 tons 160T Hydraulic Extendable Lowboy Low Loader Lowbed

Low Bed Semi Trailer for Excavators and Large Equipment Transport:

Rated Load	100T-150T
Tare Weight	18000 kg
Wheel Base	12880+1220, 12380+1220(mm)
TyreSpecifications	8.25R20
No. Of the Tyres	32
Axle Brand	FUWA (BPW optional)
No. Of the Axles	4 lines with 8 axles
Axle-load	25000 kg per axle row
King Pin	50#/90#
Landing Leg	28ton
Suspension	rigid suspension
Departure Angle	20
Front/Rear Overhang	1250 mm
Outside Dimensions (LxWxH)	16000, 15500X3000, 2800X3150, 1710 (mm)
Material of the Main Beam	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system/ABS
Electrical	24V 7 ways(7 wire harness)
Usage	Is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.
Other Specifications	The cargo' s carrying platform is 910mm high from the ground, and the overall height is 1710mm without the ladders. The height of rear guard settings is 420mm from the ground.
Other Descriptions	The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.

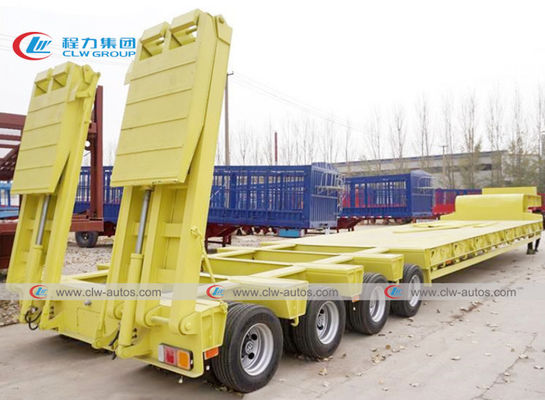

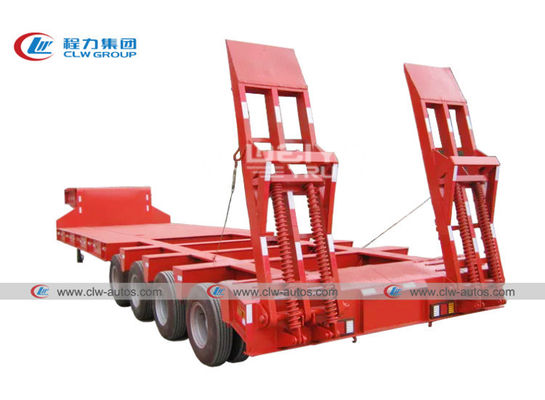

Delivery Pictures for Super Heavy Duty Lowbed Semitrailer:

4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T 8

4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T 9

Application Pictures for Super Heavy Duty 4 Lines 8 Axles 150T Lowbed Semitrailer:

4 Lines 8 Axles Gooseneck Hydraulic Extendable Low Bed Semi Trailer 150 Tons 160T 11

To Make your transportation more economical, CLW group makes your transportation more

economical by manufacturing and providing various types of truck trailers, trailer parts and

complete system solutions.
