Dongfeng Mini 6 CBM Freshgoods Refrigerated Box Truck Insulation Trucks

Büyük resim : Dongfeng Mini 6 CBM Freshgoods Refrigerated Box Truck Insulation Trucks

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC, SGS, BV, ASME
Model numarası:	CLW5640

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Howo, Foton, Isuzu, JMC, vb.	kamyonet malzemesi:	İçi renkli plaka, minibüsün dışı FRP, ortası poliüretan köpük
Van Dış Kalınlığı:	1,2 mm 1,5 mm 1,8 mm 2,0 mm	Van Ara Yatak Kalınlığı:	80mm 100mm 120mm
Van İç Kalınlığı:	1,2 mm 1,5 mm 1,8 mm 2,0 mm	yükleme ağırlığı:	1-2 ton
Buzdolabı Modeli:	Thermo King, Taşıyıcı, Hanxue, Huatai, Bingli	Şasi markası:	Isuzu, Dongfeng, Foton, Howo vb.
Sürücü modeli:	4x2/6x4/8x4; Üst yapı büyüklüğüne göre	Tekerlek tabanı:	2400mm 2800mm 3300mm 3800mm 4500mm 4700mm 5600mm; 4300+1350 mm; 1350mm+4300+1350mm
Teslim süresi:	30-35 iş günü	Logo ve Resim:	Müşterinin isteği olarak.
Garanti:	1 yıl
Vurgulamak:	6CBM Freshgoods Refrigerated Box Truck , Dongfeng Mini Refrigerated Box Truck

Product Usage:

1. Purpose: It is used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Specification:

Car volume: 6 cubic meters,
Cargo Size: 2680×1500×1550.
Car body material: FRP is used both inside and outside.
Filled with 8cm polyurethane insulation in the middle, and patterned aluminum bottom plate.
Refrigeration temperature: -15°-0°.
Loading and unloading function: rear double doors.

Feature:

The lowest temperature can reach -25ºC;
The box is made of cold outer glass fiber reinforced plastic, which is beautiful, dirt-resistant and easy to clean.
Filled with polyurethane foam insulation in the middle, with good sealing performance,
Strictly control the temperature of the box to ensure low temperature without freezing, so as not to freeze the goods

Specification

Items	Descriptions	Specifications and Types
General	Truck Name	Dongfeng RHD mini gasoline refrigerated truck
	Drive Type	4*2 RHD,
	Payload (kg)	1-2T
	Seating person	2
	GVW (kg)	4495
	Curb Weight (kg)	2100
	Overall Dimensions (LWH) (mm)	427516201870
	Insulation van dimension(LWH)(mm)	268015501500
Engine	Engine Brand	QUANCHAI
	Fuel Type	GASOLINE
	Max output (hp/rpm)	50KW/68hp
	Emission Standard	Euro III
	Capacity (cc)	1498
Chassis	Chassis Brand	Dongfeng
	Tire Specification	175R14LT 8PR*4
	Wheelbase (mm)	2400
	Axle No.	2
	Steering Wheel	Left hand drive,
	Gear Box	5 speed gearbox, manual
	Brake	Air brake
	Air-conditioner	Original air conditioner
Upperstructure	Box Side	Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
	Box Floor	Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
	Doors	Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
	Refrigeration unit	Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5ºC to 15ºC. And the reefer can be adjusted at the driver cab.

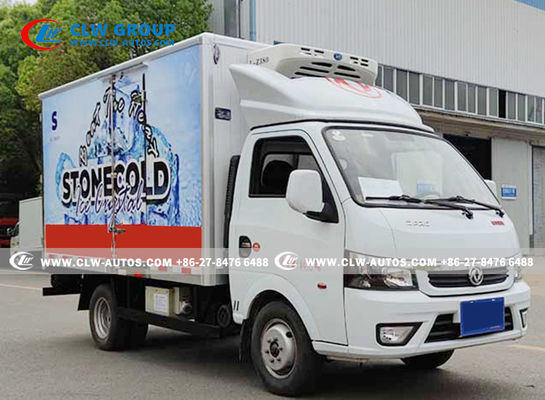

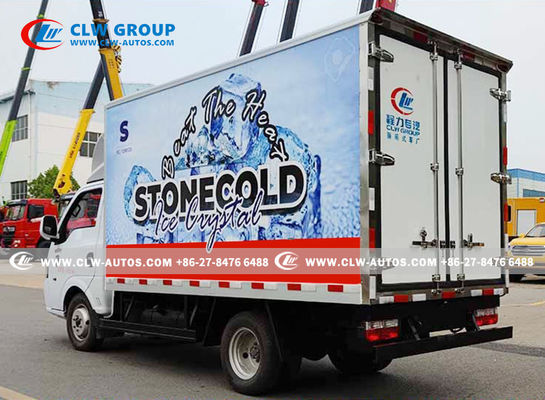

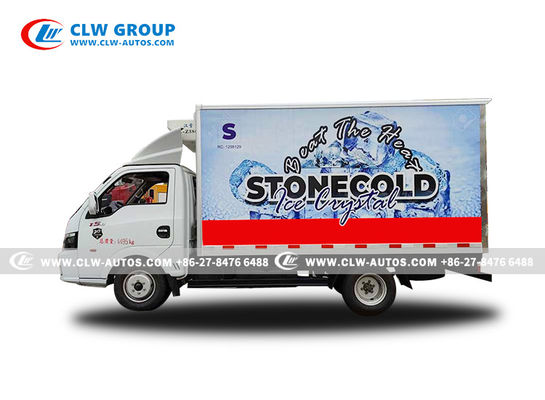

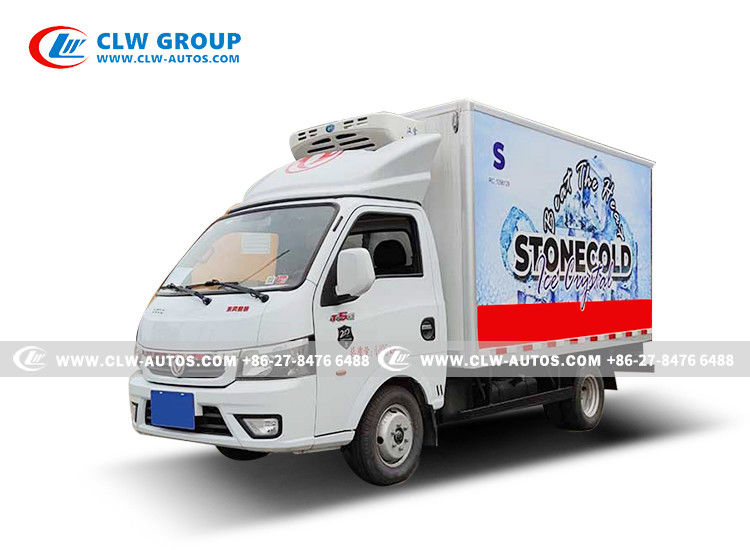

1. Product Show

Dongfeng Mini 6 CBM Freshgoods Refrigerated Box Truck Insulation Trucks 0

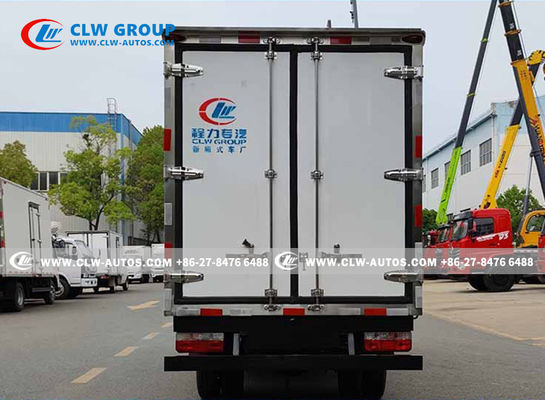

2.The rear double doors improve the efficiency of loading and unloading

Dongfeng Mini 6 CBM Freshgoods Refrigerated Box Truck Insulation Trucks 1

4.Optional structures:

Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?
A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
