Truck Chassis Main Specification:
1. Sinotruk Homan H5 Cabin, With one bed and Air conditioner.
2. Diesel Engine, YC6J220-33B, 220HP, EURO-2.
3. Steering Wheel: RHD, Right Hand Drive
4. HW95508STC Transmission/Gearbox, Manual control, 8 forward & 2 reverse
5. Front Axle, 5.5Tons Capacity, 1 pieces; Rear Axle: 13Tons
6. Fuel Tanker: 300L
7. Tire: 11.00R20
Upper Garbage Box/Garbage Bins Main Specification:
1. Garbage Box: 12cbm, 12m3, 12 cubic meters.
2. Compaction Ratio: 0.75tons/cbm. Loading Capacity: 9tons
3. Equipped With hernetic dustbin, hydraulic system and operating system.
4. Automatic compress and uninstall, sewage can be collected by the sewage tank.
5. PLC control System: famous brand operate system.
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia etc.
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.
3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.
4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.
Product specifications :
| Wheel Base |
4200 mm |
| Front Axle |
5500kg |
| Rear Axle |
13000kg |
| Engine |
YUCHAI Diesel engine YC6J220-33B |
| Engine horsepower |
220HP EURO2 |
| Displacement |
6494 mL (Diesel) |
| Rated Rotation Speed |
2500 rpm |
| Engine type |
- Six cylinder in-line vertical,
- super charge inner cooling,
- Four-stroke,
- water-cooled,
- direct injection,
|
| Gearbox |
- Manuel type
- HW95508STC ,
- 8-speed forward and 2 reverse
|
| Cabin |
- Homan spacious cabin,
- Right hand drive;
- One row and a half,
- 2 Passenger allowed,
- with A/C
|
| Tire |
11.00R20 (6 pcs with one spare) |
| Exhaust Pipe |
At front of Cabin for safety |
| Fuel box |
Aluminum alloy,300L |
| Garbage Truck Body |
| Tanker body material |
Quality high tensile Q345 carbon steel |
| Shape |
rectangular box, arc-shaped rear |
| Thickness |
Side 4mm, Bottom 5mm |
| Garbage Container Size |
12CBM |
| Filling hopper volume |
0.73 CBM |
| sewage box volume |
0.6cbm |
| Working rotation speed |
1400 r/min |
| Compaction ratio |
0.75-0.8T/m³ |
| Compacting cycle time |
24~28 s |
| Tailgate lifting time |
10~15 s |
| Tailgate lifting Angle |
85~88 ° |
| Unloading cycle time |
60~75 s |
| Oil pump displacement |
63 ml/r |
| Hydraulic oil box size |
125 L |
| System pressure |
Max. 240 bar and working pressure 180~200 bar |
| PTO operation method |
Pneumatic |
| Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |

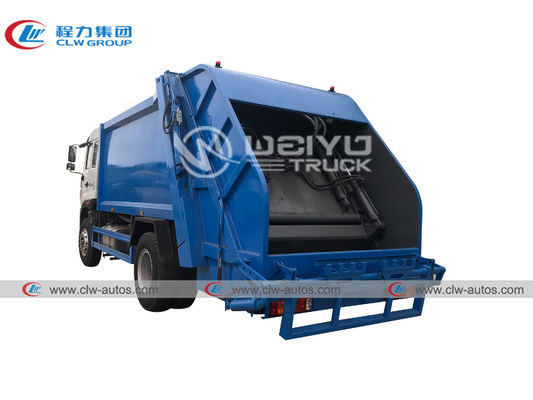

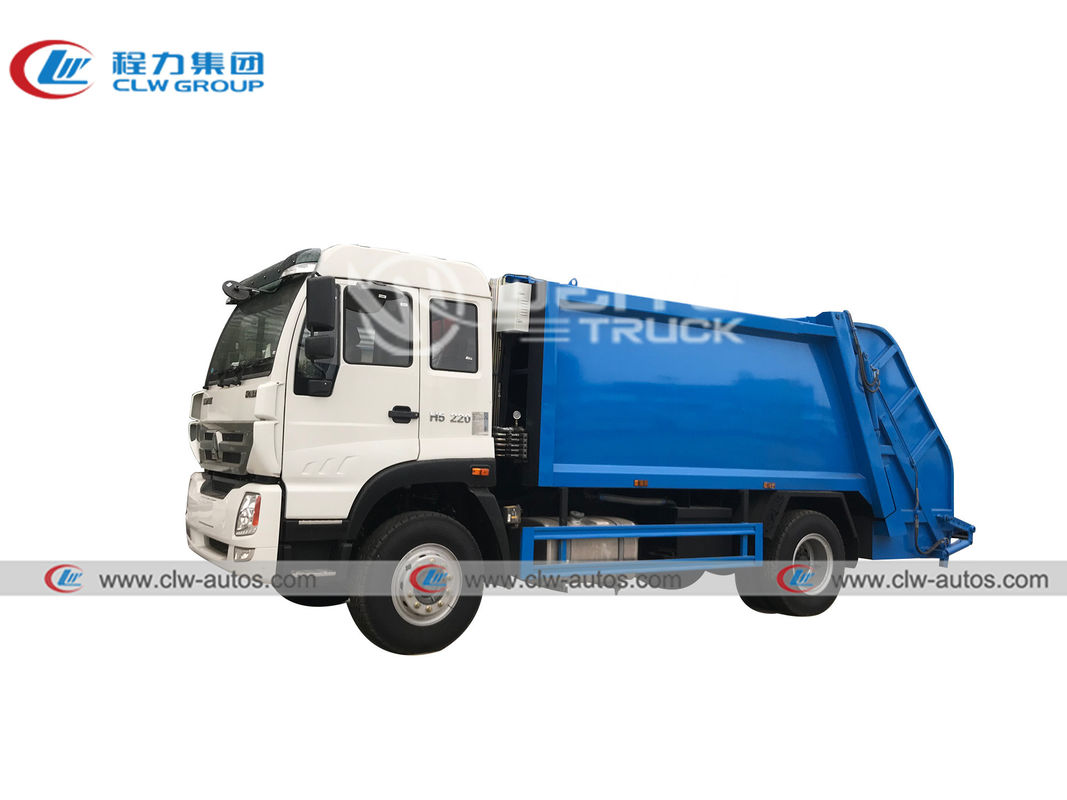

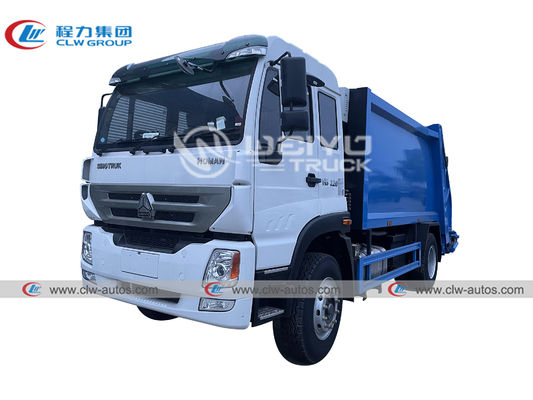

Detailed photos:
Our advantages:
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different types of trucks
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians and about 8000 staffs
- 800kinds of trucks and semi-trailers with various functions
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- More than 100,000 trucks and semi-trailers annually.
- Truck Sold to 90 countries
- Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
- We can handle production of bulk order water trucks of tender and government purchase in required time
